Toilet cubicle partition adjustable leg Otis

Número de producto: 7740550802512

Descripción

The variable base for WC cubicles OTIS is the ideal solution for stable and durable cubicle installations. Made from high-quality AISI 304 (V2A) stainless steel, this base not only offers outstanding corrosion resistance, but also an attractive stainless steel design. Weighing just 0.290 kg, it is easy to handle and install.

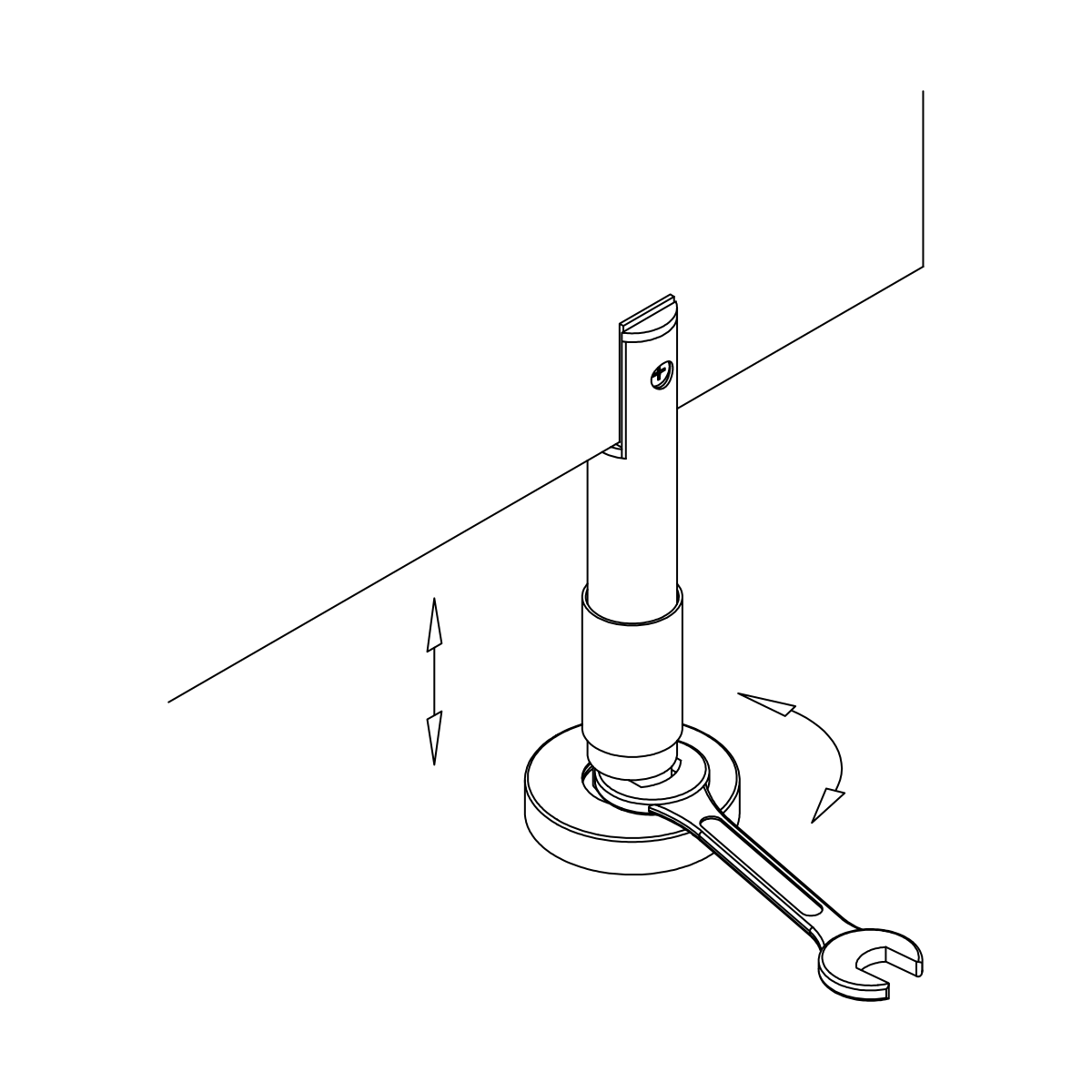

Suitable for glass thicknesses of 10 mm, the variable base ensures secure and stable fastening of the WC cubicles. The precise workmanship and sophisticated design ensure easy adjustment and installation. The base offers stepless height adjustment between 125 mm and 150 mm to meet different structural requirements.

Eigenschaften

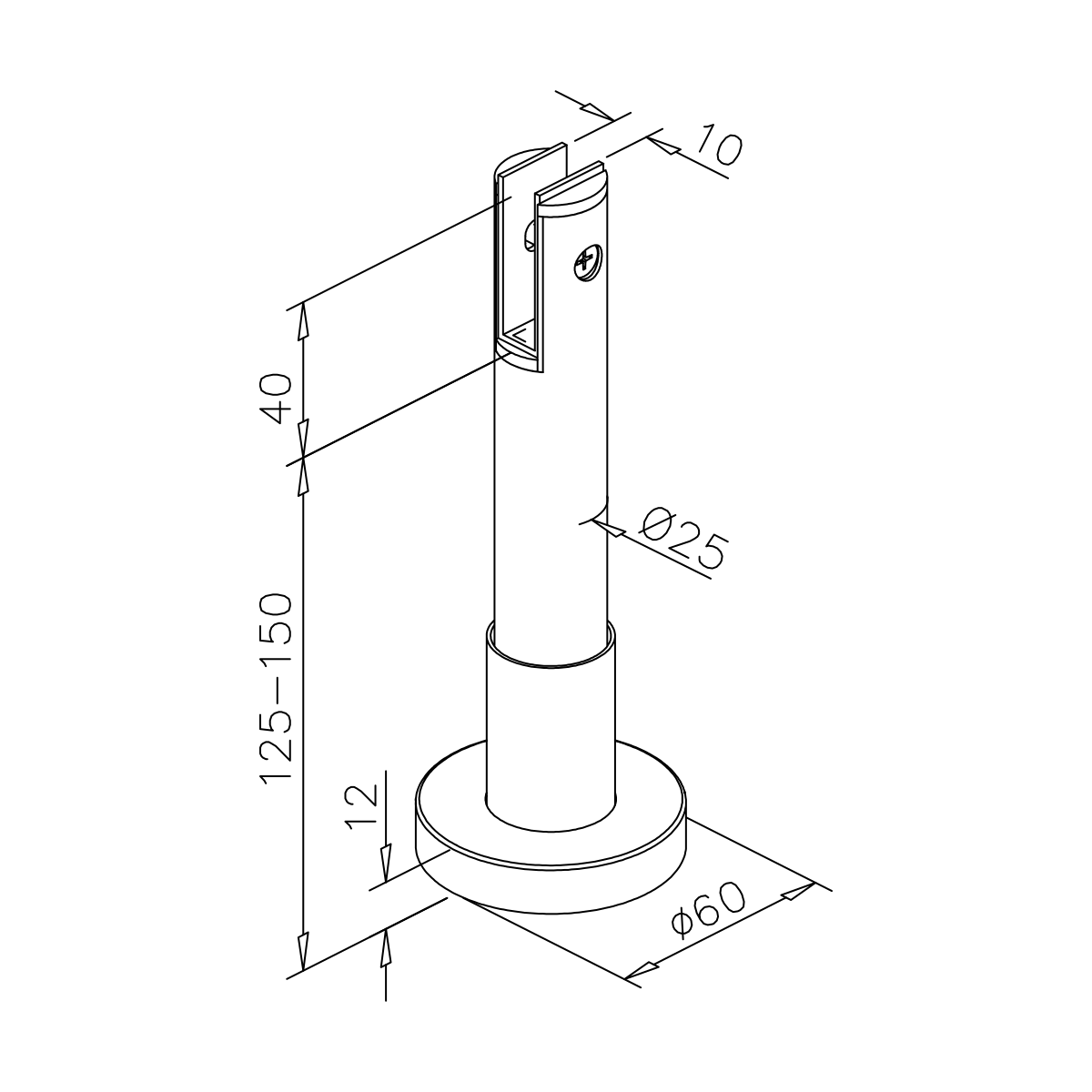

Bore in mm: 8 mm
Finish: Stainless steel design
Glasstärke: 10 mm
Height in mm: 163 - 188 mm
Material: Stainless steel 304 (V2A)
Mounting type: Floor , Glass
Descargas
77-40-5508-025-12.dxf
dxf - 1.05 MB
CAD file
77-40-5508-025-12_datasheet_G-FITTINGS.pdf Datasheet 272.54 KB pdf
77-40-5508-025-12.dxf CAD file 1.05 MB dxf
