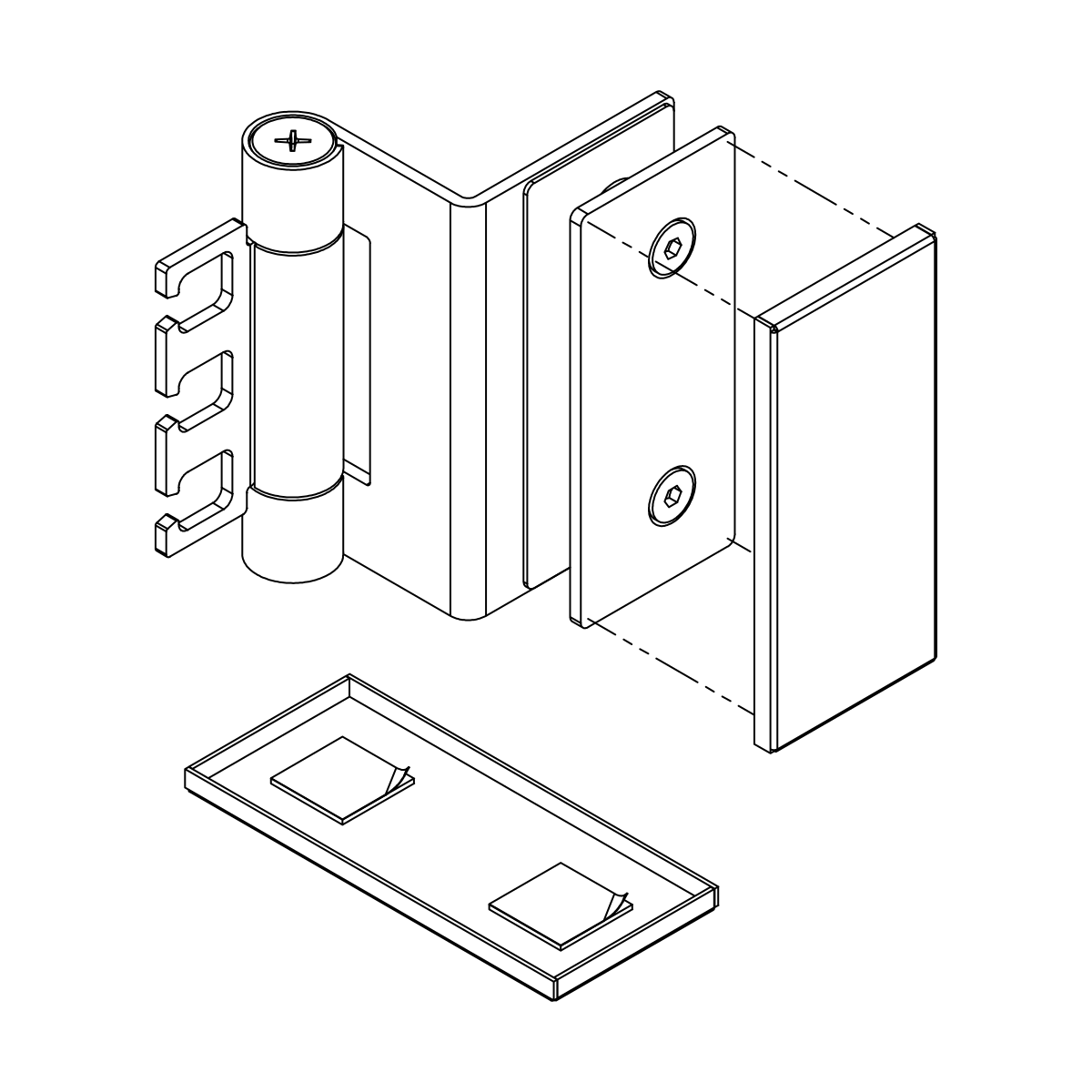

Glass door hinge for panel profile, adjustable Anneliese
Don't see prices yet or want information about delivery?
Simply login with your G-Fittings account and you will see all the important information.
- Exclusive B2B Prices
- Fast & Easy Ordering Process
- Real-Time Availability & Stock Levels
- Purchase on Account for Business Customers
Do you need assembly instructions, CAD drawings, certificates or similar? You will find everything you need here on our website.
The ANNELIESE glass door hinge combines precise adjustability, high load-bearing capacity and modern design - ideal for demanding glass installations in residential, office or commercial areas. Manufactured from robust V2A stainless steel (AISI 304), the hinge impresses with its durability, corrosion resistance and high-quality finish. It is available in two stylish versions: stainless steel design and anthracite design. Thanks to its adjustment function, the hinge can be precisely aligned and ensures a stable, secure and visually clean mounting. With a load capacity of up to 70 kg and suitable for glass doors up to 1200 mm wide, it offers maximum flexibility for a wide range of door solutions. The hinge is designed for glass thicknesses from 8 to 12.76 mm and requires 16 mm glass drill holes for installation. It has been specially designed for single-action doors and meets the highest standards of functionality, design and durability.
| Adjustable: | no |
|---|---|
| Diameter Ø Glass hole: | 16 mm |
| Djustable zero position: | yes |
| Door type: | Stopper |
| Finish: | Stainless steel design |
| Flush mounted: | no |
| Glass cut outs: | yes |
| Glasstärke: | 8 - 12.76 mm |
| Hydraulic: | no |
| Material: | Stainless steel 304 (V2A) |
| Opening direction: | DIN left / DIN right |
| Quantity: | 1 |
| Self-closing: | no |
| max. door weight: | 70 kg |
| max. door width: | 1200 mm |
| 77-45-2705-000_datasheet_G-FITTINGS.pdf | Datasheet | 490.92 KB | |||
|---|---|---|---|---|---|
| 77-45-2705-000-xx.dxf | CAD file | 1.37 MB | dxf |
