U-profile for frame doors with gasket Jacobine

Product number: 77491433500-26
Description

The U-profile JACOBINE can be used for both glass / wall and all-glass wall solutions and is therefore equally suitable for private and office spaces. The profile in 3000 mm or 5000 mm length is supplied INCLUDING seal. Choose between the surfaces silver matt anodized and black matt. Other finishes and RAL colors are available by special order. Our experts will be happy to advise you on the most suitable solution for you.

  • High quality, slim aluminum profiles
  • Suitable for wall and floor and ceiling mounting
  • Glass thickness from ESG 8 mm to VSG 21.52 mm
  • View width only 25 mm / 33 mm
  • Attachment height of the profile is only 40 mm
  • silver matt anodized or black matt
  • incl. seal
  • Length: 3000 mm and 5000 mm
  • easy to install
  • Available ready machined on request
  • Short delivery time, competent advice
Properties

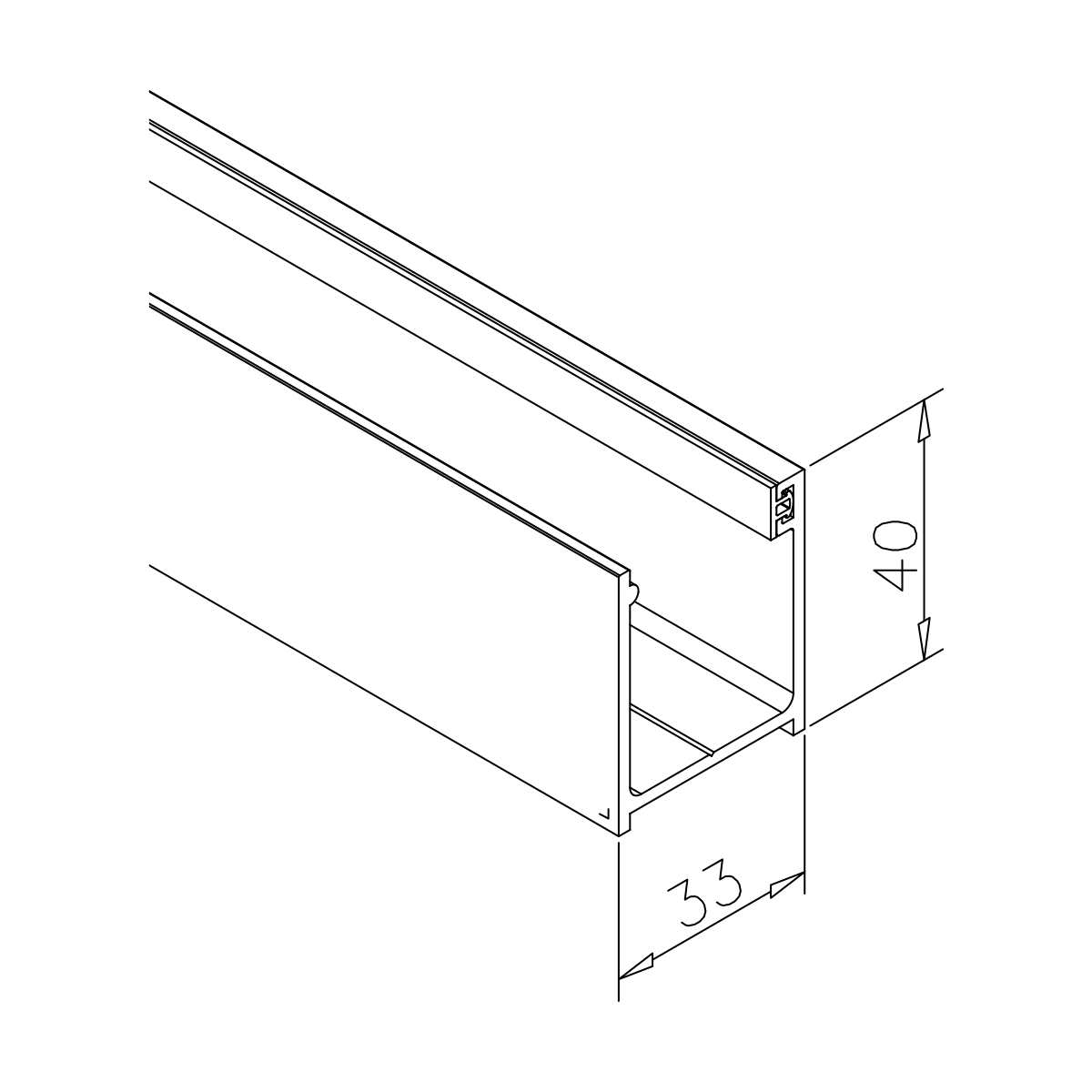

Dimensions: 40 x 33 x 40 mm
Finish: Anthracite black design
Height profile: 40 mm
Length: 5000 mm
Material: Aluminium
Shape: U-Profile
Stock length: 5000 mm
Width profile: 33 mm
16 variants available
