Glass sliding doors are above all quiet - there is no loud slamming of the door or falling into the lock. The G-Fittings sliding doors are available with open fittings with visible rollers or as a variant with barrel fittings as a closed system. The various mounting options, such as wall or ceiling mounting, allow a wide range of uses. The sliding door can be mounted on the left or right. In addition, sliding doors allow a barrier-free environment.read more Fittings for sliding doors
Sliding door on floor rail Elma
Length: 2500 mm
This sliding door ELMA is the perfect solution for use in living rooms, offices and other areas where space is to be saved. The door consists of an adjustable ceiling profile, an end stop set, a guide rail and two rollers for glass mounting. The glass requires pre-drilled holes to mount the rollers. The maximum door weight is 100 kg, the glass thickness is 8 - 12.76 mm and the maximum door width is 1200 mm. The sliding door is available in 2500 mm or 5000 mm versions. Advantages: Saving space Elegant design Easy assembly Robust construction Long-lasting materials Application areas: Living rooms Offices Businesses Exhibition spaces Restaurants Hotels Technical specifications: Maximum door weight: 100 kg Glass thickness: 8 - 12.76 mm Maximum door width: 1200 mm Length: 2500 mm or 5000 mm Scope of supply: 1 x ceiling profile 1 x end stop set 1 x guide rail 2 x rollers
Sliding door for glass and wooden door, incl. softclose and floorguide. Lena
Execution: for glass door
The LENA sliding door system is available in different versions from G-Fittings. It is suitable for easy mounting on the wall or on the ceiling. Choose between a classic wooden door or a glass door. Whether in the entrance area, in the living room, in the kitchen, in the bedroom or children's room - the complete sliding door set can be used in different living areas. Complete system for wall and ceiling mounting suitable for wooden or glass door suitable for 25 to 40 mm wood thickness suitable for 8 to 10.76 mm glass thickness Running rail made of aluminum (matt silver anodized) Aluminum track panel (height 82.5 mm) End stop including soft close Opening direction left or right Height adjustable ± 5 mm End caps optional Delivery consisting of: 1 running track 2 cover profiles 2 carriages with anti-jemmy protection 2 end stops incl. safety catch 1 floor guide 1 assembly key
Sliding door Nina
Length: 2500 mm | Mounting type: Wall
Sliding door NINA is an elegant and functional sliding door for use in living rooms, offices and other areas where space is to be saved. The door consists of a sturdy aluminum frame and a glass element. The sliding door is available in lengths 2500 and 5000 mm and mounting options ceiling, glass / glass and wall. Sliding door Nina has a soft-close function thanks to the standard damping retraction. Due to the bearings protected in this way, the sliding door is particularly smooth-running and slides quietly in the track. The soft-close feature allows the sliding door to open and close quietly and smoothly. It increases the ease of use and extends the life of the door. The Nina sliding door is an ideal solution for those who want to save space and value an elegant and functional design. Advantages: Saving space Elegant design Smooth running Quiet Safe Long-lasting Application areas: Living rooms Offices Businesses Exhibition spaces Restaurants Hotels Technical specifications: Length: 2500 mm or 5000 mm Mounting options: Ceiling, Glass / Glass, Wall Glass thickness: 8 - 10.76 mm Maximum door height: 2200 mm Maximum door weight: 40 kg Scope of supply: 1 x carriage for running rail 1 x running rail 1 x cover profile for running rail 1 x cover profile for running rail 1 x bottom guide 2 x damper retracts for the running rail

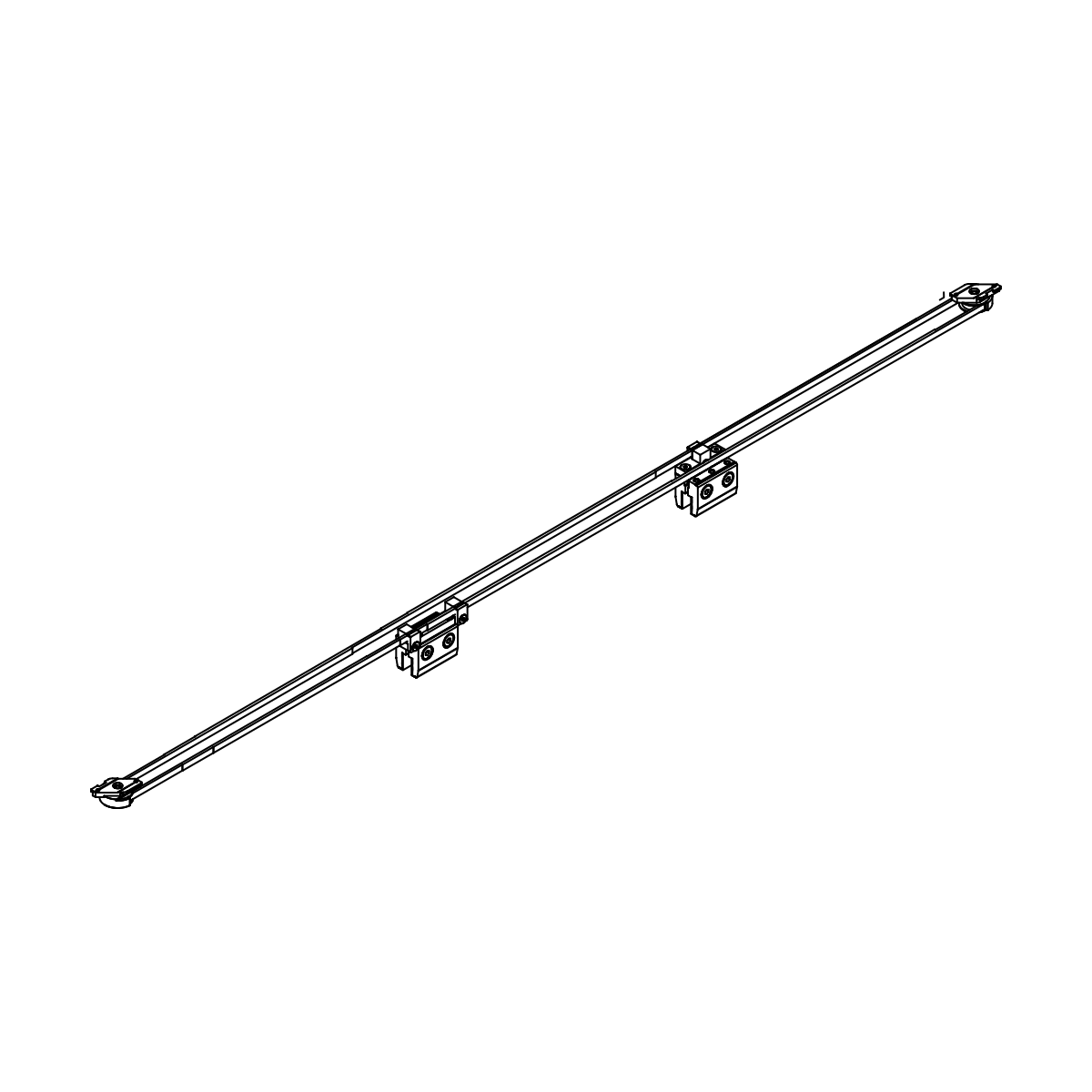

Synchro Sliding door incl. softclose and floorguide Almodis
Mounting type: Wall | Surface: silver matt anodized
Synchro sliding door ALMONIS is an elegant and functional solution for use in living rooms, offices and other areas where space is to be saved. The door consists of a sturdy aluminum frame and two glass elements. The sliding door is available in wall-mount, ceiling-mount and all-glass mounting options. The Almodis synchro sliding door features a soft-close function thanks to the damper retraction system installed as standard. The damper retraction allows the sliding door to open and close quietly and smoothly. It increases the ease of use and prolongs the life of the door. The synchro function of the sliding door causes the two glass doors to open and close synchronously. This is particularly convenient in small rooms, as it increases the passage width. The synchro function is achieved by a special hardware system that connects the two doors. The hardware system is designed so that the doors open and close evenly and synchronously, regardless of how hard they are opened. This ensures that the doors run smoothly and evenly. Advantages: Saving space Elegant design Smooth running Quiet Safe Long-lasting Synchronous opening and closing of doors Application areas: Living rooms Offices Businesses Exhibition spaces Restaurants Hotels Technical specifications: Mounting options: Wall mounting, ceiling mounting, all-glass mounting Glass thickness: 8 - 12.76 mm Maximum door height: 2700 mm Maximum door weight: 100 kg No glass drilling is required for installation Surface: stainless steel, black or silver matt anodized Scope of delivery: 2x drive set 5 m running track 5 m deck profile 4x damper retract 2x floor guide 1x Synchro Set
Sliding door incl. softclose and floorguide Sina
Length: 2500 mm | Mounting type: Wall | Surface: silver matt anodized
Sliding door SINA incl. Dämpfereinzug and floor guide. By the damper the sliding door gains a soft-close function. The floor guide provides additional stability. The sliding door is made of high-quality materials and is available in many mounting options and three noble design options and thus allow the use in numerous rooms. Due to the clamp mounting, the sliding door does not require any glass drilling. However, the proper prior cleaning of the clamping surface is important here - for this we recommend our glass cleaner! Mounting Options: ceiling Wall Glass / glass All-glass wall Surface: Stainless steel Silver matt anodized Black Lengths: 2500 mm 4000 mm 5000 mm
Pocket sliding door Annkathrin
The G-Fittings Pocket sliding door system Annkatrin is suitable for installation in metal stud walls. The system is therefore extremely space-saving and the wall in front of it can be used completely. The high-quality carriages move with ball-bearing mounted plastic rollers in elegant aluminum profiles, which guarantee easy, wear-resistant and low-noise operation. All moving parts are protected against the ingress of dirt by a self-cleaning construction. Assembly is simple, quick and efficient. The advantages at a glance: All-glass doors 8 – 10 mm Quick and easy assembly, height adjustment +/- 3 mm Door leaf weight up to 80 kg Door widths from 580 mm Double-side cushioning Veneering of the running rail possible Shapely glass clamp and floor guide

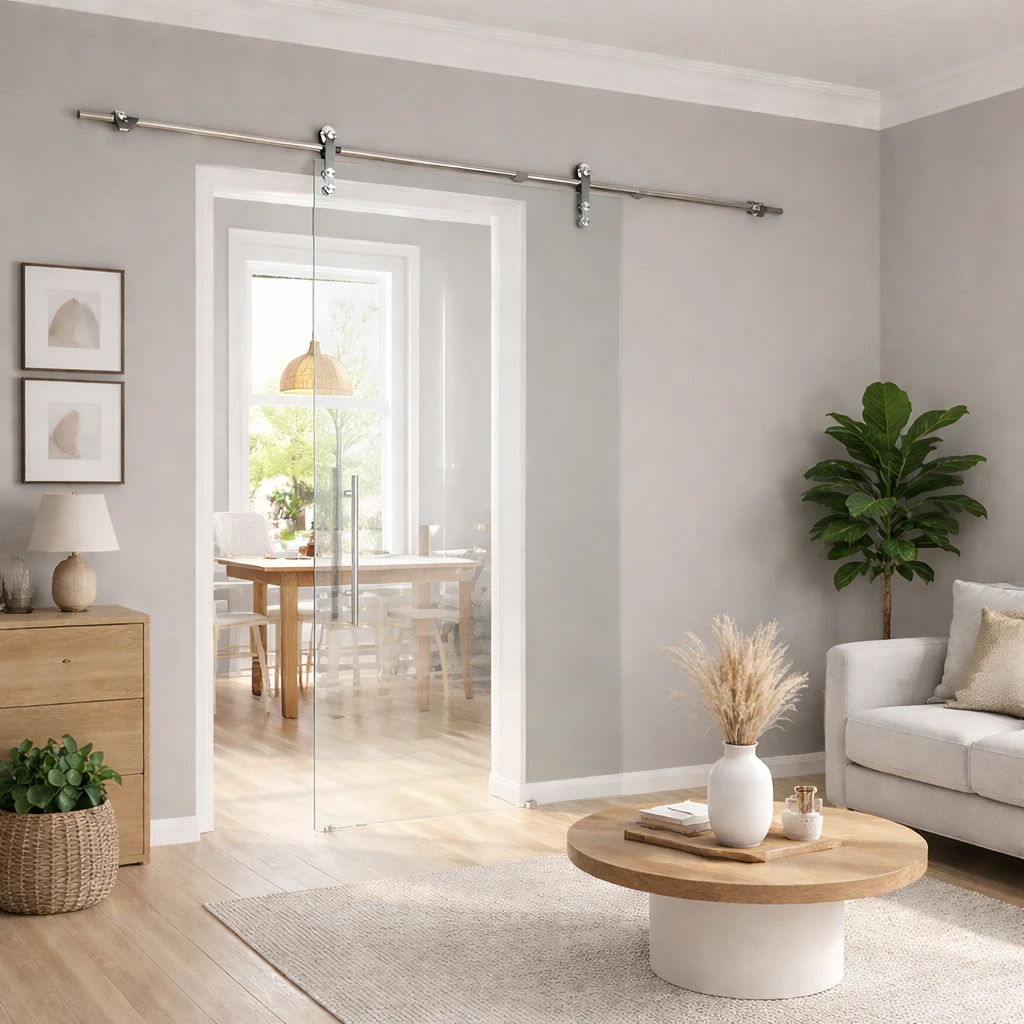

PREMIUM Sliding door with lift protection Bertie
Mounting type: Wall | Surface: Stainless steel design, stainless steel material
The PREMIUM sliding door Bertie from G-Fittings with anti-lift and point fixing is ideal for your living room or your workspace. The sliding door is suitable for wall mounting, wall/glass mounting or for completely glass walls. The carriage is made of stainless steel and has a magnetic anti-lift device. Available for glass thicknesses from 8 - 12.76 mm in satin stainless steel and black. The system is easy to assemble and extremely smooth and quiet. Sliding door fittings and components made of high-quality stainless steel Magnetic anti-lift for placement in the carriage Satin stainless steel and Anthracite black surfaces Adjustable in height (± 4 mm) Point fixings with concealed screws Barrier-free without floor rail Extremely smooth and quiet Easy to assemble Including mounting material and floor guide
Sliding door on floor rail, double Seba
The double sliding door SEBA is the perfect solution for rooms with limited space. The door consists of two glass wings running on a guide rail. The glass thickness is 8 - 12.76 mm, the maximum door width is 1200 mm and the maximum door weight is 100 kg. The glass for the sliding door requires pre-drilling. The double sliding door is an aesthetic and functional solution for any room. It is easy to install and operate. Advantages of the double sliding door: Saving space Aesthetic Functional Easy to assemble Easy to operate If you are looking for a sliding door that saves space, is aesthetically pleasing and functional, the double sliding door is the perfect solution for you Scope of supply: Ceiling profile adjustable 2x end stop set Guide rail 4x roller for glass mounting Strip seal self-adhesive
Cover profile Magdalen
Length: cut to size | Surface: silver matt anodized
Cover profile MAGDALEN for sliding door Sina adapts to the desired surface - choose from stainless steel, silver matt anodized or black design. The profile is cut to the exact millimeter, so that no scraps remain and the cover profile perfectly covers the track.
Soft closing mechanism Gudrune
Max. door weight: 100 kg
The damper retractor GUDRUNE is a high-quality door opener that supports a maximum door weight of 100kg or 150kg. With its innovative technology, it ensures smooth and quiet opening and closing of the door. The damper retraction works on the principle of pneumatic damping, preventing sudden slamming of the door and unnecessary noise. It also increases the ease of use and prolongs the life of the door. The Gudrune damper retractor is easy to install and offers a long service life.
Panel profile for fixed glass Irmy
Length: cut to size | Surface: silver matt anodized
The panel profile IRMY is suitable for the rail Willemine. An aperture profile for a running track describes the way the track affects the glide and friction of the object sliding on it. A track with a good aperture profile would have a smooth and even surface that causes little friction and allows the object to move easily and precisely. A track with a poor orifice profile could have an uneven or rough surface that causes a lot of friction and makes the object difficult and inaccurate to move. Aperture profiles for guideways are often used to assess the quality of guideways for applications such as machine building, automation and manufacturing.
Running track Letty
Length: cut to size | Surface: silver matt anodized
Discover the track LETTY for sliding door systems, such as sliding door Sina. The track is available in the finishes stainless steel design, silver matt anodized and black design. The running track is delivered cut to size according to your specifications and thus adapts to your individual needs.
Telescopic sliding door, 3 rails Madina
Length: 2000 mm | Mounting type: 3 doors
The MADINA telescopic sliding door system from G-Fittings enables two wings to be opened telescopically with just one movement. The running rail has 3 tracks and is suitable for invisible wall and ceiling mounting. The clamping technology makes glass processing superfluous. The variable carriages hold glass thicknesses between 8 and 10 mm as standard. After the glass has been installed, a height adjustment of +/-3 mm is possible. The system is ideal for a plasterboard construction where only 28 mm of the track is visible. Fixed glass is also an option for ceiling mounting.
Telescopic sliding door, 2 rails Clarimonda
Length: 2000 mm | Mounting type: 2 doors
The telescopic sliding door system CLARIMONDA by G-Fittings enables two panels to be opened telescopically with just one movement. The running rail has 2 tracks and is suitable for invisible wall and ceiling mounting. The clamping technology makes glass processing superfluous. The variable carriages hold glass thicknesses between 8 and 10 mm as standard. After the glass has been installed, a height adjustment of +/-3 mm is possible. The system is ideal for a plasterboard construction where only 28 mm of the track is visible. Fixed glass is also an option for ceiling mounting.
Sliding door roller component with lift protection Cathelijn
Surface: Stainless steel design, stainless steel material
Der Laufwagen für Glasschiebetür Systeme Cathelijn verfügt über eine Aushebesicherung. Die Aushebesicherung wird einfach unter der Laufschiene montiert und die Glastür kann sicher über den Laufwagen gleiten, ohne Gefahr zu laufen, ausgehoben zu werden. Die Montage ist schnell und einfach. Es ist kein spezielles Werkzeug oder Fachwissen zur Montage der Aushebesicherung nötig. Der Laufwagen für die Glasschiebetür ist in Edelstahl oder Schwarz Design erhältlich.
