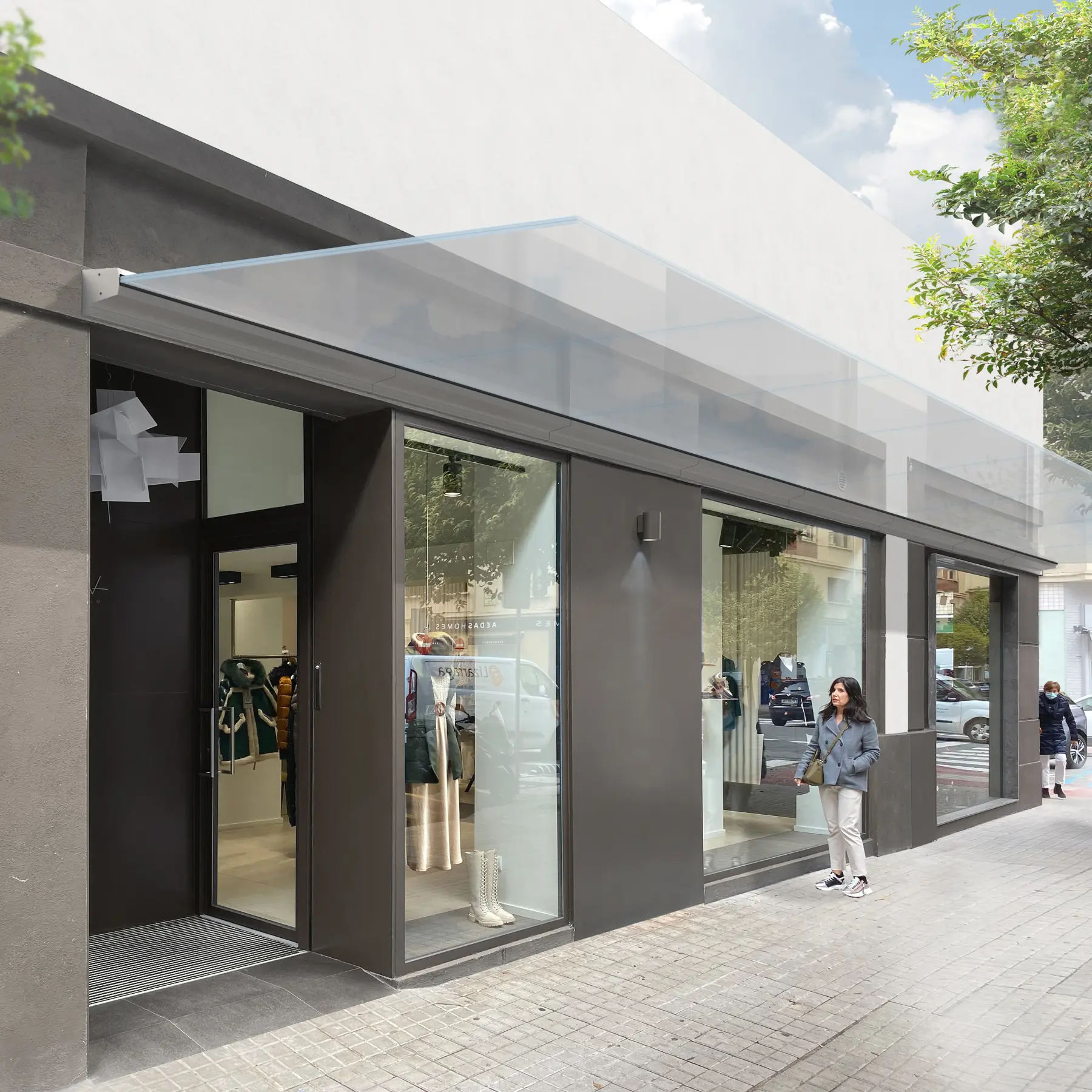

Glasvordach, freitragend, 2920x1xxx46

Sliding glass wall for outdoor

With an outdoor sliding glass patio wall, you can benefit from your patio or balcony all year round. Quickly transform your (patio) roofing into a cozy summer garden.
Learn more now
Glasvordach, freitragend, 2920x1xxx46

Sliding glass wall for outdoor

With an outdoor sliding glass patio wall, you can benefit from your patio or balcony all year round. Quickly transform your (patio) roofing into a cozy summer garden.
Learn more now
Terrassen Glasschiebewand, 2914xxxxx46

TERRACE SLIDING GLASS WALL MADE TO MEASURE

Effortlessly transform your balcony or terrace roofing into a cozy winter garden with a sliding glass wall from G-Fittings.

The glass wall consists of several elements that you can easily slide open and close with the help of a practical rail system.

The sliding glass wall can be ideally combined with terrace roofing and adapted to the most diverse structural conditions. Due to its flexible and simple structure, it is suitable for use on many other objects, such as balconies, terraces and pergolas. The only decisive factor is the possibility of mounting the guide rails.

The advantages of the sliding wall at a glance:

  • Extremely low floor rail (21 mm) for effortless entry and exit.
  • 3 installation types: floor installation, semi-recessed and flush-mounted
  • No glass processing necessary
  • max. panel height: 3000 mm
  • max. panel width 1100 mm
  • ambidextrous with door lock and side lock
  • outer wings lockable
  • flat bottom rail for easy cleaning
  • subsequent height adjustment ± 4 mm
  • Made to measure: only 12 mm overlap between the glass panes
  • Large load capacity up to 80 kg
  • 2 standard colors: silver matt anodized and white RAL 9010. (Other RAL colors on request.)
  • Tested according to UNI EN 1932:2013 class 6
Request now

TERRACE SLIDING GLASS WALL MADE TO MEASURE

Effortlessly transform your balcony or terrace roofing into a cozy winter garden with a sliding glass wall from G-Fittings.

The glass wall consists of several elements that you can easily slide open and close with the help of a practical rail system.

The sliding glass wall can be ideally combined with terrace roofing and adapted to the most diverse structural conditions. Due to its flexible and simple structure, it is suitable for use on many other objects, such as balconies, terraces and pergolas. The only decisive factor is the possibility of mounting the guide rails.

The advantages of the sliding wall at a glance:

  • Extremely low floor rail (21 mm) for effortless entry and exit.
  • 3 installation types: floor installation, semi-recessed and flush-mounted
  • No glass processing necessary
  • max. panel height: 3000 mm
  • max. panel width 1100 mm
  • ambidextrous with door lock and side lock
  • outer wings lockable
  • flat bottom rail for easy cleaning
  • subsequent height adjustment ± 4 mm
  • Made to measure: only 12 mm overlap between the glass panes
  • Large load capacity up to 80 kg
  • 2 standard colors: silver matt anodized and white RAL 9010. (Other RAL colors on request.)
  • Tested according to UNI EN 1932:2013 class 6
Request now
Terrassen Glasschiebewand, 2914xxxxx46

TERRACE SLIDING GLASS WALL MADE TO MEASURE

The sliding glass wall consists of guide rails at the top and bottom and individual glass elements that can be conveniently moved by means of a driver function. In this way, you can move all the glass elements together and easily open and close them with just one movement. You can choose whether the glass elements should be on the left, right or half on the outside when open, so that the glass wall is closed to the right, left or in the middle.

The top and bottom rails are made of aluminum. The bottom rail is anodized and thus optimally protected against stress.

Request now

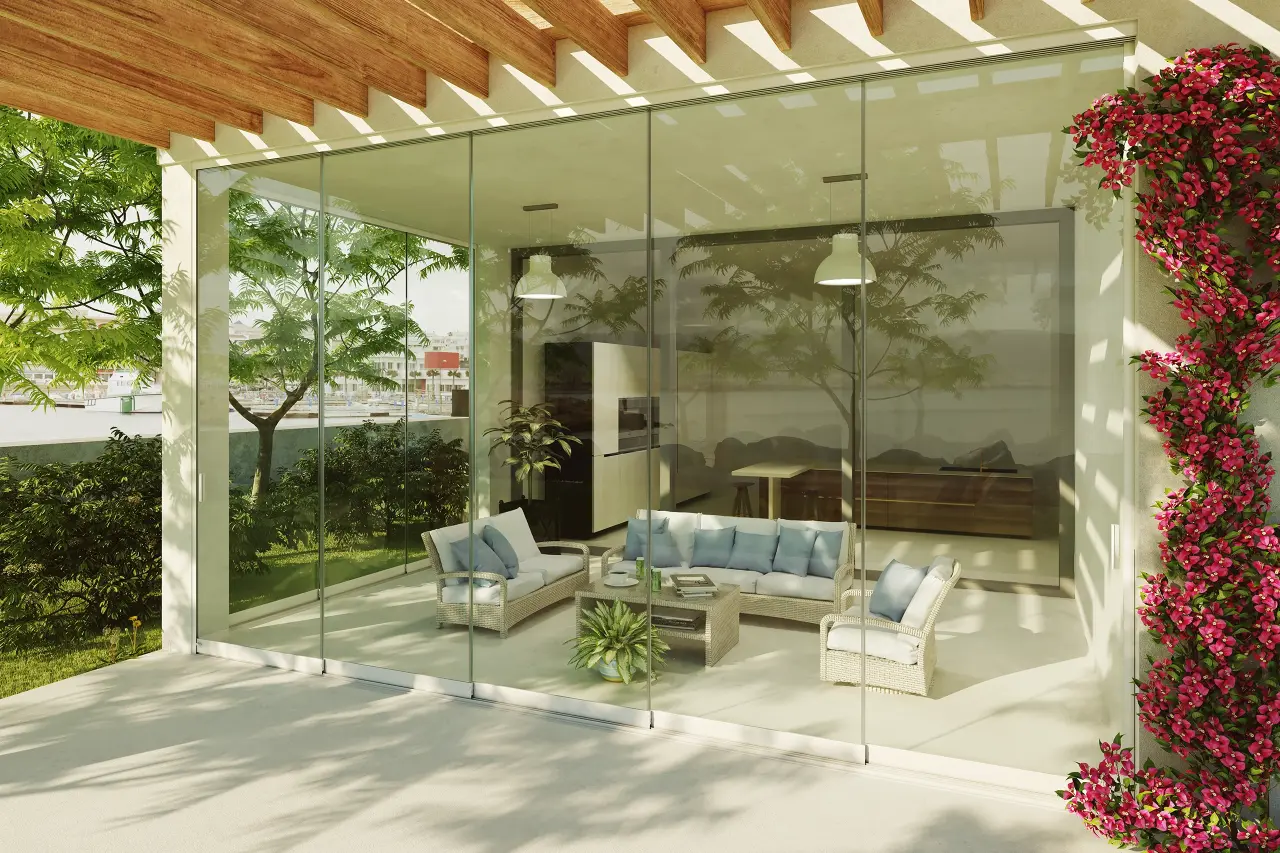

Wintergarten mit Terrassen Glasschiebewand
Wintergarten mit Terrassen Glasschiebewand

TERRACE SLIDING GLASS WALL MADE TO MEASURE

The sliding glass wall consists of guide rails at the top and bottom and individual glass elements that can be conveniently moved by means of a driver function. In this way, you can move all the glass elements together and easily open and close them with just one movement. You can choose whether the glass elements should be on the left, right or half on the outside when open, so that the glass wall is closed to the right, left or in the middle.

The top and bottom rails are made of aluminum. The bottom rail is anodized and thus optimally protected against stress.

Request now

3 INSTALLATION TYPES FOR MAXIMUM FLEXIBILITY

Choose between floor installation, semi-recessed and flush and up to 5 tracks

Zeichnung der Montageoption Bodeneinbau für Glasschiebewand
Zeichnung des Halbeinbaus für die Glasschiebewand
Zeichnung des Flächenbündigen Einbaus der Glasschiebewand

FLOOR INSTALLATION

three to five tracks

SEMI-INSTALLATION

three- to five-track

FLUSH-MOUNTED

three- to five-rail

3 INSTALLATION TYPES FOR MAXIMUM FLEXIBILITY

Choose between floor installation, semi-recessed and flush and up to 5 tracks

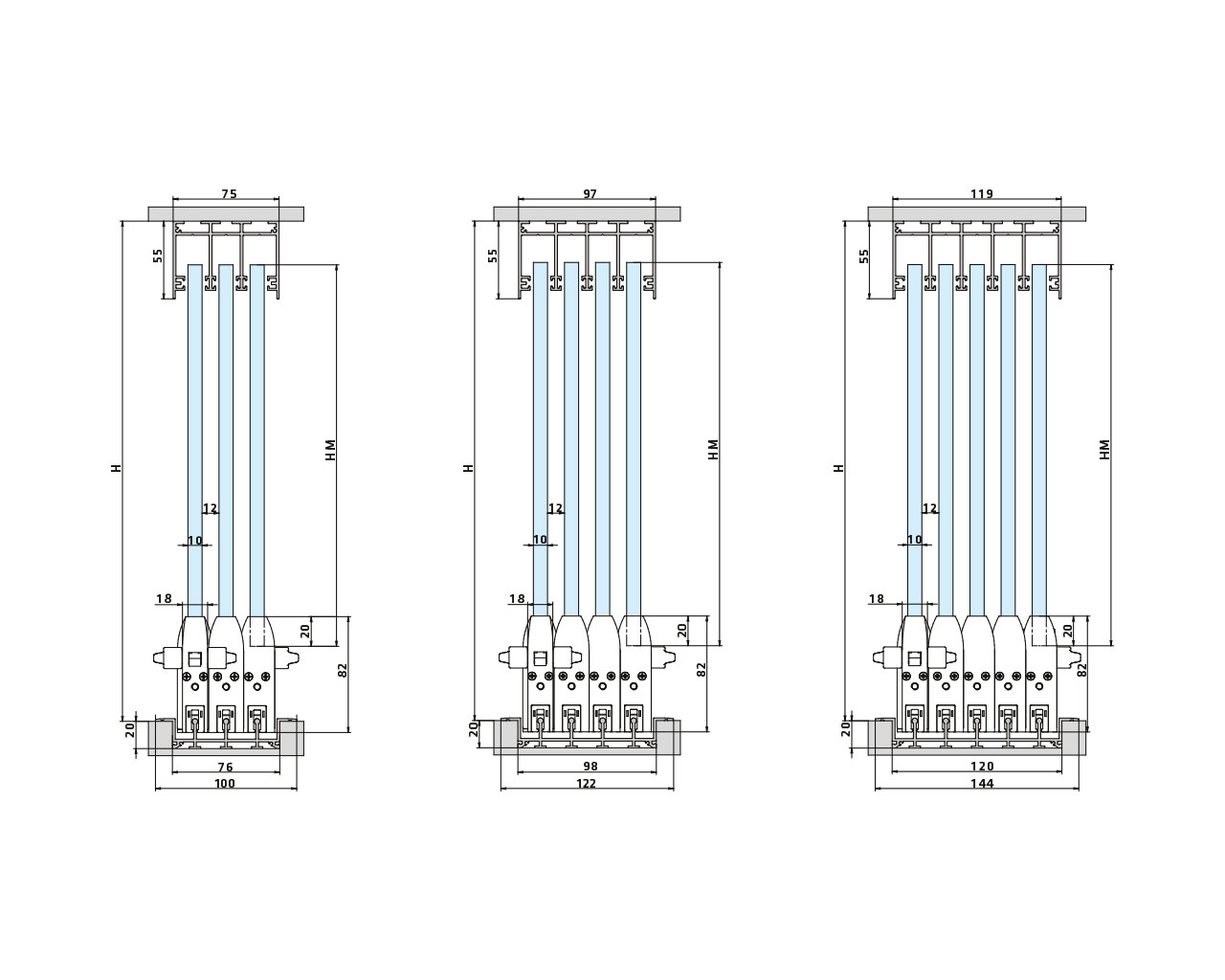

Zeichnung der Montageoption Bodeneinbau für Glasschiebewand

FLOOR INSTALLATION

three to five tracks

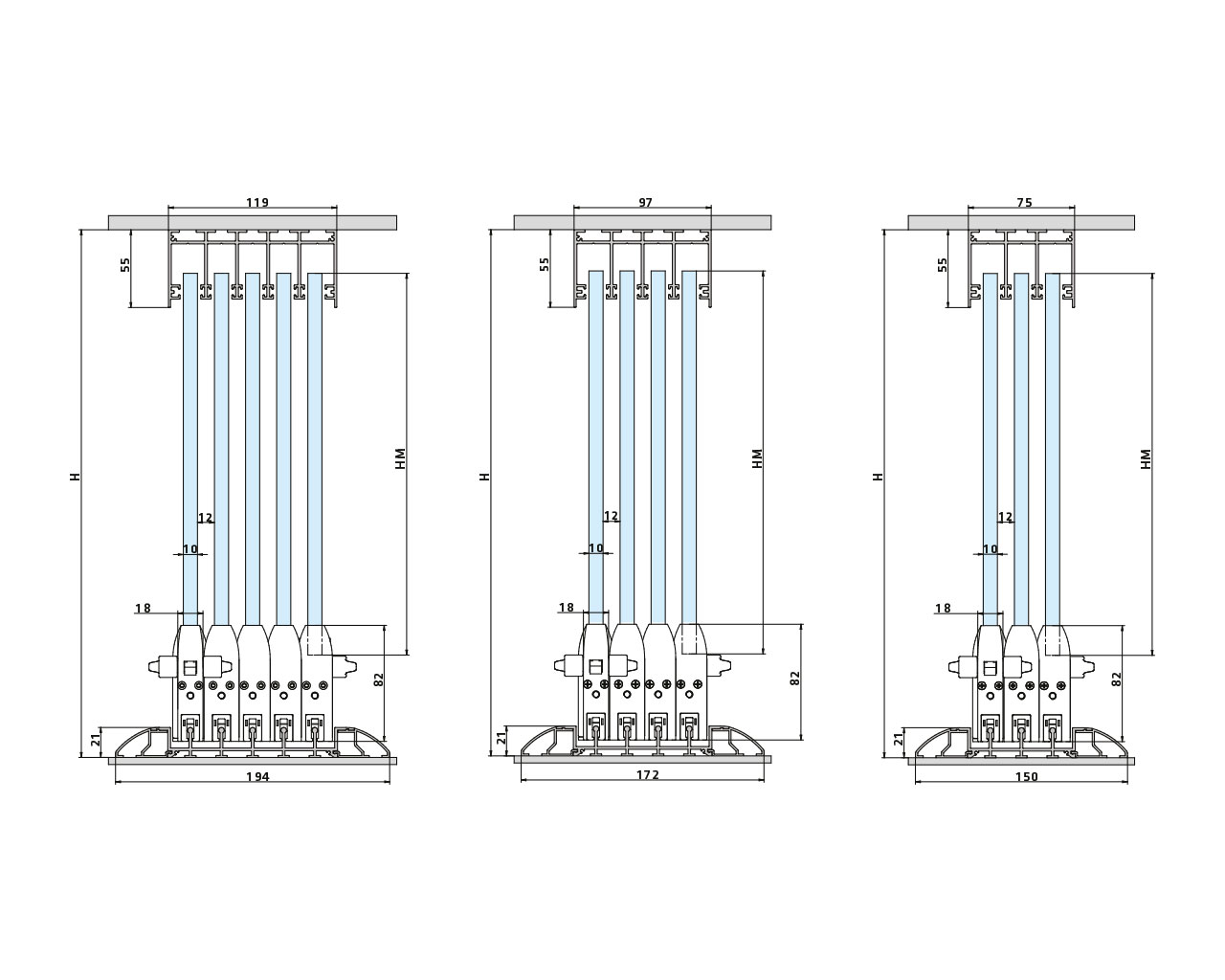

Zeichnung des Halbeinbaus für die Glasschiebewand

SEMI-INSTALLATION

three- to five-track
Zeichnung des Flächenbündigen Einbaus der Glasschiebewand

FLUSH-MOUNTED

three- to five-rail

BARRIER-FREE MOUNTING OF THE FLOOR RAIL

The barrier-free installation of the floor rail provides a seamless transition between the indoor and outdoor areas. The bottom floor rail is installed and processed flush with the surface between the decking.

The extremely stable aluminum carrier is mounted almost invisibly below the carriage. One pulley takes all pulleys. The driver works in one direction.

Request now

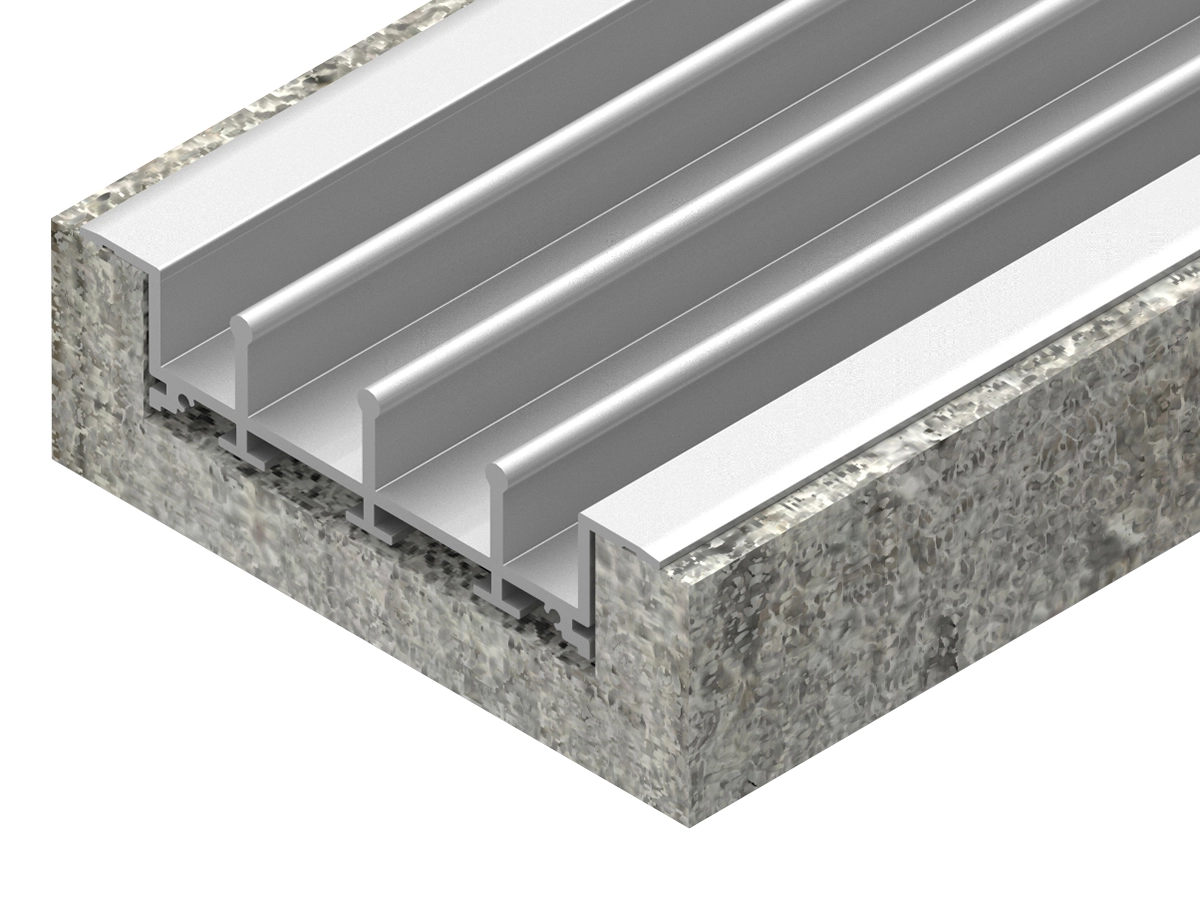

Bodeneinbau Visualisierung der Bodenschiene
Bodeneinbau Visualisierung der Bodenschiene

BARRIER-FREE MOUNTING OF THE FLOOR RAIL

The barrier-free installation of the floor rail provides a seamless transition between the indoor and outdoor areas. The bottom floor rail is installed and processed flush with the surface between the decking.

The extremely stable aluminum carrier is mounted almost invisibly below the carriage. One pulley takes all pulleys. The driver works in one direction.

Request now

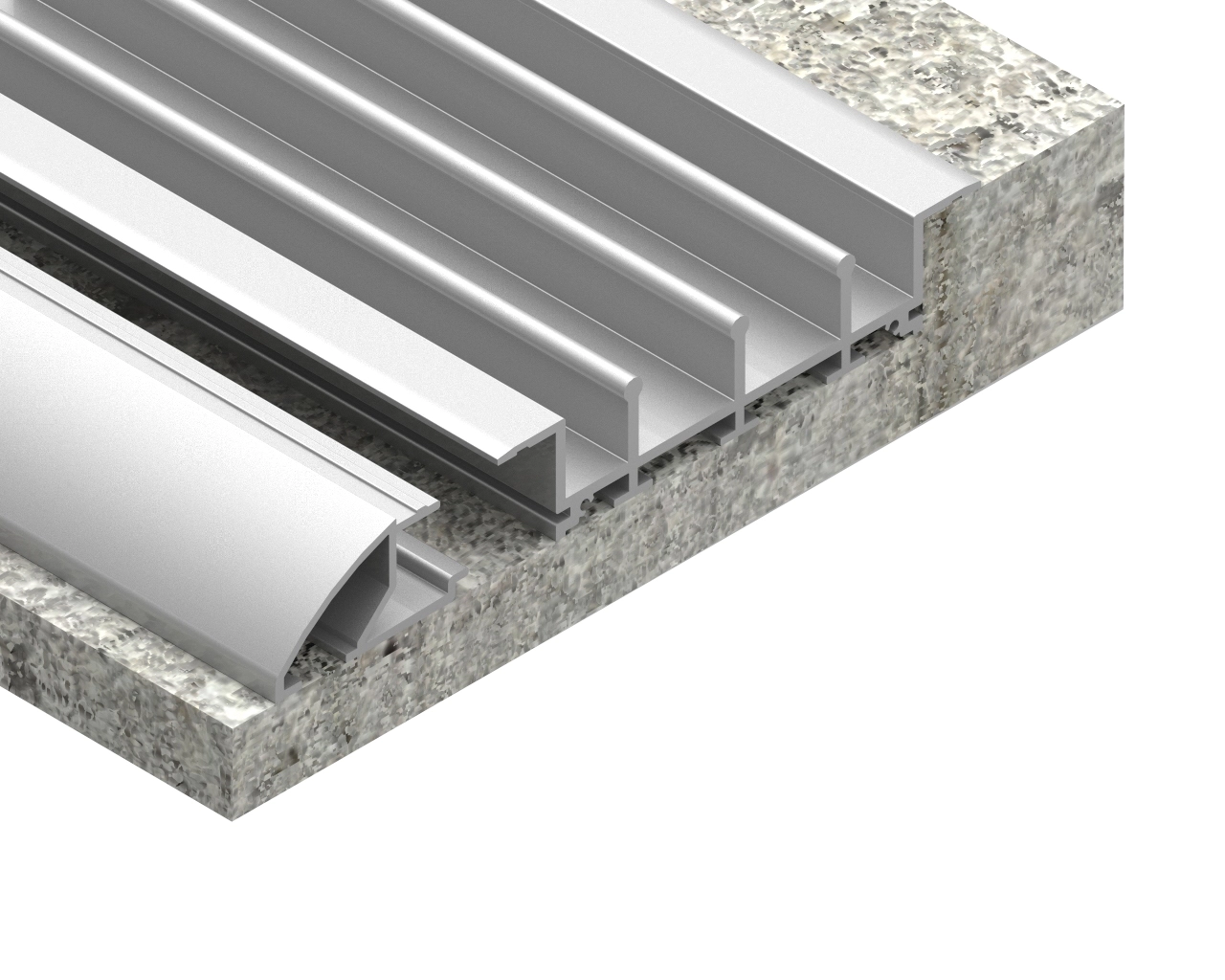

Halbeinbau Visualisierung der Bodenschiene

QUARTER CIRCLE PROFILE AS A COMPLEMENT

The retractable floor rail can be coupled with the quarter-circle profile to facilitate the passage of the rail and comply with the regulations for architectural barriers. This profile is available as an add-on and can also be retrofitted.

To install a sliding glass wall safely and professionally, you also need a level and preferably horizontal installation base. The foundation should have sufficient load-bearing capacity and be frost-proof.

The built-in water drainage holes in the bottom rail ensure reliable drainage.

Request now
Halbeinbau Visualisierung der Bodenschiene

QUARTER CIRCLE PROFILE AS A COMPLEMENT

The retractable floor rail can be coupled with the quarter-circle profile to facilitate the passage of the rail and comply with the regulations for architectural barriers. This profile is available as an add-on and can also be retrofitted.

To install a sliding glass wall safely and professionally, you also need a level and preferably horizontal installation base. The foundation should have sufficient load-bearing capacity and be frost-proof.

The built-in water drainage holes in the bottom rail ensure reliable drainage.

Request now

WHAT ARE THE ADVANTAGES OF A SLIDING GLASS WALL?

A sliding glass wall or balcony glazing from G-Fittings offers many advantages. You can find the most important ones here.

Profil ohne Glasbearbeitung
Seitenprofil
Visuelle Darstellung eines Laufwagens
Visuelle Darstellung eines höhenverstellbaren Profils
Visuelle Darstellung Laufwagen in Panel
Darstellung eines Mitnehmers am Profil

NO GLASS MACHINING

The clamping jaws eliminate the need for glass machining and reduce costs.

CLEAN SIDE PROFILE

No machining of the side profile required. Easy cleaning thanks to the side collection device.

HIGH QUALITY CARRIAGES

The carriages are characterized by their smooth and quiet running. Two Ø 29 mm wheels and one Ø 19 mm steel bearing with double shielding, load capacity up to 130 kg per door.

SUBSEQUENT ADJUSTMENT

The carriage can be adjusted even when the leaf is installed, without the need to remove the leaf. The system has been tested for 100,000 continuous opening and closing cycles.

WIDE RANGE OF ACCESSORIES

The trolley allows maximum flexibility and is also suitable for narrow sashes and load capacities up to 45 kg.

IMPROVED CARRIER

The double-sided follower with a larger contact area provides improved durability and mechanical strength.

WHAT ARE THE ADVANTAGES OF A SLIDING GLASS WALL?

A sliding glass wall or balcony glazing from G-Fittings offers many advantages. You can find the most important ones here.

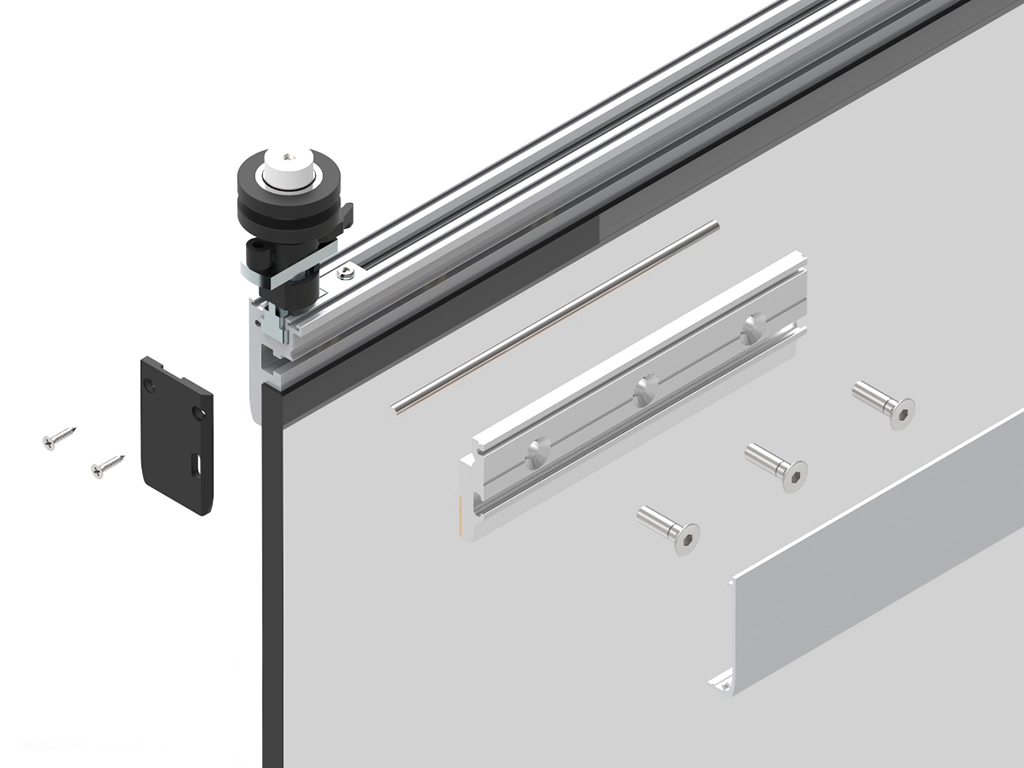

Profil ohne Glasbearbeitung

NO GLASS MACHINING

The clamping jaws eliminate the need for glass machining and reduce costs.
Seitenprofil

CLEAN SIDE PROFILE

No machining of the side profile required. Easy cleaning thanks to the side collection device.

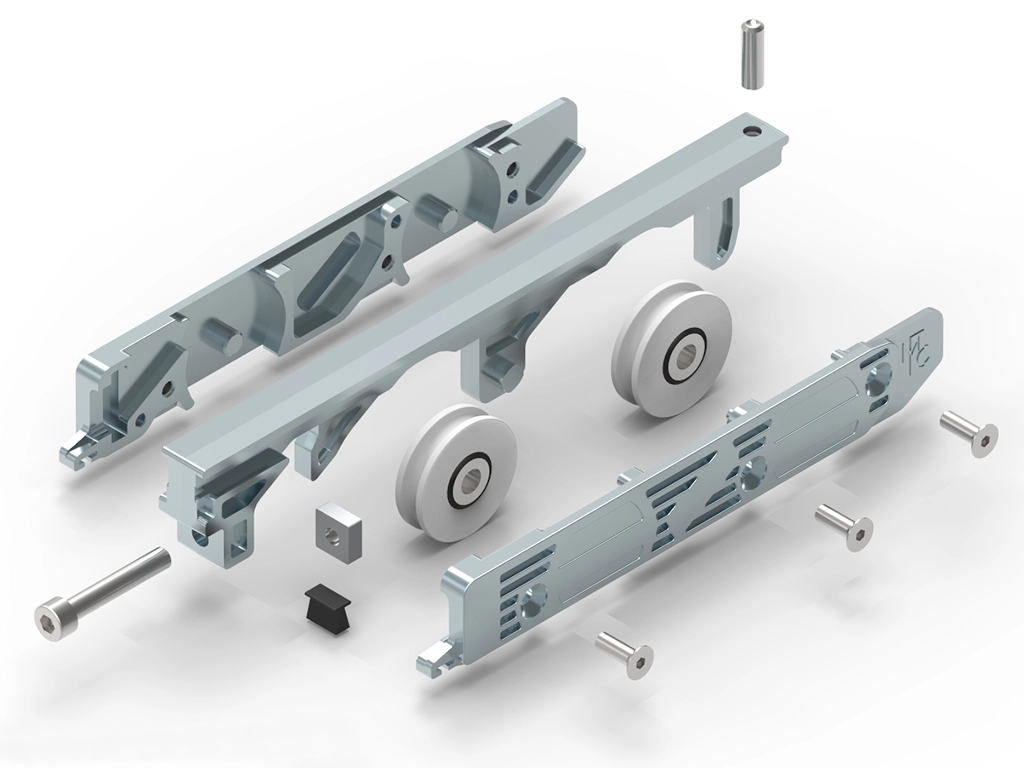

Visuelle Darstellung eines Laufwagens

HIGH QUALITY CARRIAGES

The carriages are characterized by their smooth and quiet running. Two Ø 29 mm wheels and one Ø 19 mm steel bearing with double shielding, load capacity up to 130 kg per door.

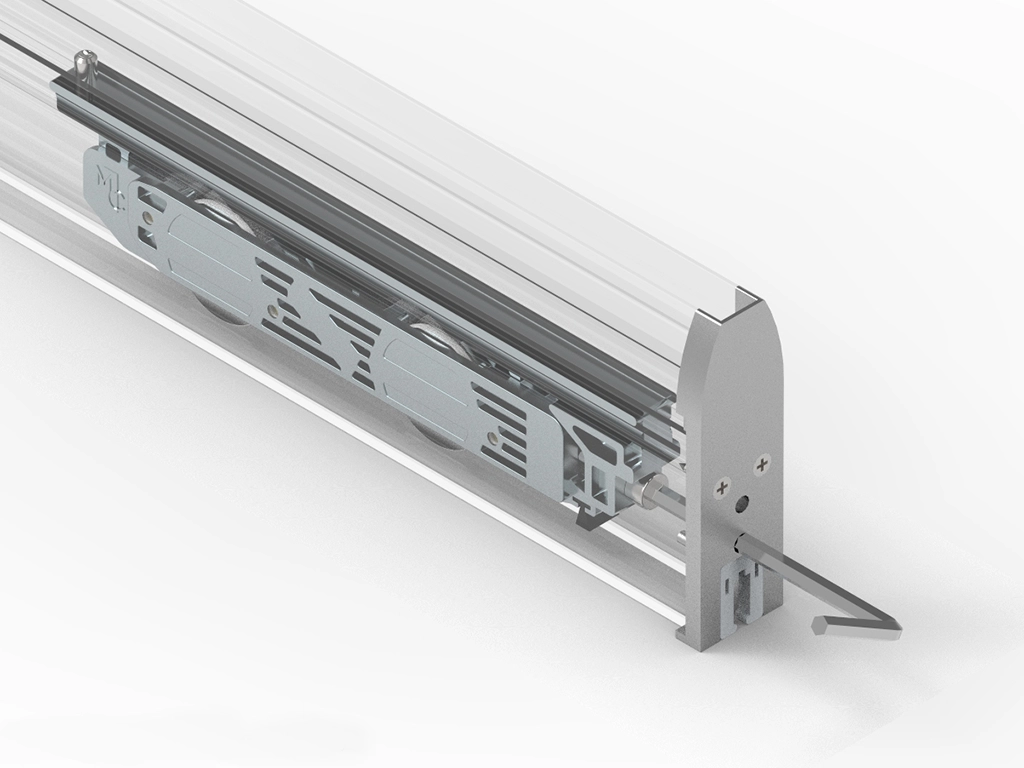

Visuelle Darstellung eines höhenverstellbaren Profils

SUBSEQUENT ADJUSTMENT

The carriage can be adjusted even when the leaf is installed, without the need to remove the leaf. The system has been tested for 100,000 continuous opening and closing cycles.

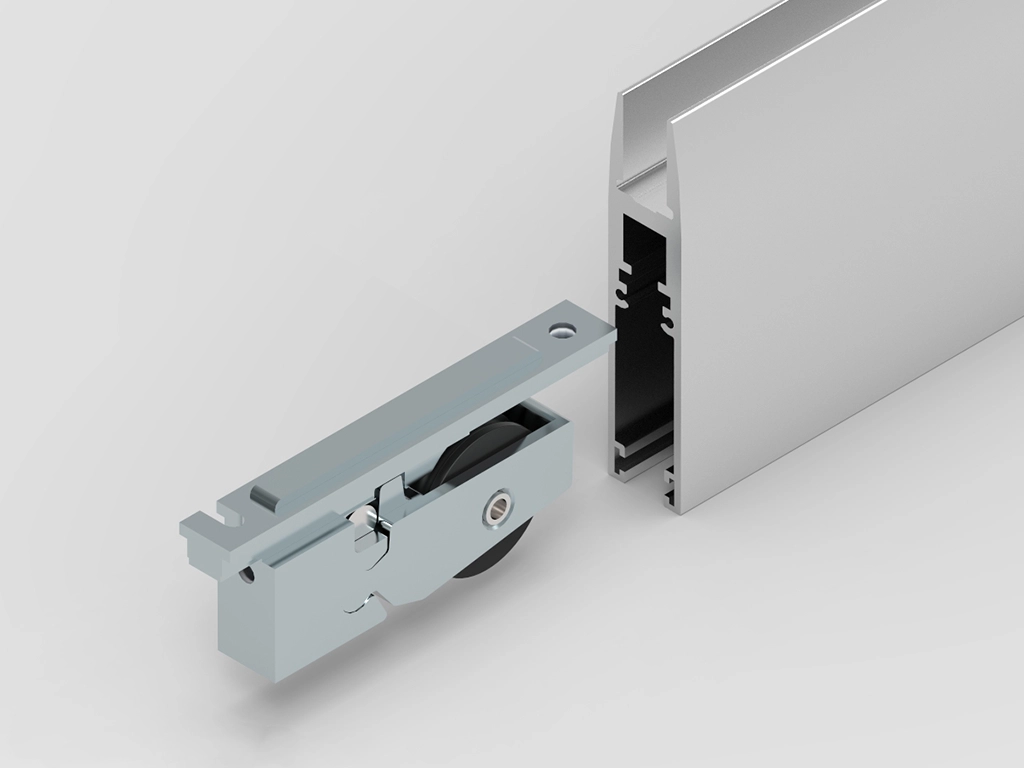

Visuelle Darstellung Laufwagen in Panel

WIDE RANGE OF ACCESSORIES

The trolley allows maximum flexibility and is also suitable for narrow sashes and load capacities up to 45 kg.

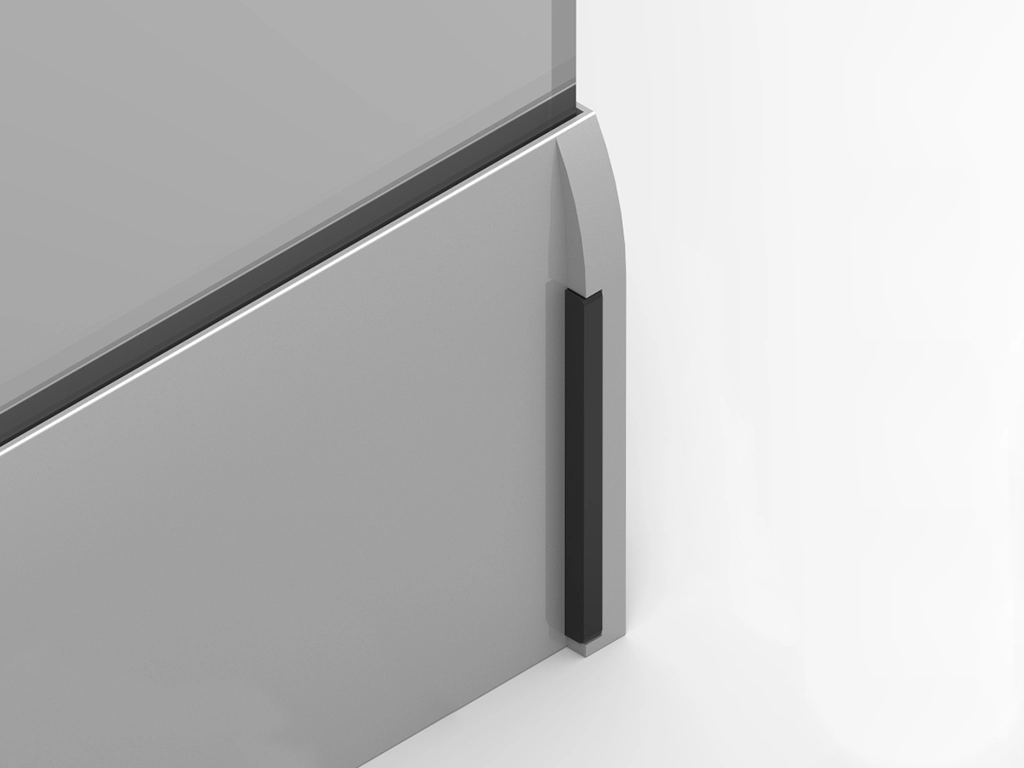

Darstellung eines Mitnehmers am Profil

IMPROVED CARRIER

The double-sided follower with a larger contact area provides improved durability and mechanical strength.
