Footrail bracket Sygrid
Product number:
77110109038-20
Description

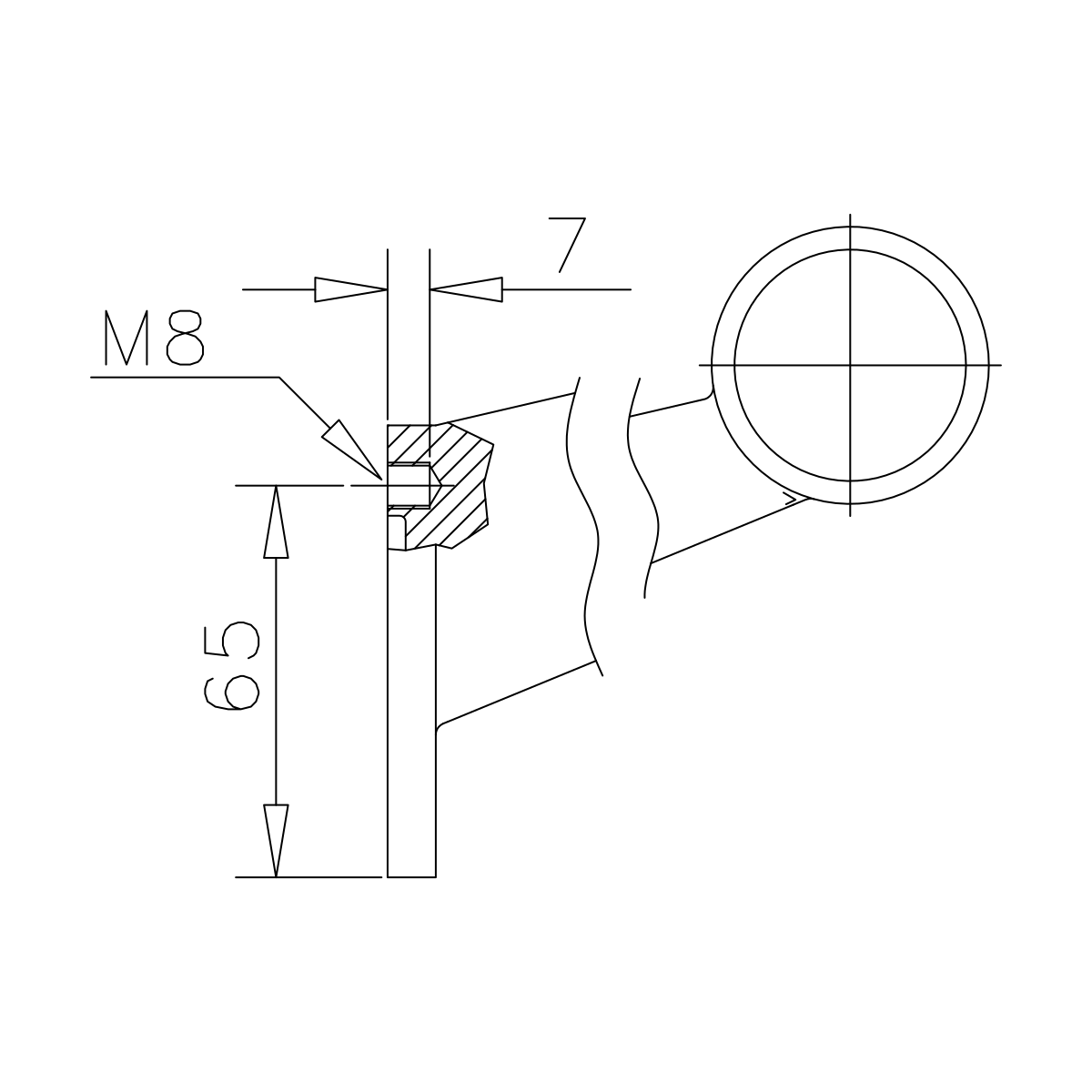

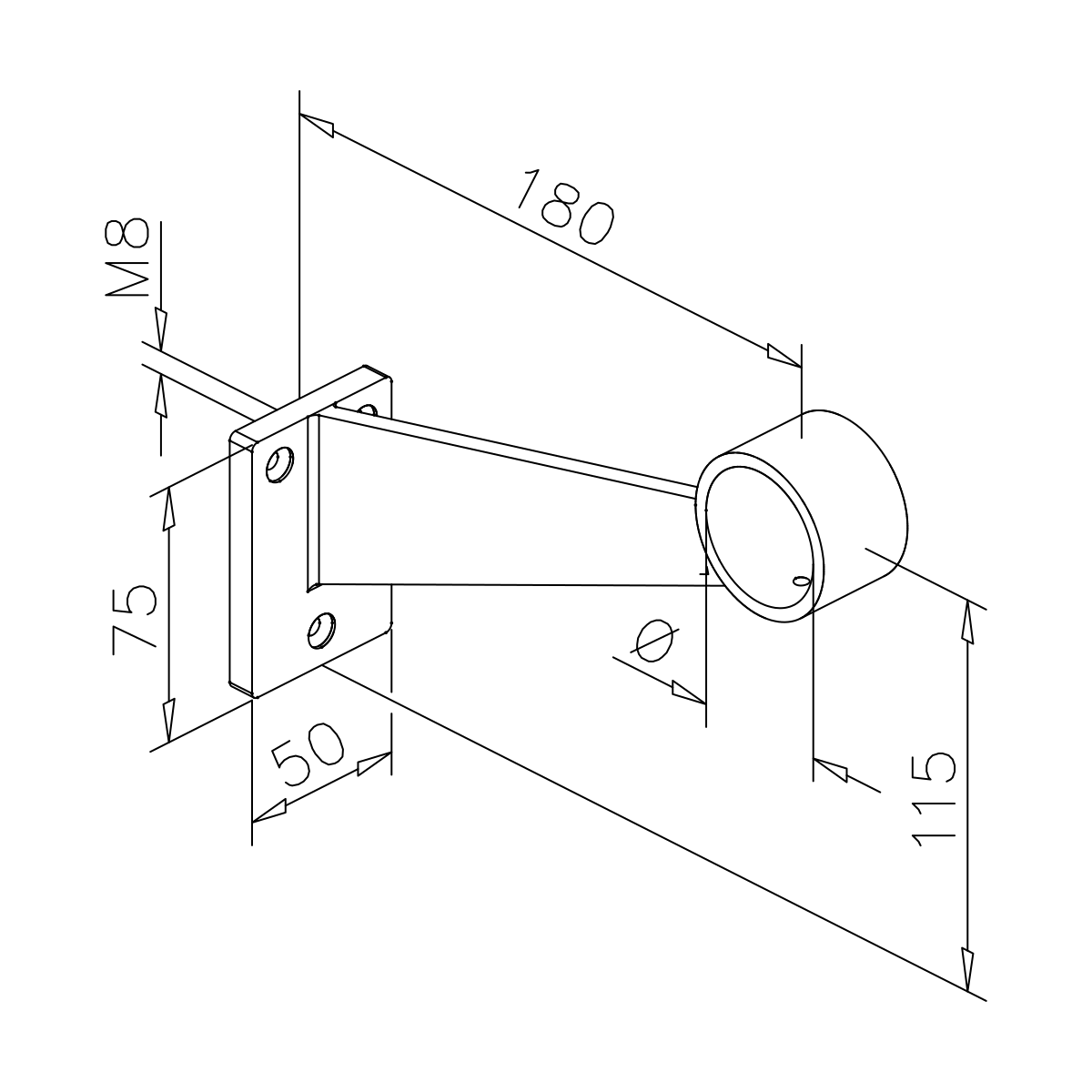

The footrest SYGRID with screw-on plate is suitable for wall mounting. This is screwed with three M8 screws. The tube in 38 or 50 mm is fixed with a grub screw. Find the right design for any counter, bar or restaurant and provide a relaxed footstep.
Screws are included in matching color.
Surfaces to choose from:
- Stainless steel
- Chrome
- brass
- Matte brass
- Black
Properties
| Depth in mm: | 203 mm |
|---|---|
| Diameter Ø: | 38,1 mm (1,5") |
| Finish: | Stainless steel design |
| Height in mm: | 138 mm |
Downloads
| 77-11-0109-038.dxf | CAD file | 958.26 KB | dxf |
|---|
7 variants available
