End bracket for mounting on wood Relinda
Product number:
77110660006-20
Description

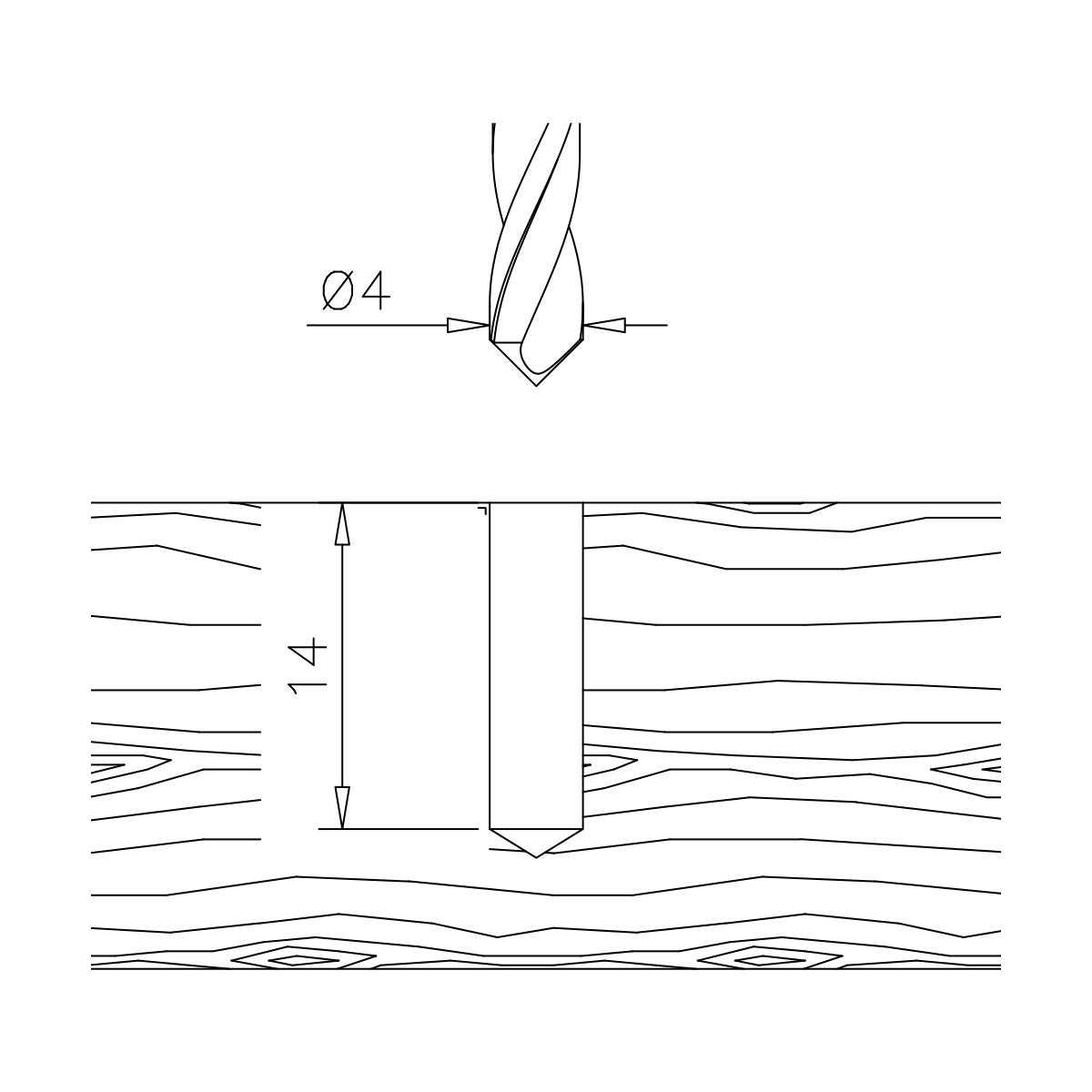

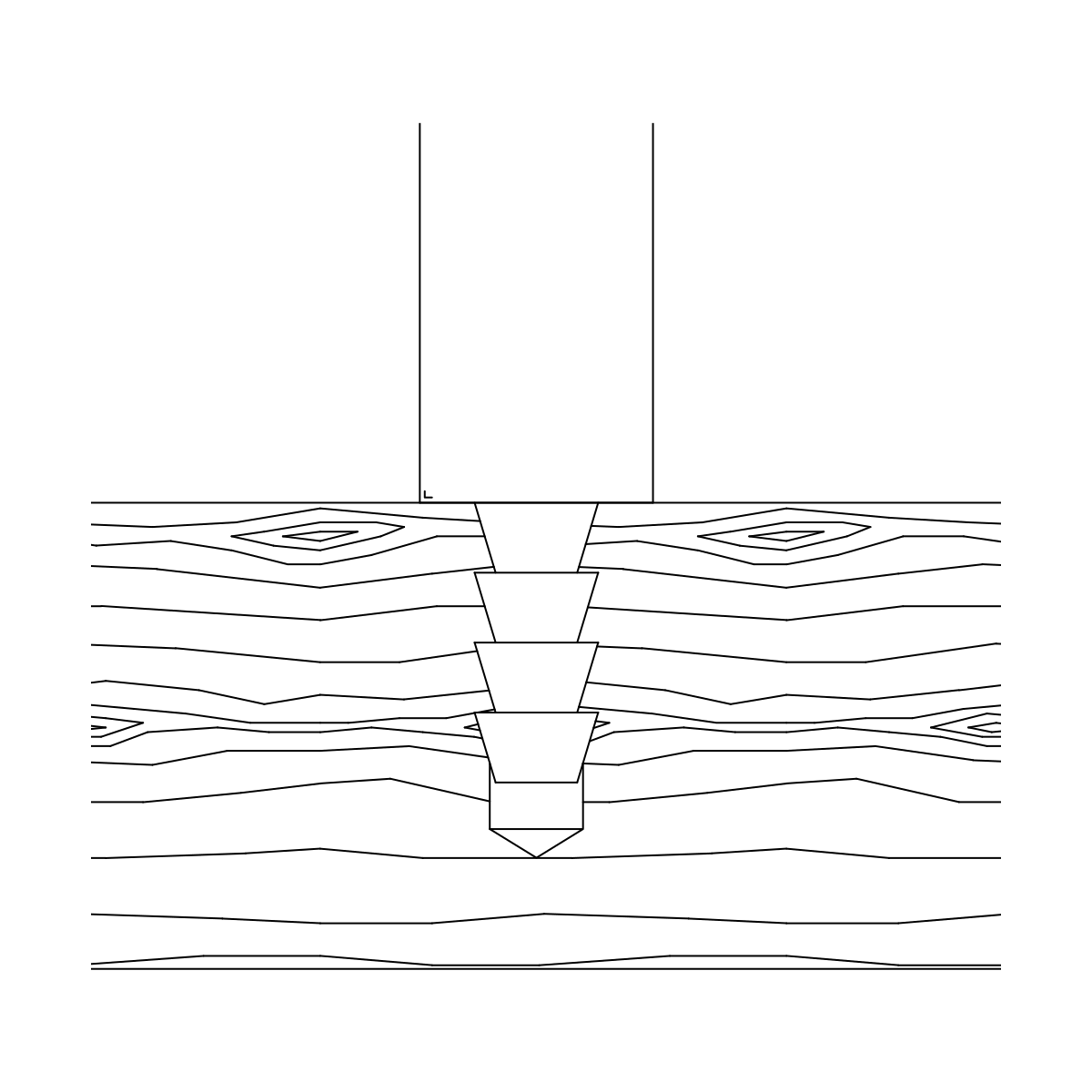

The end support for wood mounting RELINDA forms the conclusion of a mini-rail system. The end support has a hole on one side for a rod with a diameter of 6 mm or 10 mm. The end support has a thread that is screwed directly into the wood. This makes the endstütze easy to install and thus forms a neat finish for your mini-rail system.
The end support is available in stainless steel, chrome, brass and brass matt designs. .
Properties
| Diameter Ø: | 6,0 mm |
|---|---|
| Finish: | Stainless steel design |
Downloads
| 77-11-0660-010.dxf | CAD file | 391.92 KB | dxf | ||
|---|---|---|---|---|---|
| 77-11-0660-006.dxf | CAD file | 391.76 KB | dxf |
7 variants available
