Glass connector 135°, rounded July
Don't see prices yet or want information about delivery?
Simply login with your G-Fittings account and you will see all the important information.
- Exclusive B2B Prices
- Fast & Easy Ordering Process
- Real-Time Availability & Stock Levels
- Purchase on Account for Business Customers
Do you need assembly instructions, CAD drawings, certificates or similar? You will find everything you need here on our website.

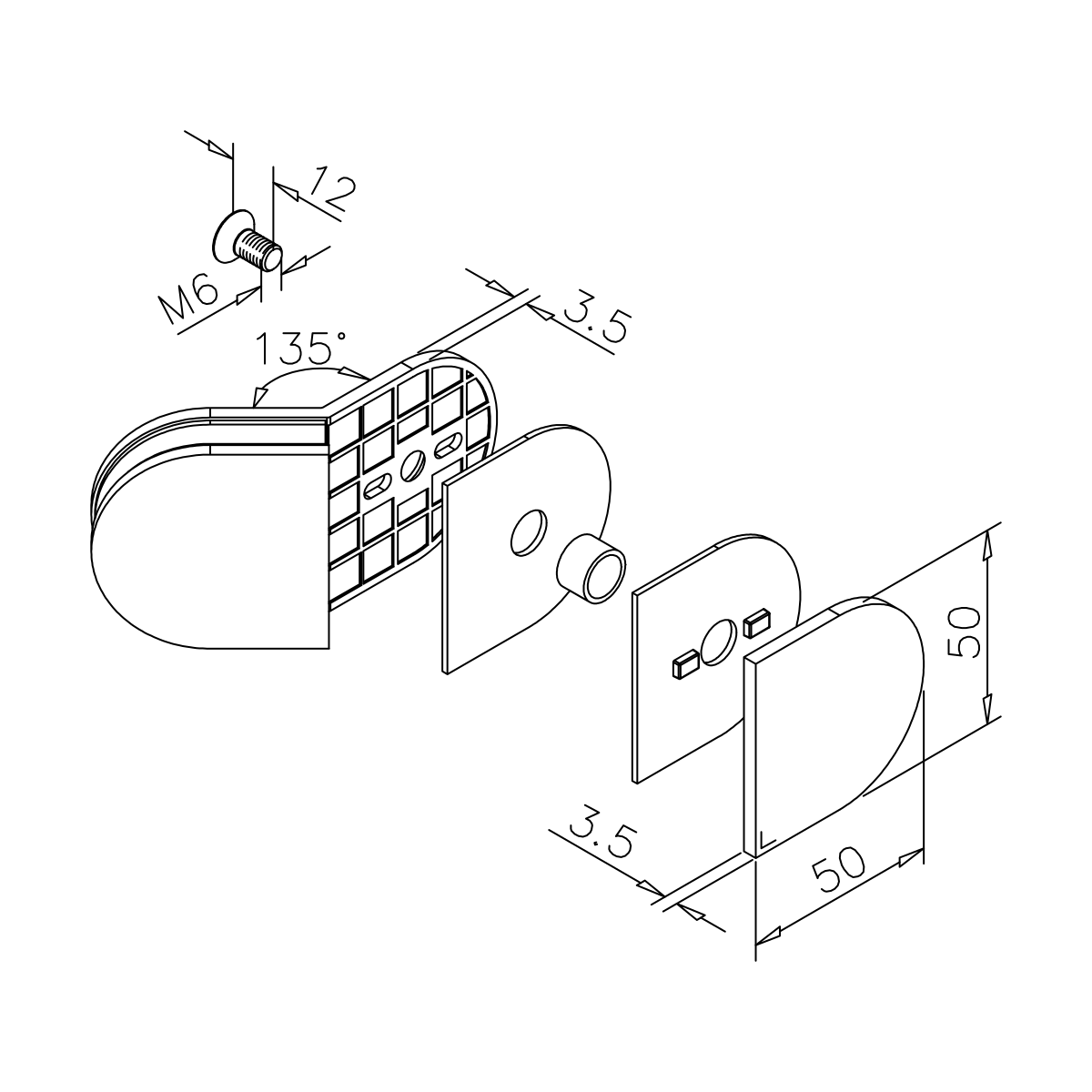

The JULY glass connector enables a stable 135° connection between two glass panels. Thanks to its rounded design, it blends harmoniously into modern glass designs and avoids sharp edges in the corner area. Made of rust-free V2A stainless steel (AISI 304), the connector is available for glass thicknesses of 8 mm or 10 mm. Glass processing with a 12 mm hole is required for installation. The stainless steel design and chrome design surfaces are available for visual customization.
| Diameter Ø Glass hole: | 12 mm |
|---|---|
| Finish: | Stainless steel design |
| Glasstärke: | 8 - 10 mm |
| Material: | Stainless steel 304 (V2A) |
| Mounting type: | All-glass wall |
| 77-40-0101-135_datasheet_G-FITTINGS.pdf | Datasheet | 268.24 KB | |||
|---|---|---|---|---|---|
| 40-0101-135-xx.dxf | CAD file | 1.27 MB | dxf |
