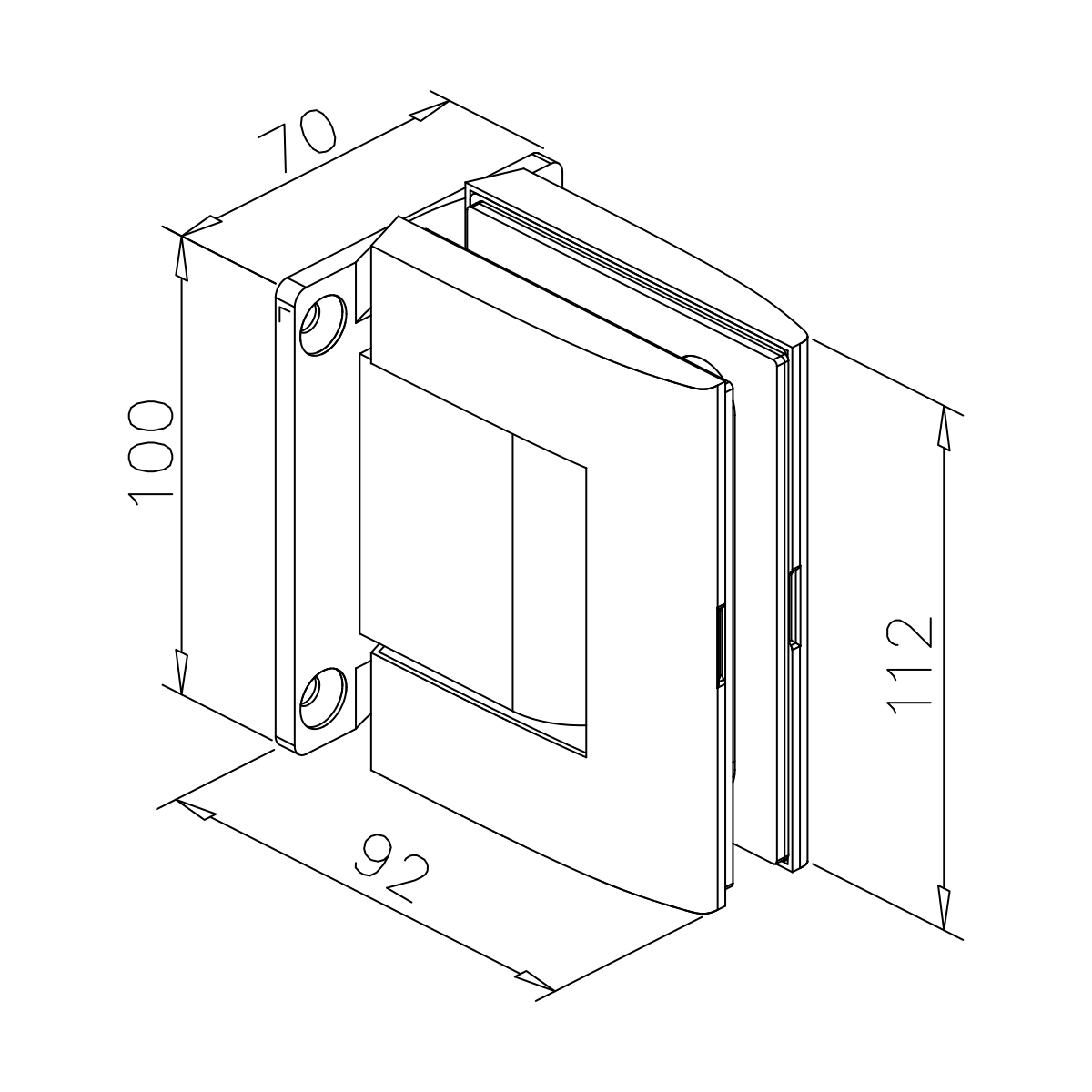

Glass door hinge set, hydraulic / self-closing Azra
The hydraulic glass door hinge set AZRA offers a successful combination of design, high functionality and durability to add elegance and comfort to your glass doors. These high-quality hinges are available in stainless steel and black to perfectly match your individual design requirements.
Made from durable stainless steel, the glass door hinge ensures long-lasting and reliable performance. With its adjustable zero position, it is perfect for glass doors with a thickness of 8 to 12 mm. The set is capable of supporting doors up to 1000 mm wide and weighing up to 100 kg, allowing for a variety of residential and commercial applications. The Azra glass door hinge can be installed in both DIN left and DIN right versions to optimally meet the requirements of your door installations.
The special highlight of this hinge is its intelligent functionality: in the range from 0 to 80 degrees, it has a soft-close function that closes the door gently and quietly, which not only prevents noise pollution but also minimizes the risk of door damage. At a radius of 85-90 degrees, the hinge holds the door firmly in an open position and the closing speed of the door can be easily adjusted to individual requirements using an Allen screw.
| Adjustable: | no |
|---|---|
| Djustable zero position: | no |
| Door type: | Swinging |
| Finish: | Stainless steel design |
| Flush mounted: | no |
| Glass cut outs: | yes |
| Glass thickness: | 8 - 12,76 mm |
| Hydraulic: | yes |
| Material: | Aluminium |
| Mounting type: | Glass / Wall |
| Opening direction: | DIN left / DIN right |
| Quantity: | 2 |
| Self-closing: | yes |
| max. door weight: | 100 kg |
| max. door width: | 1000 mm |
| 77-41-4612-180-xx.dxf | CAD file | 5.19 MB | dxf | ||
|---|---|---|---|---|---|
| 77-41-4612-090_datasheet_G-FITTINGS.pdf | Datasheet | 587.60 KB | |||
| 77-41-4612-090-xx.dxf | CAD file | 3.35 MB | dxf |
