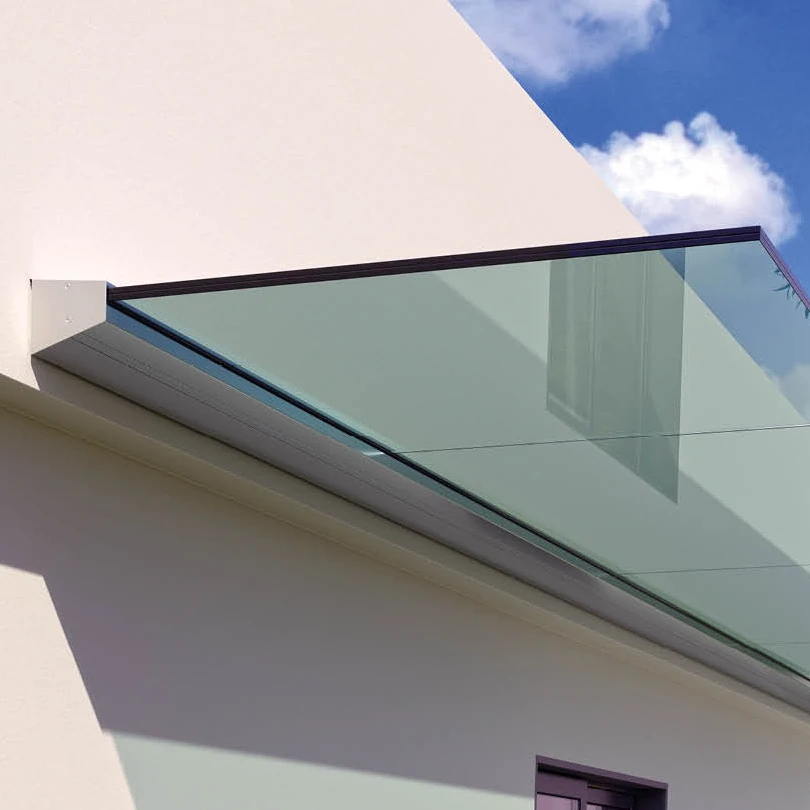

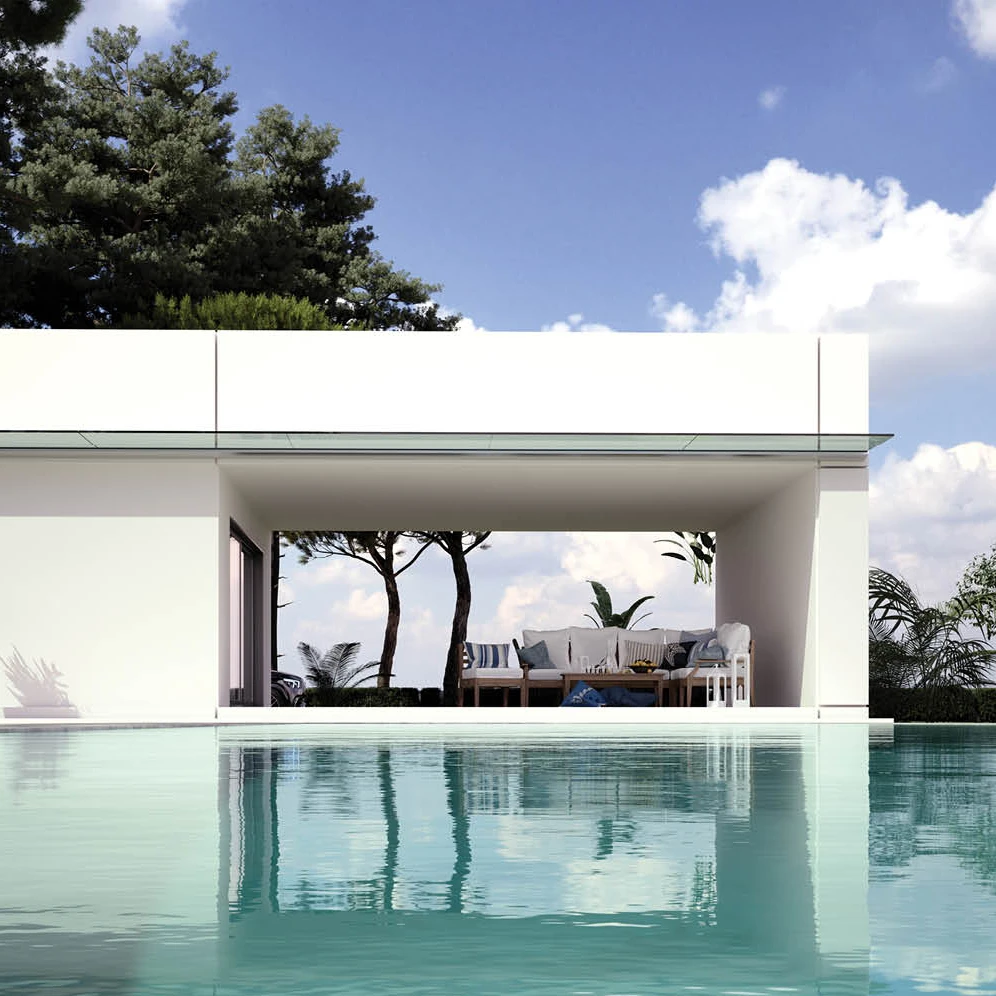

Cantilevered glass canopy FARINA
FARINA is a self-supporting canopy made of glass that does not require any disruptive tie rods. The load is absorbed entirely by the wall connection profile, which creates a minimalist look on the façade. Thanks to the modular design, even wide glass fronts can be realized by mounting several profiles in a row.
The canopy is designed for high loads of up to 9.81 kN/m². Different projections are possible depending on the selected glass thickness. With 17.52 mm thick glass, the maximum projection is 1300 mm. For larger canopies with a depth of up to 1600 mm, glass with a thickness of 21.52 mm or 25.52 mm is used. A major technical advantage: no edge cut-outs are required for the glass, which simplifies planning and ordering.
Installation is carried out using a clamping profile with concealed screws. Once the glass pane has been aligned, aluminum cover caps are fitted using "snap-fit" so that no screw heads remain visible. The system can optionally be fitted with LED lighting, with the cable routing discreetly concealed in the profile.
All the advantages at a glance:
- No tension rods required
- Simple installation and concealed fixing
- Glass width up to 3000 mm
- Glass thickness: 17.52 mm (max. projection 1300 mm) or 21.52 mm, 25.52 mm
- Surfaces: raw (untreated), silver matt anodized, white RAL 9010 or deep black RAL 9005
- RAL color possible
- max. projection 1600 mm (with 21.52 mm and 25.52 mm glass)
- up to 9.81 kN/m² load capacity
- Several wall profiles can be mounted in a row
- Can be cut to individual dimensions
- No edge cut-outs required in the glass
- Optional LED lighting
| Adjustable tilt: | no |
|---|---|
| End caps: | yes |
| Finish: | RAL 9010 Pure white , RAL powder-coated , Stainless steel design , deep black, RAL 9005 , raw , silver matt anodized |
| Glass: | SentryGlas® 17.52 mm , SentryGlas® 21.52 mm , SentryGlas® 25.52 mm |
| Glass cut outs: | no |
| Glass included: | no |
| Glass thickness: | 17,52 mm (8 - 1,52 - 8 mm) , 21,52 mm , 25,52 mm (10 - 1,52 - 10 mm) |
| Load capacity: | max. 1000 kg/m² |
| Material: | Aluminium |
| Mounting on: | Wall |
| Pre-drilled profile: | yes |
| Self-supporting: | yes |
| max. projection: | 1600 mm |
