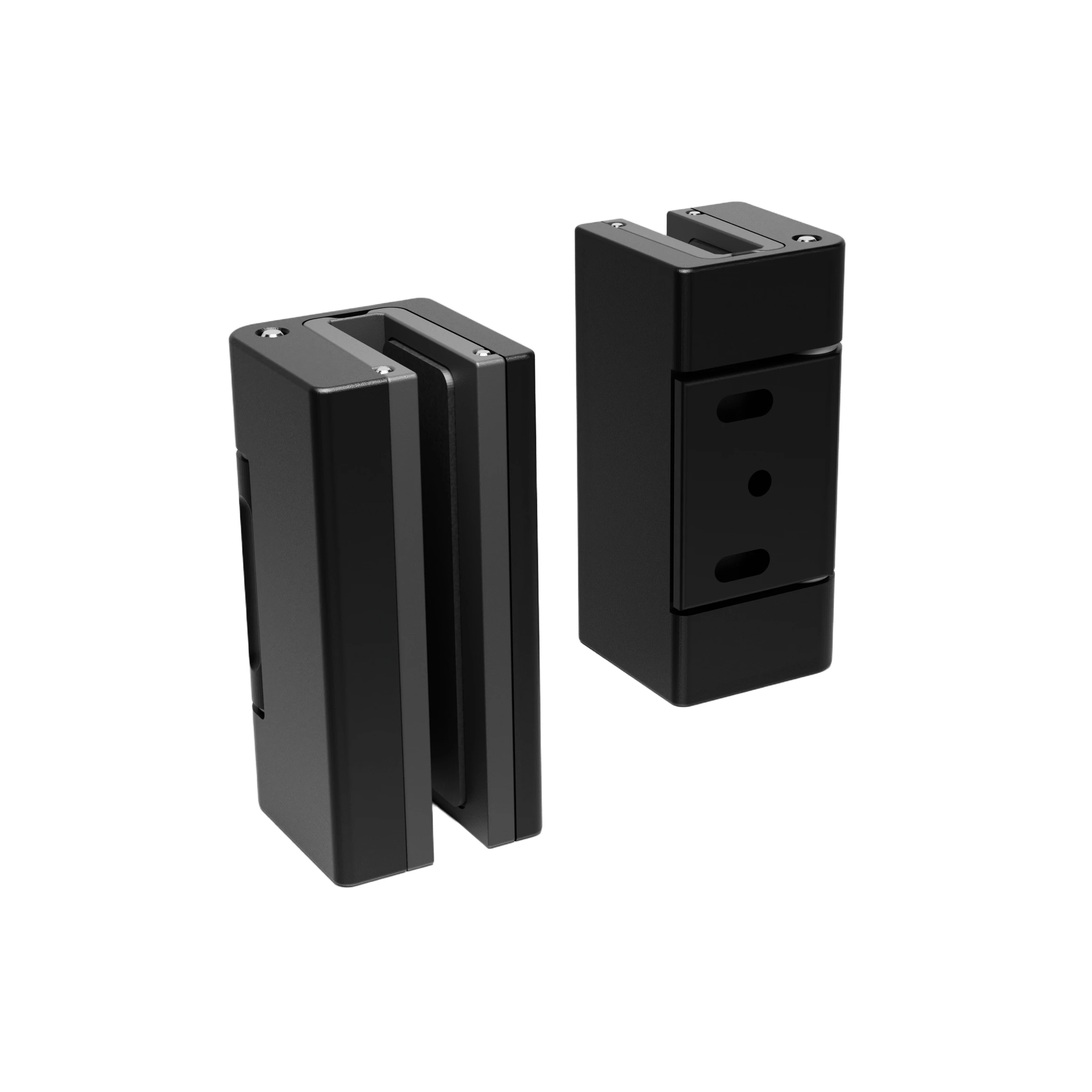

Glass door hinge for clamping Tine
Product number:
77452301000-26
Description
The THIENE glass door hinge enables effortless and drill-free installation of glass doors. Thanks to the innovative clamping technology, neither screws nor gluing are required, making it particularly easy to install. It is suitable for glass thicknesses from 8 to 12.76 mm and can be used as a glass/wall or all-glass hinge. With a load capacity of up to 100 kg (with 2 hinges) and an adjustable zero position, it offers high stability and flexibility. The hinge is self-closing and available for both DIN left and DIN right doors. Made of aluminum, it is available in stainless steel, chrome and black.
Highlights:
- for 8 - 12.76 mm glass
- Glass / wall or all-glass installation
- up to max. 100 kg door weight
- Self-closing
- Stainless steel, chrome and black design
- Opening direction DIN left / right
- Adjustable zero position
- No glass drilling necessary
Key Features
for 8 - 12.76 mm glass
self-closing
Mounting without drilling
Up to 100 kg door weight
Adjustable zero position
Properties
| Djustable zero position: | no |
|---|---|
| Door leaf material: | Glass |
| Door type: | Stopper |
| Finish: | Anthracite black design , Chrome design , Stainless steel design |
| Glass cut outs: | no |
| Glasstärke: | 8 mm - 12,76 mm |
| Hydraulic: | no |
| Material: | Aluminium |
| Mounting type: | Glass , Glass / Wall |
| Opening direction: | DIN left / DIN right |
| Self-closing: | yes |
| max. door weight: | 100 kg |
| max. door width: | 1200 mm |
Downloads
| 77-45-2301-000_datasheet_G-FITTINGS.pdf | Datasheet | 361.96 KB |
|---|
