Hinges

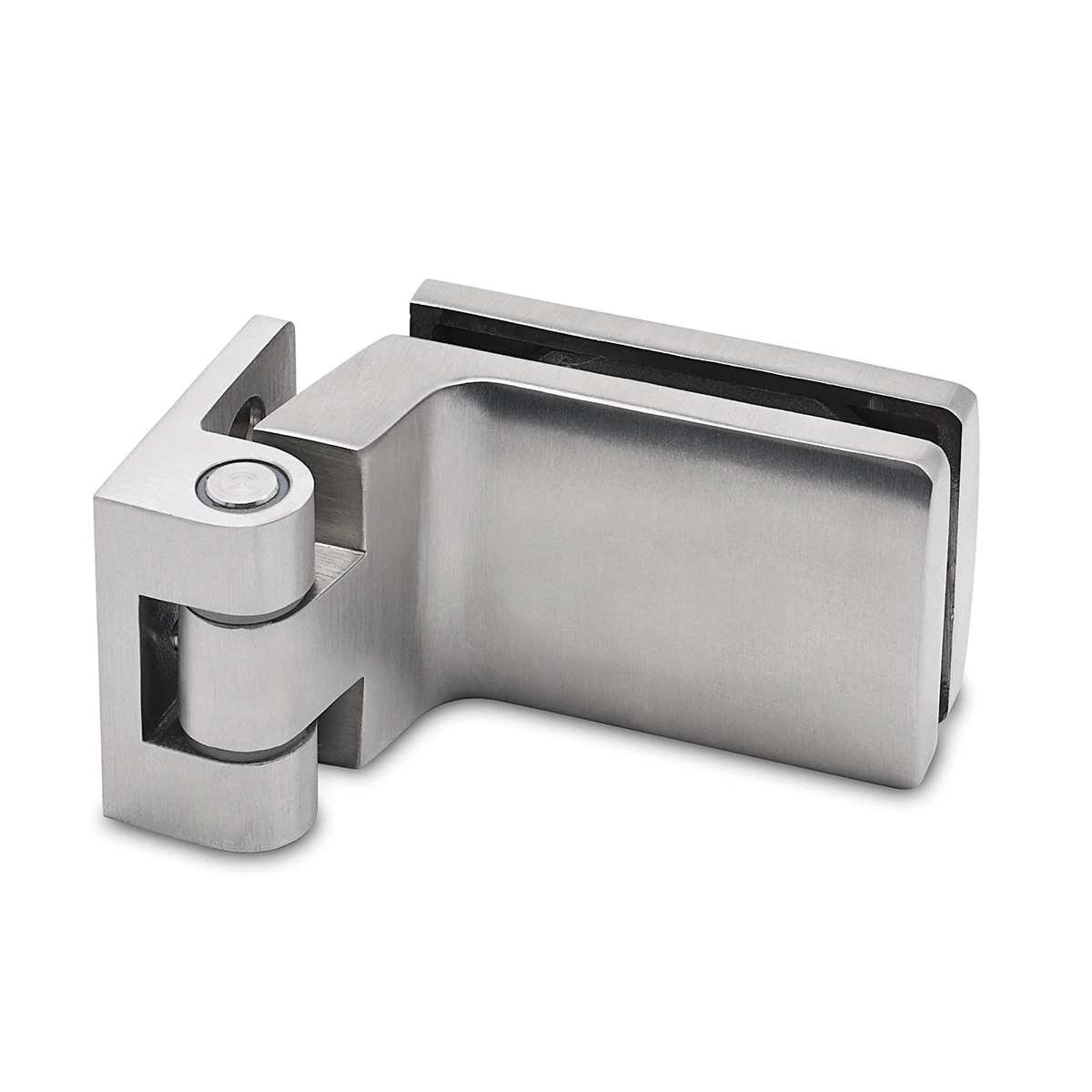

Glass door hinge for panel profile, adjustable Anneliese
Surface:
Stainless steel design, stainless steel material
Experience the highest quality and flexibility with our adjustable glass door hinge for the frame profile ANNELIESE. This hinge is the ideal solution for high-quality glass doors and offers numerous advantages in terms of stability, design and ease of use.
Properties:
Load capacity and dimensions:
Suitable for glass doors with a maximum door width of 1200 mm
Supports a maximum door weight of up to 70 kg.
Compatible with glass thicknesses from 8 mm to 12.76 mm.
Material and surfaces:
Made of robust V2A stainless steel (Stainless Steel AISI 304) for high durability and corrosion resistance
Available in two elegant designs: stainless steel design and anthracite design.
Installation and adjustment:
Easily adjustable to ensure precise alignment and secure hold
Requires 12 mm diameter glass holes for installation
Specially designed for single-action doors.
Advantages at a glance:
High load-bearing capacity and stability: Ideal for large-format and heavy glass doors
Elegant design: Two stylish finishes to choose from, suitable for modern and sophisticated interiors.
Easy installation: Adjustable components make installation easy.
Use the adjustable glass door hinge for frame profile ANNELIESE to securely and stylishly fasten your glass doors. This hinge offers you the ideal combination of functionality and design and meets the highest standards of quality and aesthetics.

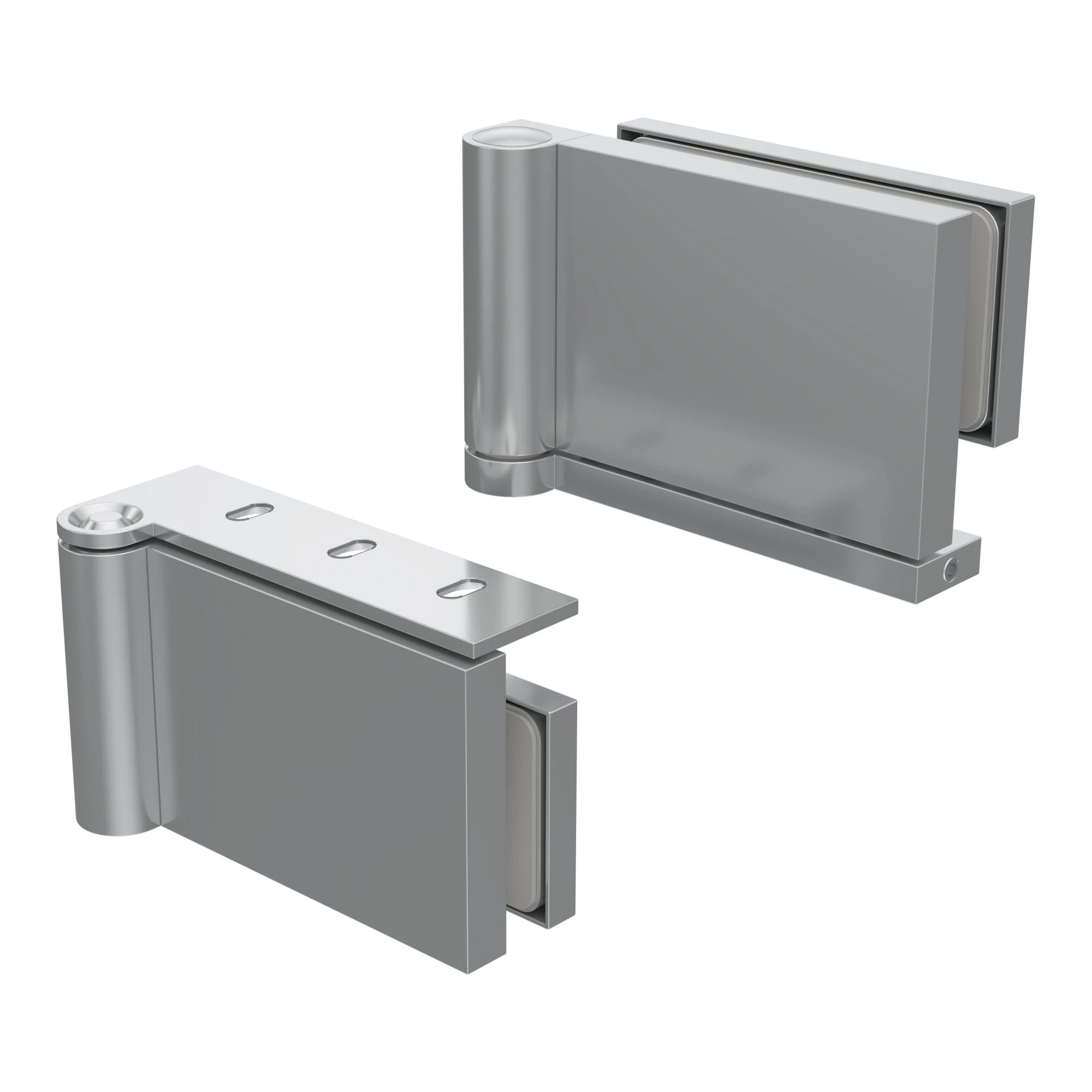

Glass door hinge set, hydraulic / self-closing Azra
Mounting type:
Glass / Wall
|
Surface:
Stainless steel design, stainless steel material
The hydraulic glass door hinge set AZRA offers a successful combination of design, high functionality and durability to add elegance and comfort to your glass doors. These high-quality hinges are available in stainless steel and black to perfectly match your individual design requirements.
Made from durable stainless steel, the glass door hinge ensures long-lasting and reliable performance. With its adjustable zero position, it is perfect for glass doors with a thickness of 8 to 12 mm. The set is capable of supporting doors up to 1000 mm wide and weighing up to 100 kg, allowing for a variety of residential and commercial applications. The Azra glass door hinge can be installed in both DIN left and DIN right versions to optimally meet the requirements of your door installations.
The special highlight of this hinge is its intelligent functionality: in the range from 0 to 80 degrees, it has a soft-close function that closes the door gently and quietly, which not only prevents noise pollution but also minimizes the risk of door damage. At a radius of 85-90 degrees, the hinge holds the door firmly in an open position and the closing speed of the door can be easily adjusted to individual requirements using an Allen screw.
Shower door fitting Emily
Mounting type:
Wall / Glass
|
Surface:
silver matt anodized
The EMILY shower door fitting with narrow wall connection profile lifts the door comfortably when it is opened. The fitting is suitable for 6 mm glass and is available in different surfaces.
Glass thickness 6 mm toughened safety glass
with lifting/lowering mechanism for easy opening and closing (± 4 mm)
Fixed on both sides at 90°
Variable profiles compensate for uneven walls (± 8 mm)
180° swing doors
Profile length 2000 mm
different surfaces
High quality fittings
Plastic seals for wall and floor (optionally available)
Use as a corner shower, shower cubicle next to a bathtub, walk-in shower, alcove shower and U-shape shower
Scope of delivery
1 x wall profile
1 x intermediate profile
1 x glass profile
2 x end caps
1 x Ø 3 mm metal drill bit
1 x 5mm Allen Wrench
1 x 2.5mm Allen Wrench
mounting screws and dowels

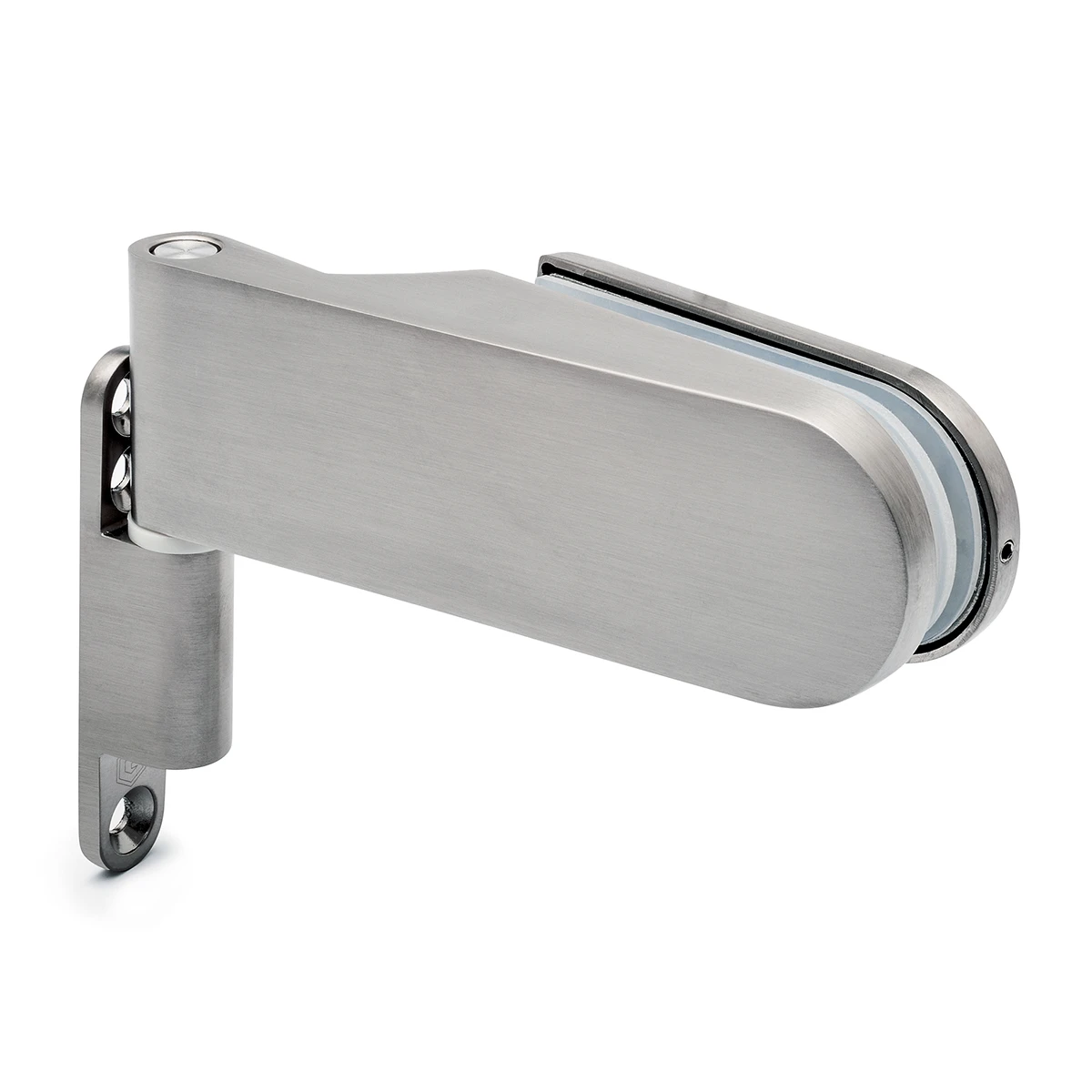

Glass door hinge set, hydraulic / self-closing Josjua
Mounting type:
Glass / Wall
|
Surface:
Stainless steel design, stainless steel material
The glass door hinge set Josjua - The perfect combination of function and design
Our glass door hinge set JOSJUA unites first-class functionality with elegant design. This hydraulic and self-closing hinge set is available in versions for glass / wall mounting and glass / glass mounting, optionally in stainless steel or black.
Features at a glance:
Various applications: The set is suitable for glass thicknesses from 8 to 12.76 mm and can support up to 75 kg, making it ideal for doors and glass partitions.
Adjustable Hydraulic Damper: The hinge features an adjustable hydraulic damper that gently cushions and closes the door, eliminating noise and sudden slamming - the damper is set at an angle of 0° - 25° or 25° - 50°.
Self-closing: the hinge automatically closes the door at a radius of 85°, which contributes to safety and energy efficiency.
Large movement space: The hinges achieve a movement space of 180°.
Locking function: In the range of 85° to 95°, the hinge set has a locking function that holds the door securely in the open position.
Our Josjua glass door hinge set offers the perfect solution for all your frameless glass door needs. With its versatility and adjustable functions, it perfectly suits your needs and provides an elegant and efficient use of space.

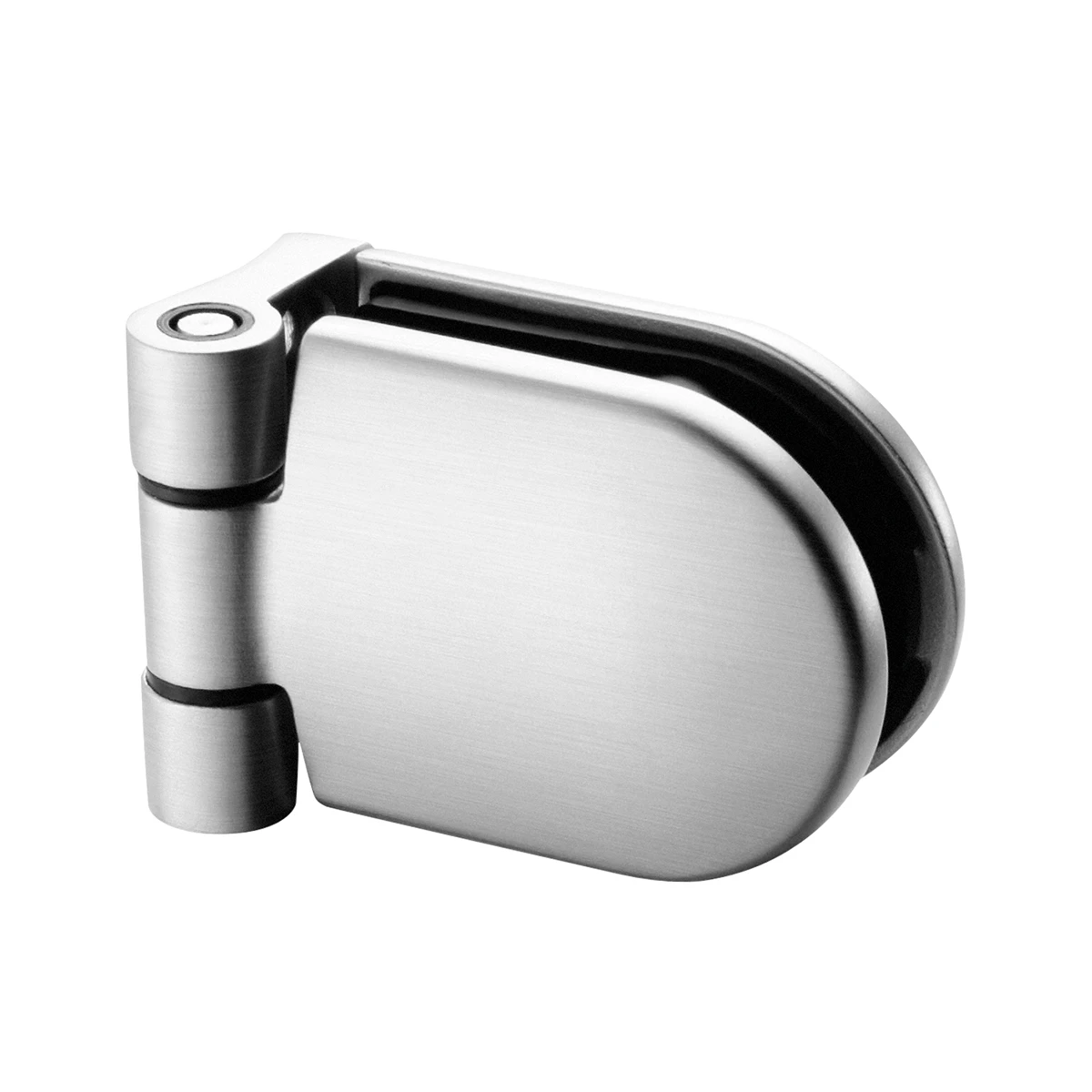

Glass door hinge Aksun
Mounting type:
Glass / Wall
|
Surface:
Stainless steel design, stainless steel material
Discover the versatile and high-quality glass door hinge AKSUN from G-Fittings, an indispensable glass door fitting for all-glass installation and wall mounting. This hinge combines functionality, stability and a modern design that blends perfectly into any interior.
Features at a glance:
Design variety: Available in the elegant finishes stainless steel, chrome or black, the AKSUN glass door hinge suits any style and gives your door an elegant look.
Flexible mounting options: Suitable for glass/glass and glass/wall mounting, it offers versatile application options for various installation situations.
High load capacity: With a maximum door width of 800 mm and a maximum door weight of 45 kg, the hinge is particularly robust and durable
Compatibility: The hinge is designed for glass thicknesses of 6 - 10 mm and can be mounted both DIN left and DIN right, allowing for flexible and easy installation.
The AKSUN glass door hinge is the perfect choice for anyone who values quality and design. It not only ensures that your glass door is held securely in place, but also creates an appealing look in your living or business space.
Door hinge Pagan
Connection:
for tube Ø 38.1 - 42.4 mm
The glass hinge PAGAN from G-Fittings is a glass fitting for all-glass mounting and pipe mounting.
Features at a glance:
Stainless steel design
Mounting: glass/glass, tube Ø 38.1- 42.2 mm or tube Ø 48.3 - 50.8 mm
max. door weight: 45kg
DIN left / DIN right
Glass thickness: 6 - 12.76 mm
Glass door hinge Gilda
Opening direction:
DIN left
|
Surface:
silver matt anodized
Complete set including upper and lower corner fitting
Opening direction DIN left / DIN right
different surfaces such as stainless steel, silver matt anodized and black
Quick and easy assembly
Glass thickness 8 - 12 mm
No floor recess required
2-way adjustment (±3mm left and right / ±8mm alignment adjustment)
SALE%
Glass door hinge for panel profile, adjustable Annemarthe
Surface:
Stainless steel design, stainless steel material
The adjustable glass door hinge for frame profiles ANNEMARTHE sets standards in terms of functionality and design. Manufactured from high-quality V2A stainless steel, the hinge is available in attractive stainless steel, chrome and black versions to blend seamlessly into different interior designs.
With its excellent adaptability, this hinge is designed for glass thicknesses from 8 to 12 mm, allowing flexible integration into a wide variety of glass door designs. The maximum door width of 1200 mm and an impressive load capacity of 70 kg make it the ideal choice for a wide range of applications.
Whether you prefer a modern stainless steel look, a shiny chrome accent or a timeless black look - this adjustable glass door hinge meets the highest standards in terms of aesthetics, adaptability and load-bearing capacity.
Glass door hinge Leni
Mounting type:
Wall / Glass
|
Surface:
Stainless steel design, stainless steel material
The glass door hinge LENI from G-Fittings is a door fitting available in 2 mounting options. The hinge achieves a 90° range of motion.
The hinge has an automatic closing function from an opening angle of 30°.
The functions at a glance:
Stainless steel, chrome and black design
Glass thickness 8 - 10 mm
Soft-close function at 0° - 30°
Fixing function at 85° - 90°
All-glass wall or glass / wall mounting
Hydraulic glass door hinge Liam
Mounting type:
Glass / Glass
|
Surface:
Stainless steel design, stainless steel material
The hydraulic glass hinge LIAM from G-Fittings is a pendulum fitting available in 2 mounting options. The hinge achieves a range of motion of 180°.
The glassdoor hinge Liam has a soft-close function in a radius of 0° - 80° and a locking function, which keeps the door open at 85° - 90°. About a 4 mm hexagon head screw can be adjusted the strength with which the door closes in the self-return.
The hinge can thus be used in many ways - in their own living room door, in the Büro to design the meeting room through a transparent glass wall or even in their bathroom for the appropriate glass shower.
The functions at a glance:
Stainless steel and black design
Glass thickness 8 - 10mm
Soft-close function at 0° - 80°
Fixing function at 85° - 90°
All-glass wall or glass / wall mounting
Glass door hinge, adjustable Tatum
Mounting plate:
double-sided foot
|
Mounting type:
Glass / Wall
|
Surface:
Stainless steel design, stainless steel material
The G-Fittings swing door hinge TATUM is ideal for shower and glass doors of all kinds. TATUM is a hinge for swing doors made of glass. Choose from different mounting types and surfaces such as stainless steel, chrome or black design.
Technical specifications:
Glass thickness 8 - 10 mm
different surfaces
high load capacity
Opening angle: DIN right and left 90°
Automatic closing from 30° adjustable
Hinge for swing door
Glass door hinge Akasha
Mounting plate:
double-sided foot
|
Mounting type:
Glass / Wall
|
Surface:
Stainless steel design, stainless steel material
The G-Fittings glass door hinge AKASHA is a high-quality hinge that has been specially developed for swing doors and enables an opening of up to 180 degrees. With the ability to tilt inwards and outwards 90 degrees at a time, the hinge for glass doors offers maximum flexibility and ease of use. This versatile hinge is an ideal choice for shower and glass doors in various applications.
Glass door hinge, adjustable Genie
Mounting type:
Glass / Wall
The GENIE adjustable glass door hinge offers a high-quality and versatile solution for glass doors in various mounting configurations, including glass/glass 90°, glass/glass 180° and glass/wall. Made from hard-wearing AISI 304 (V2A) stainless steel, it is robust and durable.
With a diameter of 16 mm for the glass hole, the glass door hinge is suitable for glass thicknesses of 8-12 mm. It enables precise adjustment and alignment of the door thanks to its adjustable zero position function. This hinge is ideal for all-glass walls and offers a reliable fixing solution.
The stainless steel finish gives the hinge a modern and attractive appearance. It is designed for doors with a maximum width of 900 mm and a maximum weight of 50 kg. The hinge is self-closing and therefore offers additional convenience and security.
Glass door hinge Helena
Mounting type:
Glass / Wall
|
Surface:
Stainless steel design, stainless steel material
The glass hinge HELENA is a glass hinge for glass mounting or wall mounting.
The functions at a glance:
Stainless steel, chrome, black design
Mounting: glass / wall, glass / glass
max. door weight: 50kg
DIN left / DIN right
glass thickness: 6 - 10 mm
max. door width: 1200 mm
Diameter Ø glass hole: 14 mm
Glass door hinge Kirstin
Mounting type:
Glass / Wall
|
Surface:
Stainless steel design, stainless steel material
The KIRSTIN glass door hinge made of V2A stainless steel is a high-quality and durable hinge for mounting single-action glass doors. The hinge is available in the mounting versions for all-glass systems or glass / wall. With a choice of three surface designs in stainless steel, chrome or black design, the hinge fits into any desired application.
The Kirstin glass door hinge is designed for a glass thickness of 6 - 10 mm and for a maximum door width of 900 mm and a maximum door weight of 45 kg. The opening direction can be adjusted to DIN left or DIN right standard. Glass processing of the glass door is required for installation.
Glass door hinge Suzanne
Mounting type:
Glass / Wall
|
Surface:
Stainless steel design, stainless steel material
The SUZANNE glass door hinge combines a modern design with high functionality and is the perfect solution for your glass doors. Made from high-quality stainless steel and available in elegant chrome, stainless steel and black finishes, this hinge adds a stylish accent to any room.
Advantages of the SUZANNE glass door hinge:
Versatile application options: Flexible installation for all-glass and glass / wall
High load capacity: Supports doors weighing up to 45 kg
Elegant design: Available in chrome, stainless steel and black for harmonious integration into your room concept
Easy installation: Compatible with DIN left and DIN right
Adaptable: Suitable for glass thicknesses from 6 to 10 mm and door widths up to 900 mm
Corner patch fitting with pivot and stop Ingeborg
Surface:
Stainless steel design, stainless steel material
The corner patch fitting INGEBORG is the perfect solution to add elegance and functionality to your glass doors. With its outstanding features, it offers a reliable and stylish fixing option for glass doors.
Glass thickness: Ingeborg is specially designed for glass thicknesses of 10 to 12 mm. This ensures a secure and solid connection of your glass door.
Surface options: You can choose between stainless steel design or black design to perfectly match the hinge to your interior design.
Door type: This hinge is great for swinging doors, allowing easy and convenient movement in both directions.
Maximum door width and weight: With an impressive maximum door width of 1100mm and a maximum door weight of 100kg, this hinge provides the stability needed for large glass doors.
The Ingeborg mortise and tenon hinge is the ideal choice if you want to install high quality glass doors in your home, office or business. With its versatility, modern finish options and sturdy construction, it gives you the ability to add style and function to glass doors in a variety of spaces.
Hinge adapter Lucilla
Connection:
flat
The hinge adapter LUCILLA with M6 thread.
The adapter can be rotated 360°. The glass pane can be moved flexibly in the mounted adapter. The glass pane is fixed and protected with a grub screw and internal rubbers.
Connection type:
flat
for pipe Ø 25.4 - 30 mm
für tube Ø 38.1 - 42.2 mm
Glass door hinge Victorine
Surface:
Stainless steel design, stainless steel material
The glass hinge VICTORINE from G-Fittings is a glass hinge for wall mounting.
Features at a glance:
Stainless steel, chrome, black design
Mounting: glass / wall
max. door weight: 50kg
DIN left / DIN right
glass thickness: 6 - 10 mm
max. door width: 1200 mm
Diameter Ø glass hole: 14 mm
Glass door hinge Cassie
Surface:
Stainless steel design, material zamak
The door hinge CASSIE was specially developed for glass doors. Two additional holes hold the glass securely in the hinge. The glued-on cover caps ensure a clean look for the door hinge. For the right design, Cassie is offered in 3 surfaces - stainless steel, silver matt anodized and in a noble black design.
Glass door hinge Jindy
Surface:
Stainless steel design, material zamak
Discover the JINDY glass door hinge, a reliable and stylish element for your glass doors. With a diameter of 16 mm and suitable for glass thicknesses of 8-10 mm, it offers a solid fixing option on the wall. Made from high quality zamak and finished with an elegant stainless steel or chrome finish, the hinge blends seamlessly into any modern environment. With a maximum door width of 1200 mm and a maximum door weight of 50 kg, it is perfect for single-action doors. Designed for DIN left and DIN right opening directions, it is the ideal choice for a variety of door applications.
Glass door hinge Jelse
Surface:
Stainless steel design, stainless steel material
The JELSE glass door hinge offers a reliable solution for swing doors in residential and commercial environments. Made from high-quality stainless steel AISI 304 (V2A), it is robust and durable. The hinge is suitable for glass thicknesses of 8-10 mm and can be mounted both on the ceiling and on the floor.
With different finish options such as stainless steel design, chrome and black design, the hinge adapts seamlessly to different interior styles. It is designed for doors with a maximum width of 900 mm and a maximum weight of 40 kg. The opening direction can be adjusted according to DIN left or DIN right standards.
Please note that matching rubber inserts must be purchased as accessories to ensure optimum fit and function.
Tenon hinge Karen
Surface:
Stainless steel design, stainless steel material
Our high quality pivot hinge KAREN for glass doors is the perfect choice to bring elegance and functionality to your rooms. Made of sturdy AISI 304 stainless steel (V2A), these hinges offer a durable solution for your swinging doors.
Diameter Ø Glass Hole: With a glass hole of 20 mm, these hinges are specifically designed for glass thicknesses of 10 to 12 mm. This ensures a secure and reliable fixing of your glass door.
Flush: These hinges are not flush, which means that they protrude stylishly from your door, making them an attractive design element.
Surface options:You can choose from stainless steel design or black design to match the hinge to your individual interior style.
Self-closing: These hinges are not self-closing, making them ideal for swinging doors that allow free movement in both directions.
Maximum door width and weight: With an impressive maximum door width of 1100mm and a maximum door weight of 100kg, these hinges provide the strength you need for large glass doors.
Opening direction:The hinges are available in both DIN left and DIN right to meet your door opening requirements.
These pivot hinges for glass doors are the perfect choice for modern design, sturdiness and flexibility. They allow you to create glass doors in a variety of rooms and add aesthetic value to your interior design. With high quality stainless steel and various finish options, they are the ideal solution for swinging doors in residential, commercial and office buildings.
Glass door hinge Kimberlie
Surface:
Stainless steel design, stainless steel material
The KIMBERLIE glass door hinge offers a reliable solution for glass doors in a variety of applications. Made from high-quality V2A stainless steel, it is robust and durable. The hinge is available in stainless steel, chrome and black design. With a diameter of 18 mm for the glass hole, the glass door hinge is suitable for glass thicknesses of 6-10 mm. It enables precise installation and alignment of the door. The hinge is designed for glass/wall mounting and enables secure fastening
HINGES FOR GLASS DOORS
Hinges are mechanical devices that connect two fixed objects, such as a door and a door frame. They allow the door to rotate around an axis to be opened or closed. Hinges are typically made of metal and consist of two plates connected by a pin or an axis. There are different types of hinges, such as hinges with concealed, surface-mount, or welded plates.
What types of door hinges are there?
There are various types of door hinges that can vary in their design, materials, and applications. Here are some common types of door hinges:
- Butt hinges: These are the most commonly used hinges for doors. They consist of two plates connected by a pin. Butt hinges are available in different sizes and materials and are suitable for a variety of applications.
- Piano or continuous hinges: These long, narrow hinges extend along the entire length of the door and allow for even weight distribution. They are often used on cabinet doors and lightweight partitions.
- Concealed hinges: These hinges are invisible when the door is closed as they are recessed into the door frame and edge. They are ideal for modern, minimalist designs, providing a clean, seamless look.
- T-hinges: These hinges have a "T" shape and are frequently used on gates and cabinet doors. They are sturdy and offer good stability.
- Overlay hinges: These hinges are primarily used on cabinet doors and are inset into the door, leaving only the pivot point visible. They allow for easy installation and adjustment of the door.
- Butterfly or bi-fold hinges: These decorative hinges have a shape reminiscent of butterfly wings and are commonly used on lightweight doors and cabinets.
- Pivot hinges: These hinges allow the door to rotate around a fixed point in the floor and header of the door frame. They are often used on heavy doors and glass doors.
- Soss hinges: Similar to concealed hinges, Soss hinges are invisible when the door is closed. Their design allows for nearly flush mounting of the door and frame.
There are many more types of door hinges, but these are some of the most common ones. Choosing the right hinges depends on factors such as door size, weight, material, and desired aesthetics.
Applications of Door Hinges
Door hinges are mechanical devices that enable a rotating connection between two fixed objects, such as doors and door frames. They are available in various sizes, materials, and designs to meet different requirements. Here are some applications of door hinges:
- Interior doors: Door hinges are used in residential and commercial buildings to attach interior doors to the door frames. They enable the opening and closing of doors and contribute to the stability and security of the doors.
- Exterior doors: Door hinges are also important for exterior doors as they provide durability against weather conditions and increased security. They are typically made of robust materials such as stainless steel or brass to prevent rust and corrosion.
- Cabinet doors: Door hinges are employed in kitchen, bathroom, and cabinet doors to provide easy access to the contents of the cabinet. They are available in concealed and non-concealed designs and can be customized to fit the specific cabinet door.
- Furniture doors: Door hinges are also used in furniture pieces such as cabinets, display cases, and other storage furniture. They enable the opening and closing of furniture doors and contribute to the functionality and aesthetics of the furniture piece.
- Vehicle doors: Door hinges are utilized in various vehicles such as cars, trucks, buses, and RVs. They enable the opening and closing of vehicle doors while providing security and stability.
- Fire doors: Door hinges for fire doors are designed to withstand high temperatures and restrict the spread of fire and smoke in case of a fire. These hinges must comply with the relevant fire safety regulations.
- Heavy-duty doors: In industrial and commercial environments, heavy-duty door hinges are often used to secure doors that need to withstand increased load and stress.
- Special applications: Door hinges are also employed in special applications such as refrigerator doors, ship doors, aircraft doors, and other unique situations where a rotating connection is required.
Overall, door hinges are an essential component for a wide range of applications where doors or movable parts need to be attached and moved.
What should I consider when choosing hinges?
When selecting hinges, you should consider the following factors:
- Material: Hinges are available in various materials such as brass, stainless steel, zinc, steel, and aluminum. Choose the material according to the application and the environment in which the hinge will be used. For example, stainless steel hinges are well-suited for outdoor use as they are corrosion-resistant.
- Size and shape: Hinges come in different sizes and shapes. Ensure that the hinge fits the size and weight of the door or furniture piece it will be attached to. Too small hinges may not bear the load and could break.
- Load capacity: The load capacity of a hinge is an important factor to consider. Make sure the chosen hinge can support the weight of the door or furniture piece.
- Mounting type: There are different mounting types for hinges, such as surface-mounted, mortise, or weld-on. Choose the mounting type that best suits your application and is the easiest to perform.
- Opening angle: The opening angle of a hinge indicates how far the door or furniture piece can be opened. Ensure that the opening angle is sufficient for your application.
- Features: Some hinges offer additional features, such as integrated damping that enables quiet and smooth door closing. Consider whether such features are beneficial for your application.
- Aesthetics: The appearance of the hinges should match the style of the door or furniture piece. You can choose from various finishes, colors, and shapes.
- Price: Consider the price-performance ratio when selecting hinges and ensure that the quality justifies the price.
- Manufacturer: Choose hinges from reputable manufacturers to ensure that you receive a high-quality product.
By considering these factors, you can select the right hinge for your application and ensure a durable and functional solution.
