Corner patch fitting Odette
Product number:
77452157000-12
See Prices
Don't see prices yet or want information about delivery?
Simply login with your G-Fittings account and you will see all the important information.
- Exclusive B2B Prices
- Fast & Easy Ordering Process
- Real-Time Availability & Stock Levels
- Purchase on Account for Business Customers
Do you need assembly instructions, CAD drawings, certificates or similar? You will find everything you need here on our website.
Description

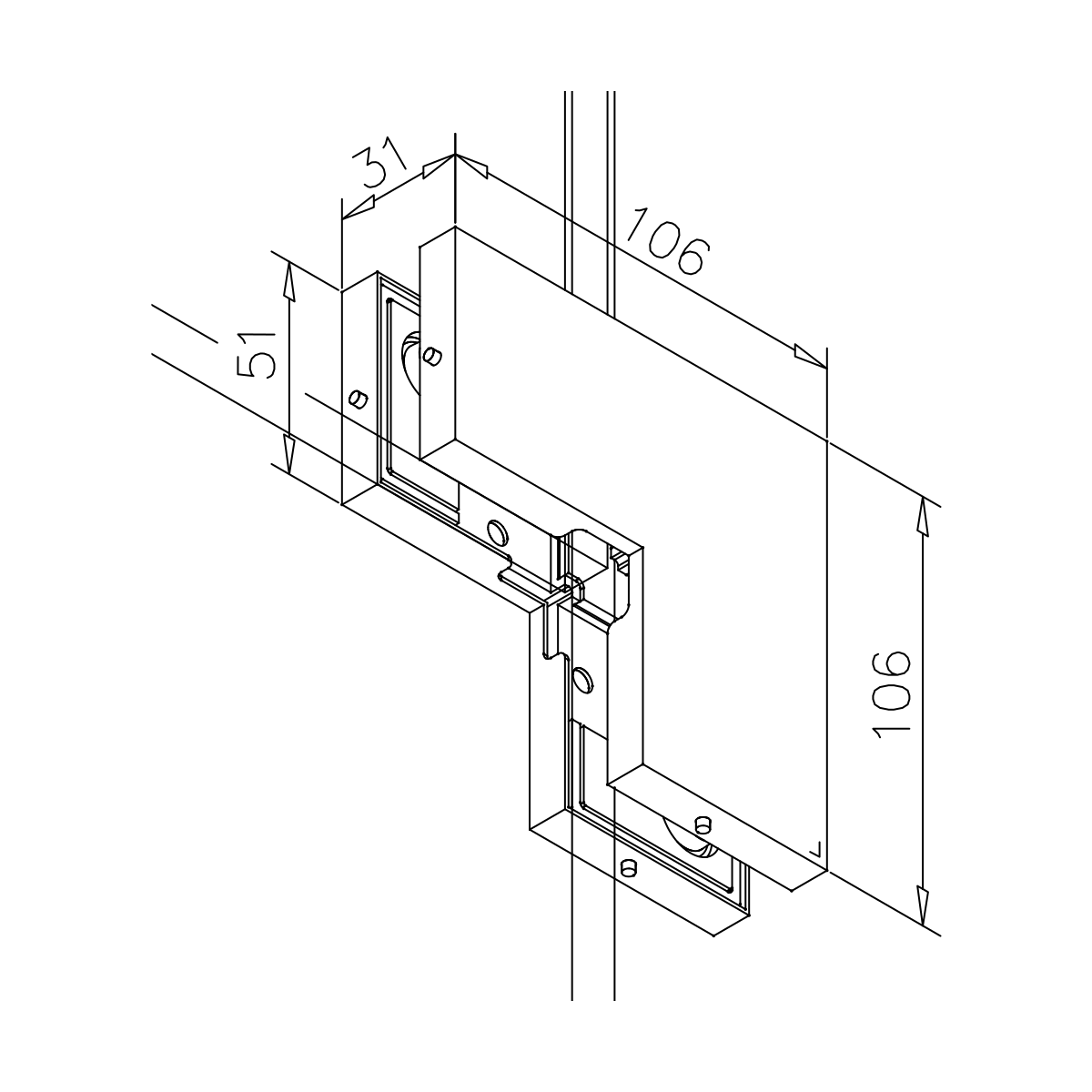

The ODETTE corner connector joins glass elements within all-glass systems and is designed for glass 10 to 12 mm thick. Made of AISI 304 (V2A) stainless steel, the fitting is available in a stainless steel finish. Proper glass processing is required for installation. Installing ODETTE requires drilling 20-mm-diameter holes in the glass. The required cutting dimensions are tailored to the angle connector and the adjacent glass elements.
Key Features
For 10–12 mm glass
V2A Stainless Steel
For all-glass systems
Stainless Steel Design
Properties
| Door type: | Swinging |
|---|---|
| Finish: | Stainless steel design |
| Glasstärke: | 10 - 12 mm |
| Mounting type: | All-glass wall |
| max. door weight: | 100 kg |
| max. door width: | 1100 mm |
Downloads
| 77-45-215x-000-xx_glasscutout_G-FITTINGS.pdf | Datasheet | 563.78 KB |
|---|
1 variants available
