Door handle, double-sided 90° Vina
Product number:
77478503425-26
See Prices
Don't see prices yet or want information about delivery?
Simply login with your G-Fittings account and you will see all the important information.
- Exclusive B2B Prices
- Fast & Easy Ordering Process
- Real-Time Availability & Stock Levels
- Purchase on Account for Business Customers
Do you need assembly instructions, CAD drawings, certificates or similar? You will find everything you need here on our website.
Description
The G-Fittings VINA door handle with a square design in different lengths and colors is suitable for glass and wooden doors with a thickness of 6 - 40 mm.
- Pair of grab bars in square design (16 x 16 mm or 25 x 25 mm)
- stainless steel or black
- suitable for glass or wooden doors
- easy construction

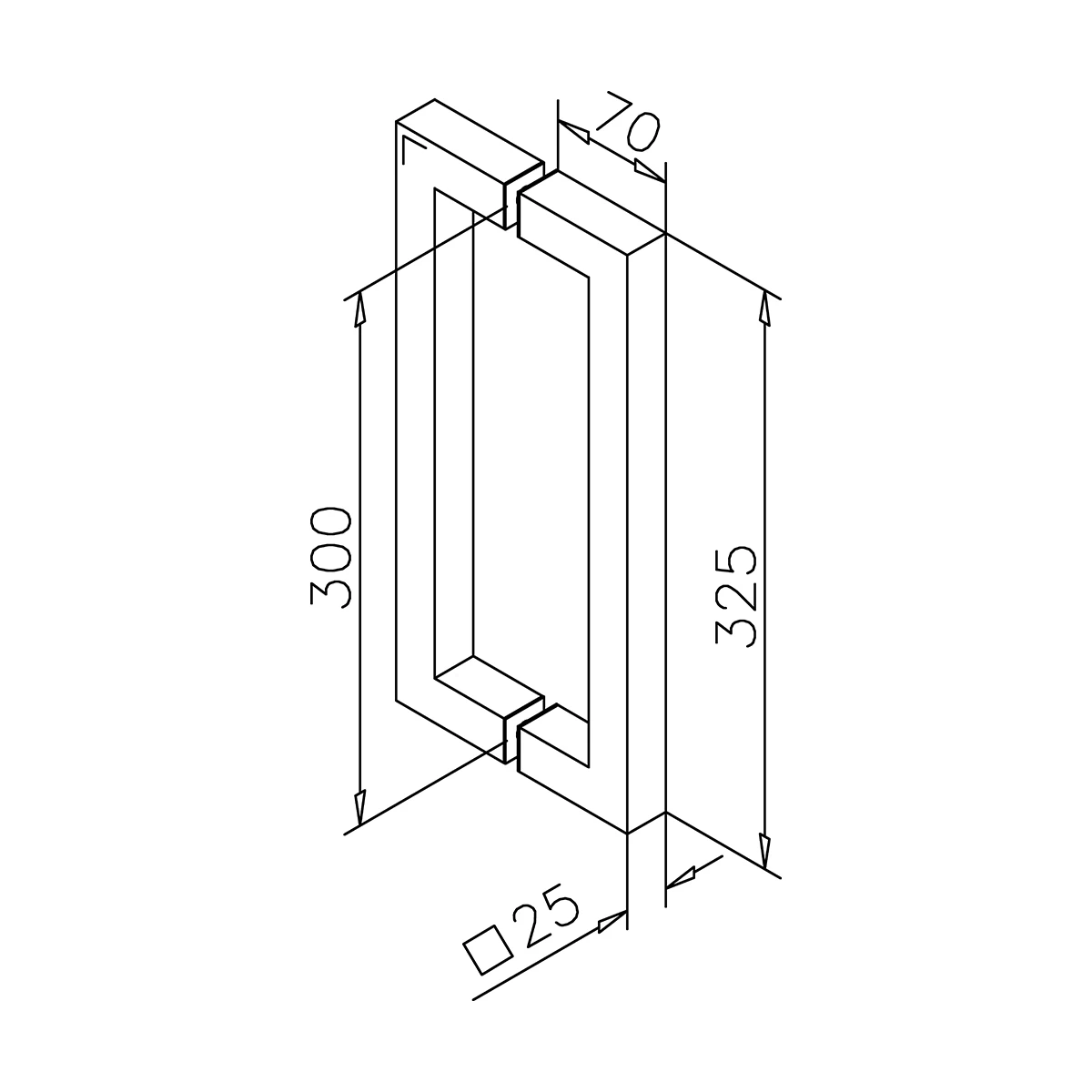

Properties
| Bor distance in mm: | 300 mm |
|---|---|
| Bore in mm: | 12 mm |
| Depth in mm: | 70 mm |
| Dimensions: | 25 x 25 mm |
| Door thickness in mm: | 6 - 40 mm |
| Finish: | Anthracite black design |
| Material: | Stainless steel 304 (V2A) |
| Mounting on: | Glass / Wood |
Downloads
| 77-47-850x-425_datasheet_G-FITTINGS.pdf | Datasheet | 372.16 KB | |||
|---|---|---|---|---|---|
| 47-8503-425-xx.dxf | CAD file | 1.74 MB | dxf | ||
| 47-8503-416-xx.dxf | CAD file | 1.74 MB | dxf |
6 variants available
