Door handle, two-sided 90°, semi-circular Viva
Product number:
77478603425-12
Description

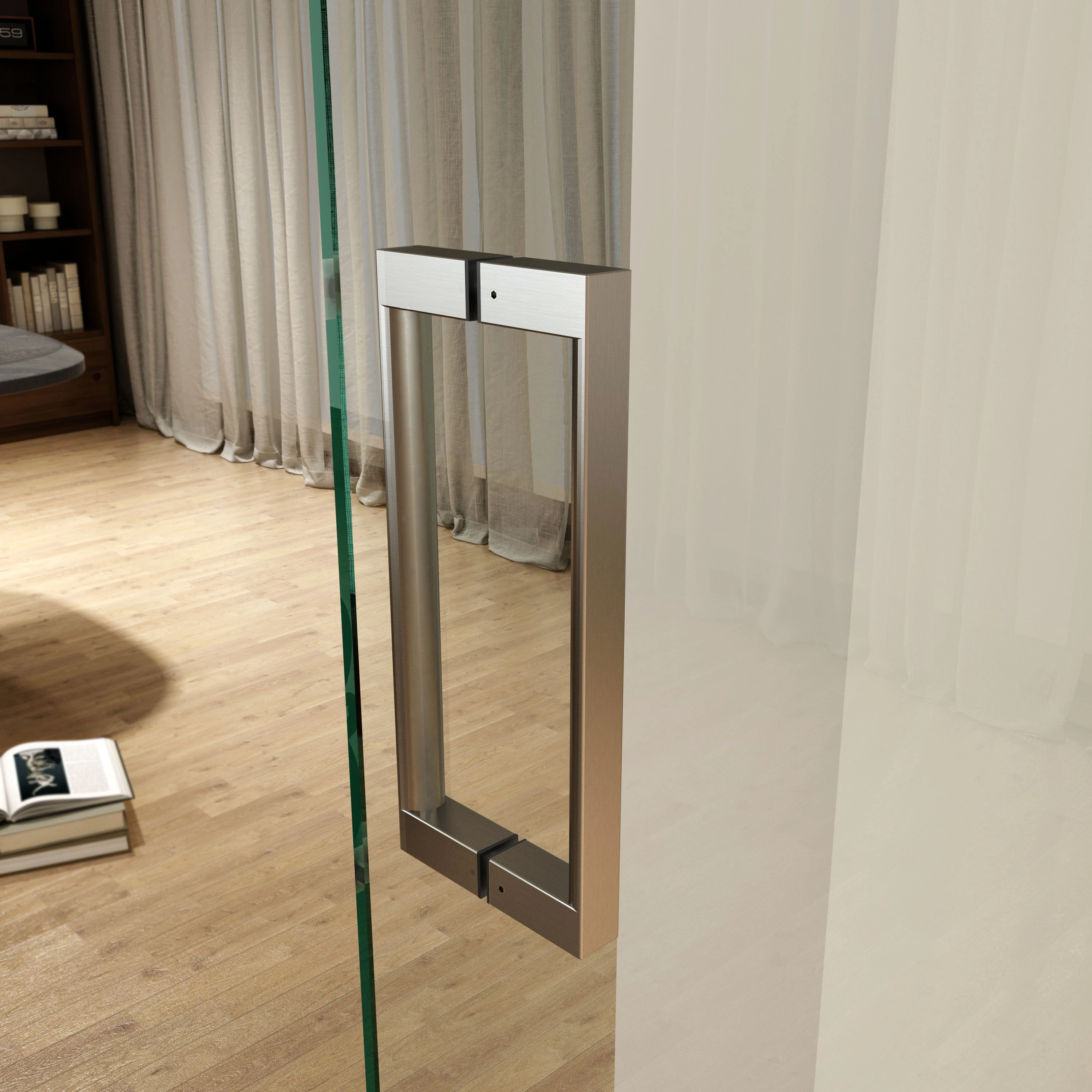

Door handle VIVA 90° with semi-circular handle - Stylish and functional
Discover the double-sided door handle VIVA in 90° with its unique semi-circular handle surface. The door handle is ergonomically shaped and is ideal for glass and wooden doors. Manufactured from high-quality V2A stainless steel, the door handle not only offers an elegant look, but also durability and robustness. With a height of 300 mm, it is perfectly dimensioned for comfortable gripping. Available in stainless steel, chrome, brass and black, the VIVA door handle blends seamlessly into any modern interior.
Key Features
High-quality V2A stainless steel
Ergonomic design
For glass and wooden doors
Various surfaces

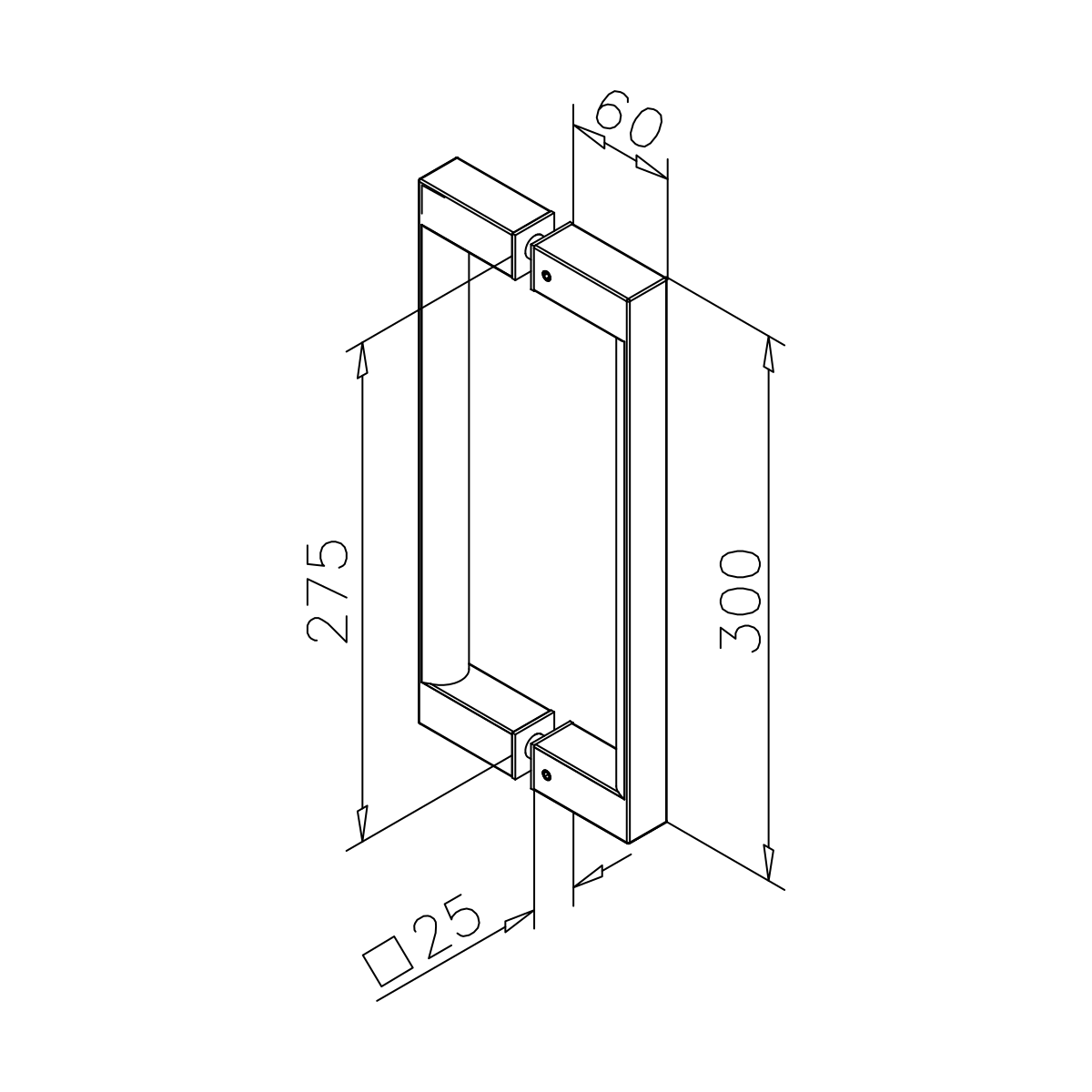

Properties
| Bor distance in mm: | 275 mm |
|---|---|
| Bore in mm: | 12 mm |
| Depth in mm: | 60 mm |
| Dimensions: | 25 x 25 mm |
| Door thickness in mm: | 6 - 40 mm |
| Finish: | Stainless steel design |
| Length in mm: | 300 mm |
| Material: | Stainless steel 304 (V2A) |
| Mounting on: | Glass / Wood |
| Shape: | half round |
| Width in mm: | 25 mm |
Downloads
| 77478603425xx.dxf | CAD file | 2.64 MB | dxf | ||
|---|---|---|---|---|---|
| 77-47-8603-425_datasheet_G-FITTINGS.pdf | Datasheet | 258.12 KB |
4 variants available
