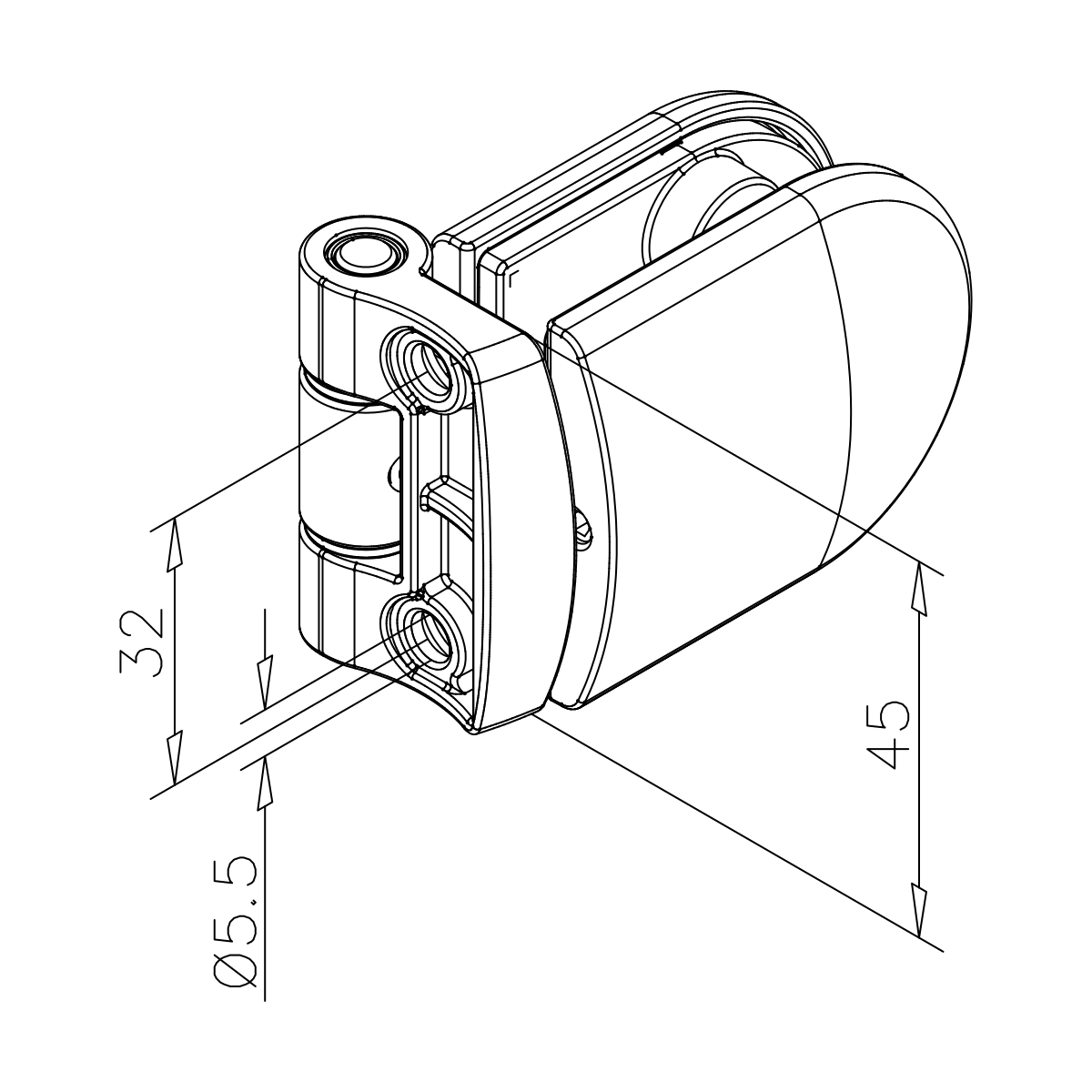

Door hinge Pagan
Product number:
7714028103812
See Prices
Don't see prices yet or want information about delivery?
Simply login with your G-Fittings account and you will see all the important information.
- Exclusive B2B Prices
- Fast & Easy Ordering Process
- Real-Time Availability & Stock Levels
- Purchase on Account for Business Customers
Do you need assembly instructions, CAD drawings, certificates or similar? You will find everything you need here on our website.
Description
The PAGAN glass door hinge is the perfect solution for demanding all-glass and tubular installations. With its high-quality stainless steel design, it combines a modern look with robust functionality - ideal for stylish and durable glass door constructions.
Product features at a glance:
- High-quality stainless steel design: Timeless look and high corrosion resistance for lasting elegance.
- Flexible installation options: Suitable for glass-to-glass connections and tube diameters of Ø 38.1-42.2 mm and Ø 48.3-50.8 mm.
- Strong and stable: Supports a maximum door weight of up to 45 kg - ideal for a wide range of door sizes.
- Universally applicable: Suitable for DIN left and DIN right - maximum flexibility in door planning.
- Versatile glass thickness compatibility: For glass thicknesses from 6 mm to 12.76 mm - ideal for different requirements.
Key Features
High-quality stainless steel
All-glass or tube mounting
max. 45 kg door weight
DIN left & DIN right
for 6 - 12.76 mm glass
Properties
| Diameter Ø Glass hole: | 14 mm |
|---|---|
| Djustable zero position: | yes |
| Door type: | Stopper |
| Finish: | Stainless steel design |
| Glass cut outs: | yes |
| Glass thickness: | 6 - 12,76 mm |
| Hydraulic: | no |
| Material: | Stainless steel 304 (V2A) |
| Mounting type: | für Rohr Ø 38,1 - 42,4 mm |
| Opening direction: | DIN left / DIN right |
| Self-closing: | no |
| max. door weight: | 45 kg |
3 variants available
