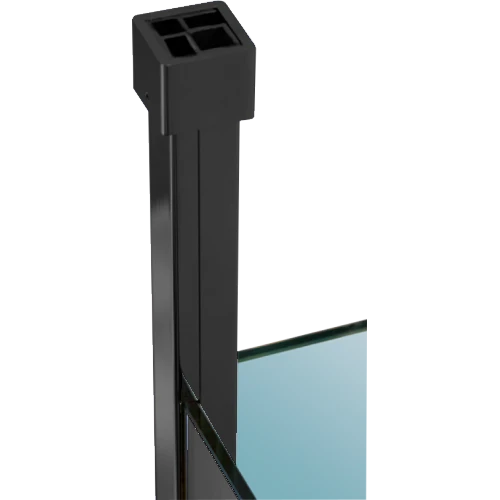

Floor/ceiling support post set for walk-in shower Sabia
Product number:
77403205270-26
Description
Free-standing shower screen without glass drill holes
Rely on stylish yet practical design with our walk-in post set SABIA. The continuous connection between the ceiling and floor forms a free-standing column that can be positioned anywhere in the room and can accommodate glass partitions using a groove. The set offers accessibility, high stability and robust materials for maximum safety.
Features
- Free-standing U-profile for walk-in shower screen
- with ceiling and floor mounting
- for 8 mm toughened safety glass
- Invisible fastening
- easy to shorten
- Groove depth: 16 mm
-
Support post made from anodized aluminium
- No glass processing necessary
- Clip-in groove cover
- Dimensions: 32 x 32 mm x 2700 mm
- Easy installation
- Surfaces: bright chrome-plated, matt black, matt gold
Scope of delivery:
1 x groove profile, length 2,700 mm
1 x floor mounting
1 x ceiling mounting
1 x cover profile, length 960 mm
1 x cover ring
1 x mounting set
Properties
| Depth in mm: | 32 mm |
|---|---|
| Different dimensions possible: | no |
| Dimensions: | 32 x 32 mm |
| Execution: | Corner post 90° |
| Finish: | schwarz matt |
| Glasstärke: | 8 mm |
| Height in mm: | 2700 mm |
| Material: | Aluminium |
| Post fixing: | Ceiling |
| Product type: | Standard |
| Tube type: | Grooved tube |
| Width in mm: | 32 mm |
Downloads
| 77-40-3205-270_datasheet_G-FITTINGS.pdf | Datasheet | 180.09 KB | |||
|---|---|---|---|---|---|
| 77-40-3205-270-xx.dxf | CAD file | 2.60 MB | dxf | ||
| 77-40-3201-270-xx.dxf | CAD file | 2.05 MB | dxf |
6 variants available
