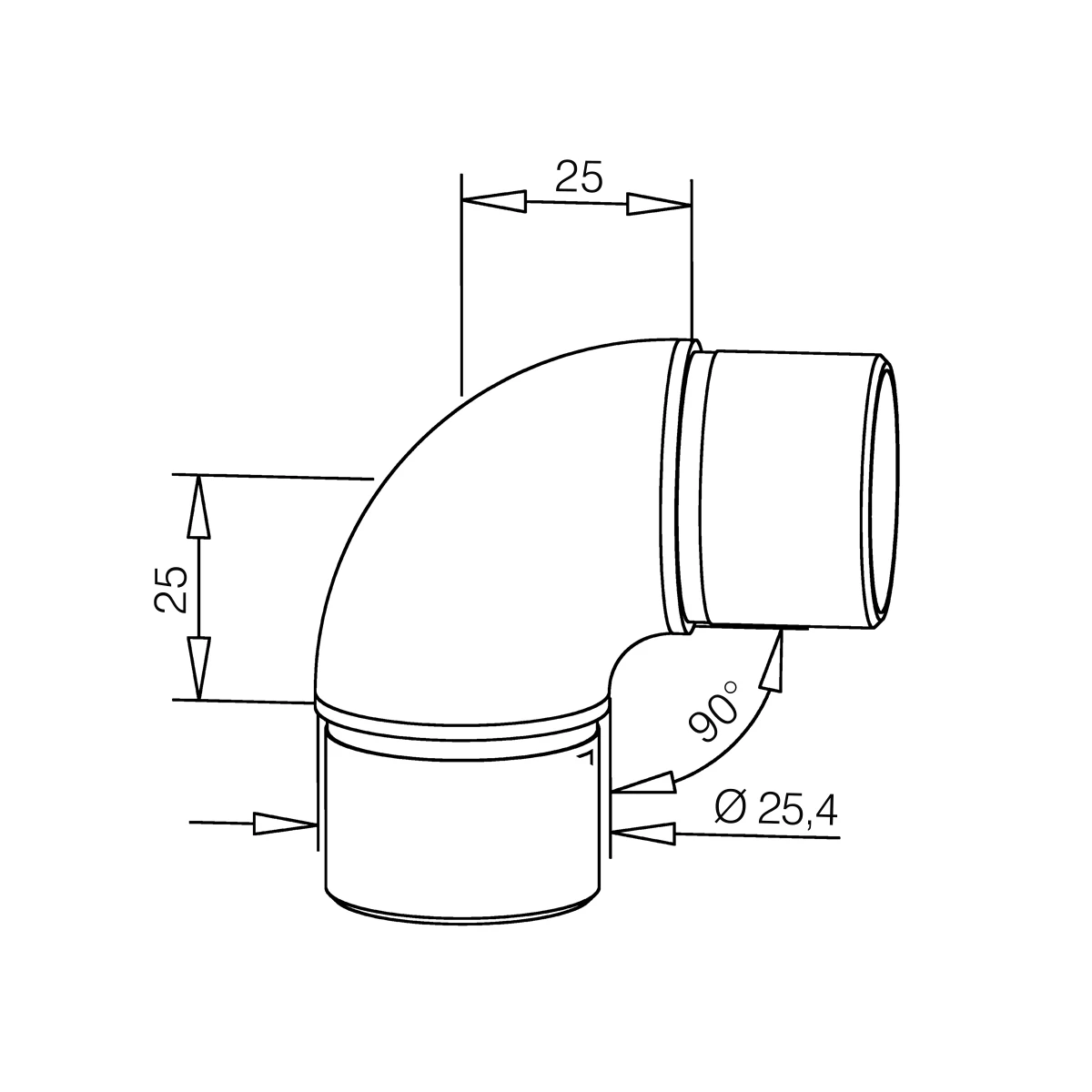

Flush elbow 90° Alita
Product number:
77110301025-20
Description
The 90° ALITA corner bend made of robust die-cast zinc is the ideal solution for connecting round pipes at a precise internal angle of 90 degrees. It is assembled using a plug-in connection with internal bonding, without any welding.
Available for various pipe diameters, ALITA adapts flexibly to a wide range of requirements. The connector is available in an elegant stainless steel or brass design. This allows the corner elbow to be matched exactly to the desired project, both functionally and visually.
Typical applications:
- Handrails, footrails, balcony railings
- clothes rails, furniture frames, table frames
- bumpers, bathing ladders, safety bars
- Stainless steel advertising signs and railings
- Constructions for boats, bistros, shopfitting
Key Features
For handrails, footrails, balcony railings
90° internal angle
For different pipe diameters
Various surface designs
Plug-in connection with adhesive bonding
Properties
| Angle: | 90° |
|---|---|
| Diameter connection: | 22,7 mm |
| Diameter Ø: | 25,4 mm (1") |
| Finish: | Stainless steel design |
| Insertion depth into the tube: | 20 mm |
| Material: | Zamac |
| Number of connections: | 2 |
| Powder coating possible: | yes |
| Tube type: | Round tube |
| Wall thickness: | 2,0 mm |
| with joint: | no |
Downloads
| 77-11-0301-025.dxf | CAD file | 996.00 KB | dxf |
|---|
4 variants available
Accessories
Skip product gallery
EXTRA-LOCK Metal glue Jannelies
Content:
50 ml
Our JANNELIES metal adhesive is the ideal choice when it comes to joining metal parts quickly and reliably. Whether you want to glue a pipe connector into a pipe or assemble your own metal structure, our adhesive is the perfect solution.
This metal adhesive is extra strong and durable and cures quickly, so you can complete your projects quickly and easily. It adheres to a variety of metals, including steel, aluminum and brass. Our metal adhesive comes in a handy tube, so you can apply it easily and precisely.
Try our metal adhesive today and see how easy and effective bonding metal parts can be!
Properties:
Green liquid
Strength: high
Bonding gap maximum: 0.20 mm
Temperature resistance: -55 °C to +150 °C
Final strength: 2 to 4 hours
Thread connections: up to max. M36 / R 1 1/2"
Instructions for use:K evenly and assemble parts immediately. Air content of bottle keeps adhesive liquid.
