Glass connector 90°, angular Naila
Product number:
77404012090-12
See Prices
Don't see prices yet or want information about delivery?
Simply login with your G-Fittings account and you will see all the important information.
- Exclusive B2B Prices
- Fast & Easy Ordering Process
- Real-Time Availability & Stock Levels
- Purchase on Account for Business Customers
Do you need assembly instructions, CAD drawings, certificates or similar? You will find everything you need here on our website.
Description

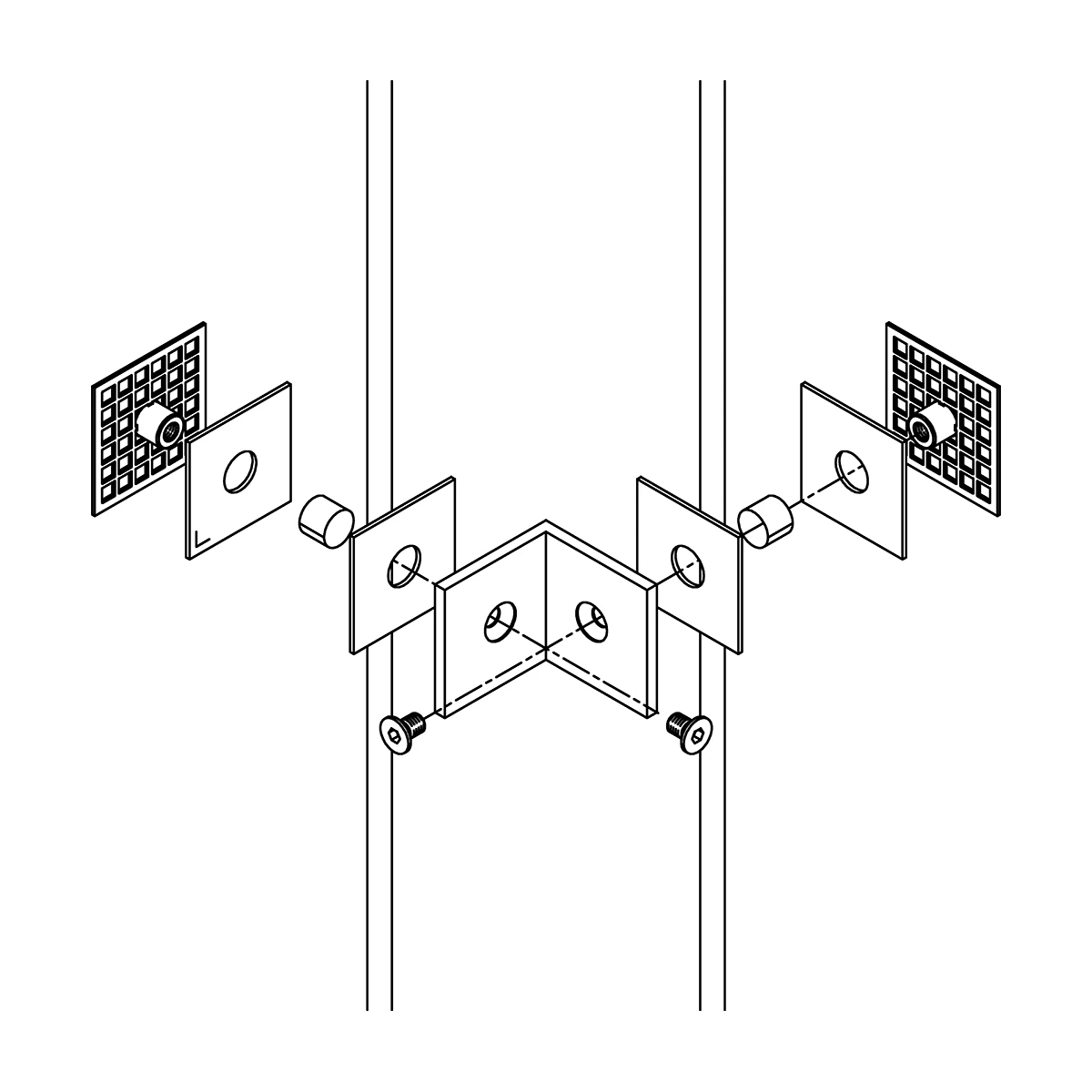

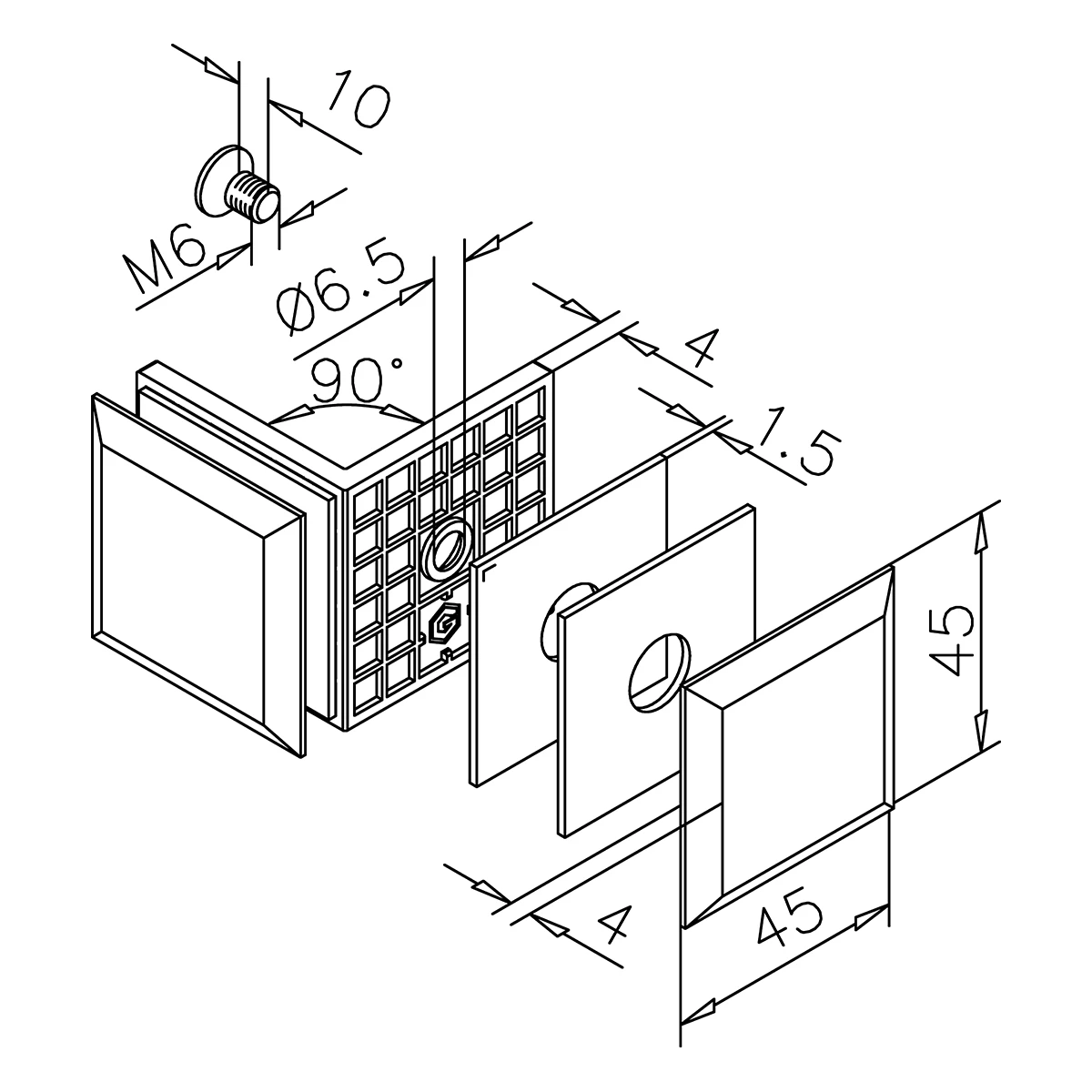

The NAILA glass connector is an angle connector for the stable 90° connection of two glass elements. It is made of high-quality V2A stainless steel (AISI 304) and is specially designed for glass thicknesses between 8 mm and 12 mm, while the square design ensures a modern look in glass systems. The connector is available in various designs: stainless steel, chrome, black and matt brass. Glass processing with Ø16 mm holes is required for installation.
Key Features
90° connection of 2 glass plates
Made of V2A stainless steel
For glass thicknesses 8 - 12mm
Various surface designs
Properties
| Bore in mm: | 16 mm |
|---|---|
| Finish: | Stainless steel design |
| Glasstärke: | 8 - 12 mm , 8 - 12 mm |
| Through-bore: | yes |
Downloads
| 77-40-4012-090_datasheet_G-FITTINGS.pdf | Datasheet | 300.89 KB | |||
|---|---|---|---|---|---|
| 40-4012-090-xx.dxf | CAD file | 1.61 MB | dxf |
4 variants available
