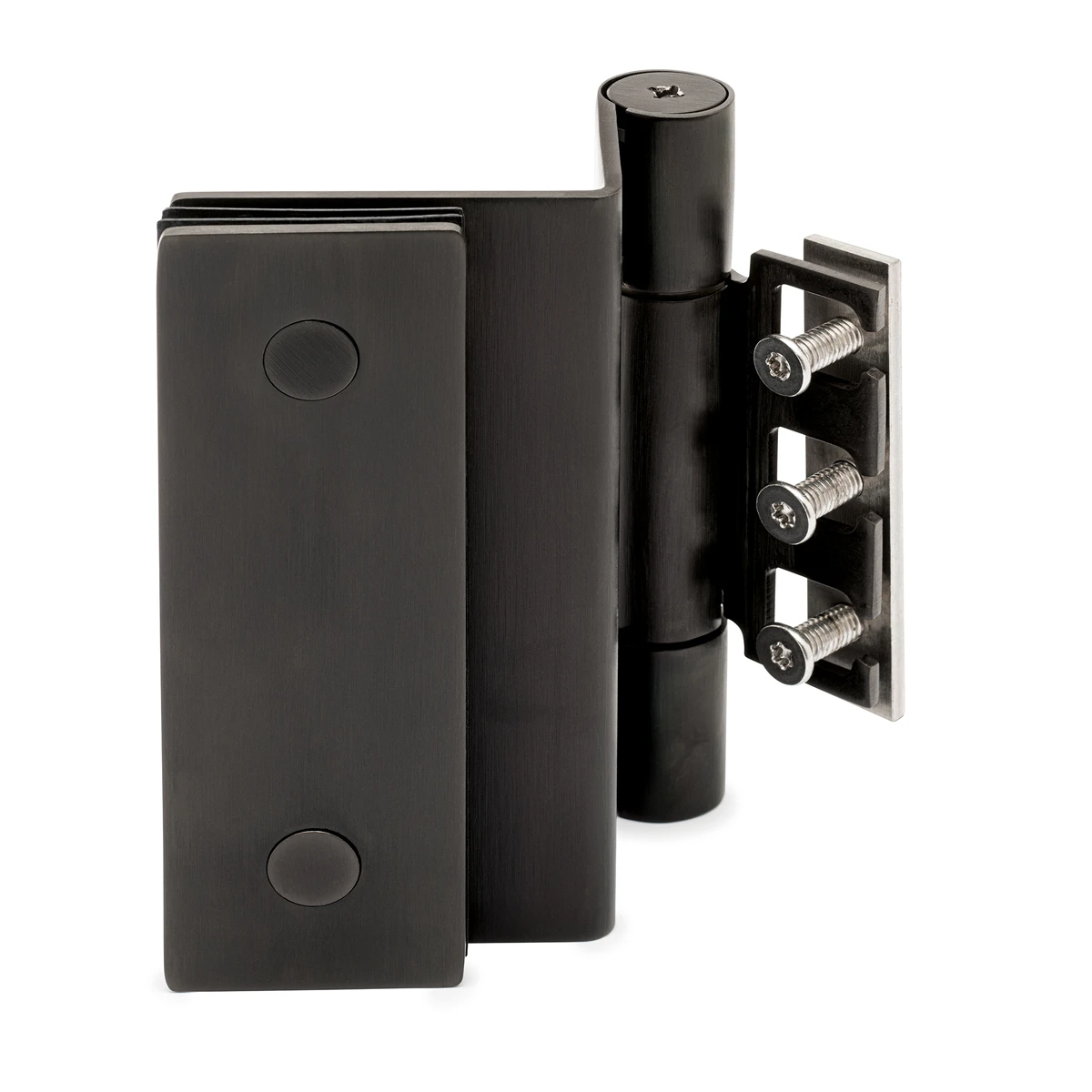

Glass door hinge for panel profile, adjustable Annemarthe
The adjustable glass door hinge for frame profiles ANNEMARTHE sets standards in terms of functionality and design. Manufactured from high-quality V2A stainless steel, the hinge is available in attractive stainless steel, chrome and black versions to blend seamlessly into different interior designs.
With its excellent adaptability, this hinge is designed for glass thicknesses from 8 to 12 mm, allowing flexible integration into a wide variety of glass door designs. The maximum door width of 1200 mm and an impressive load capacity of 70 kg make it the ideal choice for a wide range of applications.
Whether you prefer a modern stainless steel look, a shiny chrome accent or a timeless black look - this adjustable glass door hinge meets the highest standards in terms of aesthetics, adaptability and load-bearing capacity.
| Adjustable: | no |
|---|---|
| Diameter Ø Glass hole: | 12 mm |
| Djustable zero position: | yes |
| Door type: | Stopper |
| Finish: | Anthracite black design |
| Flush mounted: | no |
| Glass cut outs: | yes |
| Glasstärke: | 8 - 12,76 mm |
| Hydraulic: | no |
| Material: | Stainless steel 304 (V2A) |
| Opening direction: | DIN left / DIN right |
| Quantity: | 1 |
| Self-closing: | no |
| max. door weight: | 70 kg |
| max. door width: | 1200 mm |
| 77-45-2703-000_datasheet_G-FITTINGS.pdf | Datasheet | 446.33 KB |
|---|
