Glass door lock Cat
Product number:
77452210902-12
Description
The glass door lock CAT in "Studio" design is made of high-quality V2A stainless steel and guarantees durability and an attractive appearance. This lock is available in various finishes, including stainless steel, chrome or black design, to blend seamlessly into different room designs. The glass door lock is suitable for glass thicknesses of 8 - 10 mm.
For added security and flexibility, a profile cylinder can be purchased separately as an accessory to control access and protect privacy.

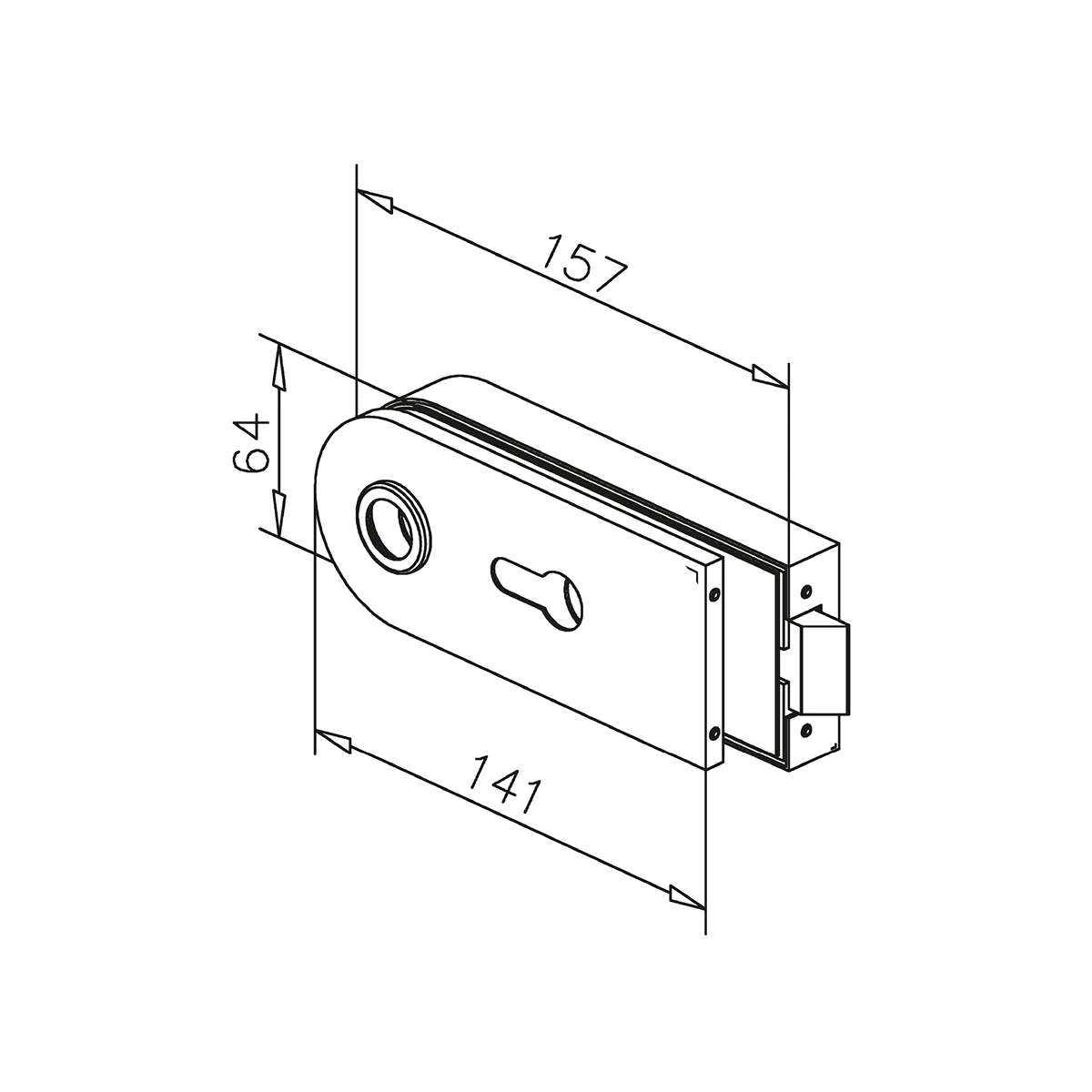

Properties
| Depth in mm: | 35 mm |
|---|---|
| Diameter Ø Glass hole: | 45 mm |
| Door handle included: | no |
| Finish: | Stainless steel design |
| Glass cut outs: | yes |
| Glasstärke: | 8 - 10 mm |
| Height in mm: | 65 mm |
| Hook trap: | no |
| Lockable: | yes |
| Look: | Studio |
| Magnetic: | no |
| Material: | Stainless steel 304 (V2A) |
| Opening direction: | DIN left / DIN right |
| Profile cylinder included: | no |
| Shape: | rounded |
| Strike plate included: | yes |
| Whisper Trap: | yes |
| Width in mm: | 156 mm |
Downloads
| 77-45-2210-902_datasheet_G-FITTINGS.pdf | Datasheet | 355.95 KB | |||
|---|---|---|---|---|---|
| 77-45-2210-00x_manual_G-FITTINGS.pdf | Datasheet | 1.34 MB | |||
| 45-2210-902-xx.dxf | CAD file | 4.21 MB | dxf |
