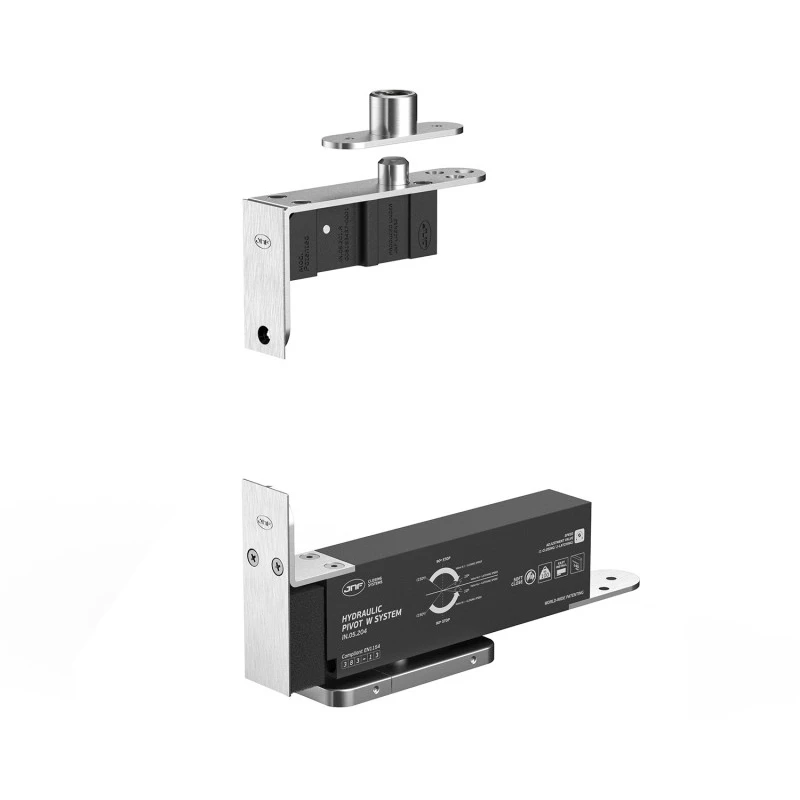

Hydraulic door hinge for wooden door Jora
Discover our hydraulic door hinge JORA for hinged wooden doors - the ideal solution for demanding door applications. Our innovative hinge offers precise adjustment of the shut-off valve with two speeds to give you maximum control over the door movement.
With an impressive maximum width of 1000 mm and a load capacity of up to 100 kg, our door hinge is perfect for a wide range of applications. The design allows it to be attached to wooden doors with a thickness of at least 40 mm, ensuring robust and reliable functionality.
The door hinge is internationally patented, which not only speaks for its uniqueness, but also for the advanced technology behind it. The integrated system for precise adjustment of the door position allows flexibility of ± 3 mm in the horizontal direction and ± 3 mm / 4º in the vertical direction. This allows you to align the door exactly to your requirements.
The floor installation ensures seamless integration into your living or working area, while the hinge itself is made from high-quality EN 1.4301 stainless steel. This not only guarantees durability, but also gives your door system an elegant and timeless look.

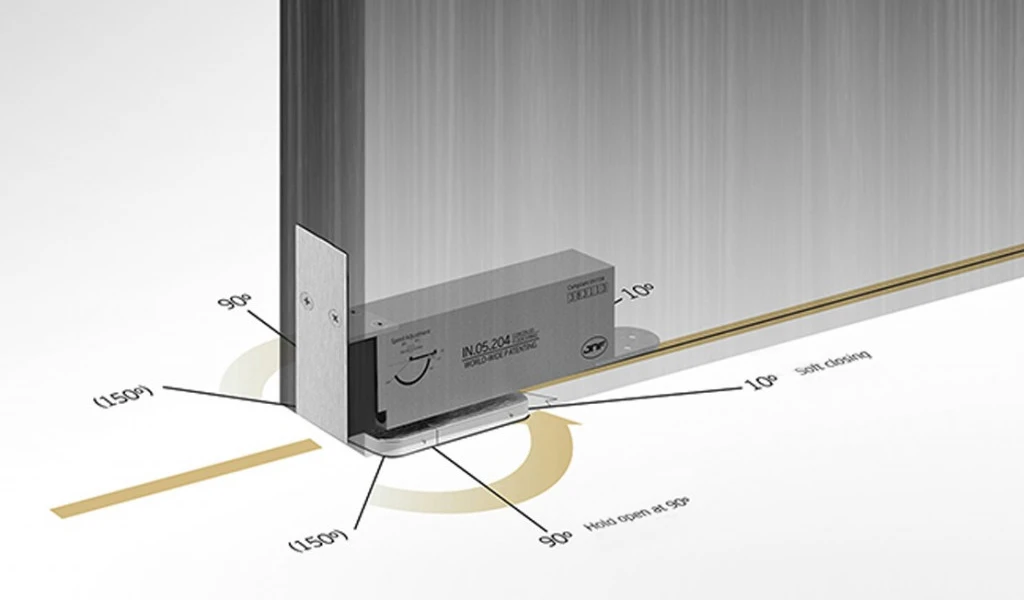

- Adjustment of the shut-off valve with two speeds
- max. door width 1000mm
- max. weight up to 100 kg
- Wood thickness ≥ 40 mm
- International patent
- System for adjusting the position of the door ± 3 mm | ± 3 mm / 4º

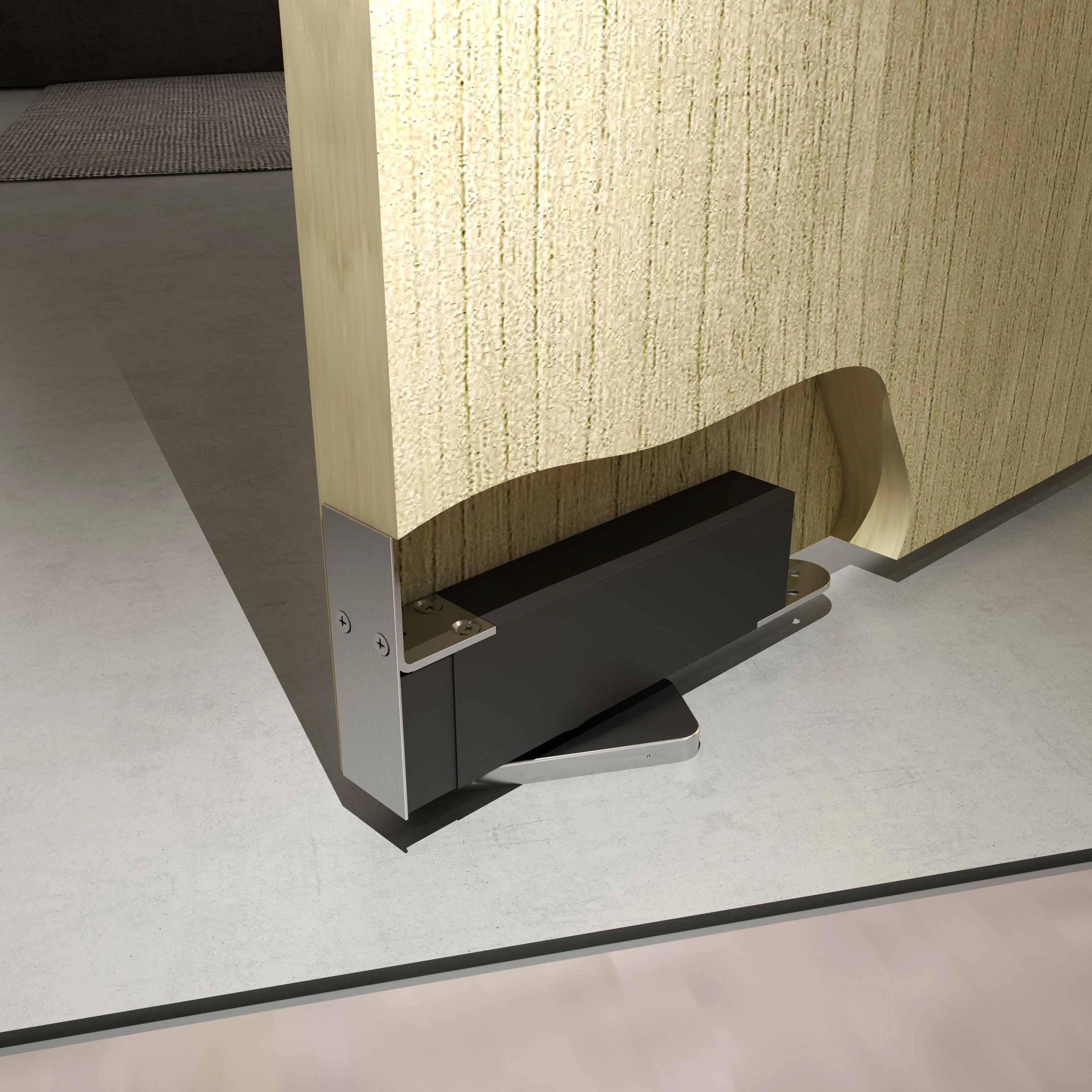

- Floor installation
- EN 1.4301 stainless steel
| Adjustable: | Horizontal ± 3 mm; Vertikal ± 3 mm / 4º |
|---|---|
| Djustable zero position: | no |
| Door leaf material: | Wood |
| Door leaf thickness: | ≥ 40mm |
| Door type: | Swinging |
| Finish: | Stainless steel design |
| Hydraulic: | yes |
| Material: | Aluminium , Stainless steel 304 (V2A) |
| Mounting type: | Floor |
| Normen: | EN 1154 |
| Opening direction: | DIN left / DIN right |
| Self-closing: | yes |
| max. door weight: | 100 kg |
| max. door width: | 1000 mm |

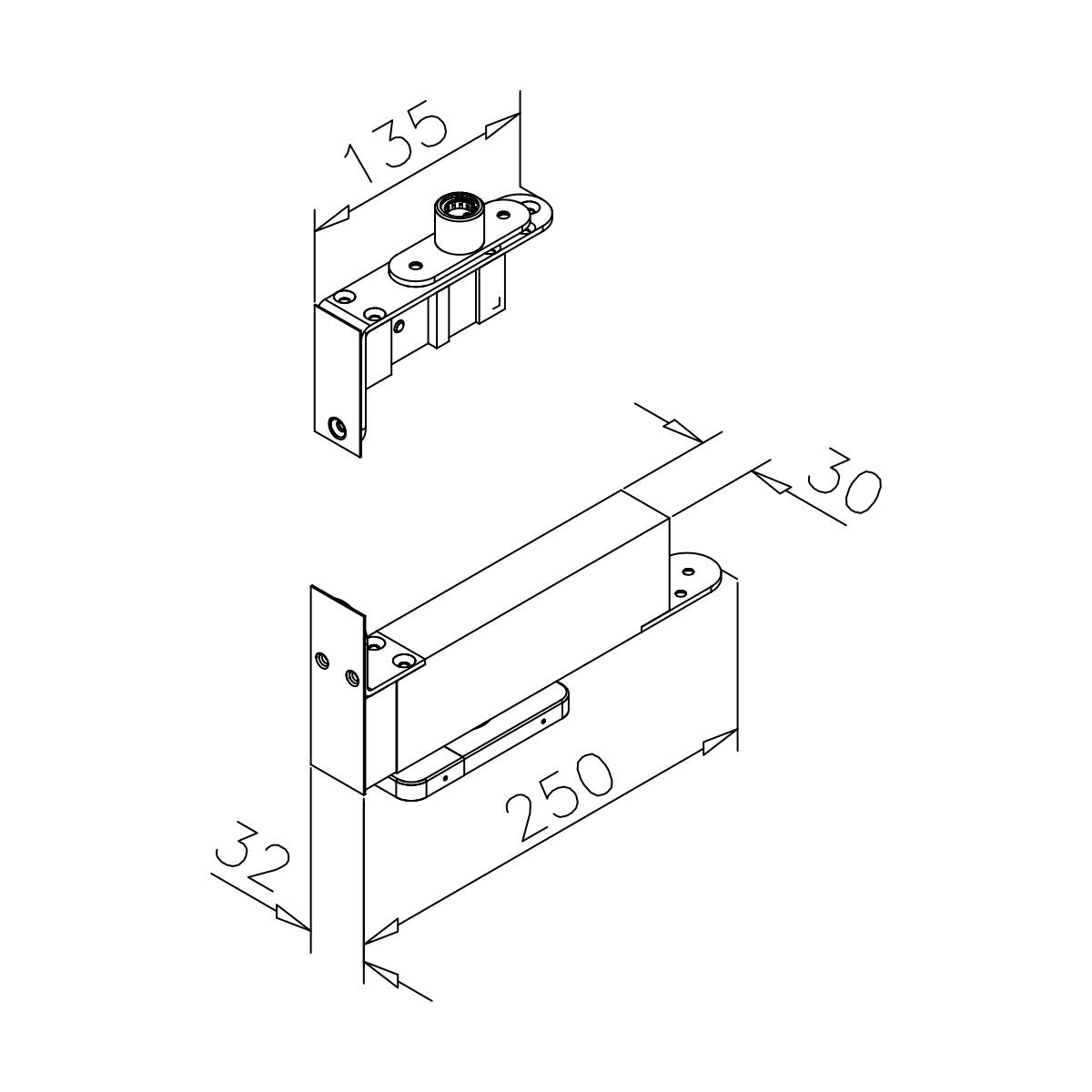

| 77-45-3000-000-xx.dxf | CAD file | 9.74 MB | dxf | ||
|---|---|---|---|---|---|
| 77-45-3000-000-12_technic_G-FITTINGS.pdf | Datasheet | 983.52 KB |
