OFFICE Glass door lock Marelle

Product number: 77452930001-12
Description

The OFFICE glass door lock MARELLE is a solid hardware system for interior doors.

The high-quality materials and reliable components ensure flawless use of the door. The glass door lock with lock case has a whisper latch, which means that the lock closes quietly.

Our glass door locks are used indoors, such as in medical practices, hotels, restaurants, offices and private homes.

The glass door lock forms the basis of your door lock and can be expanded with a door handle or profile cylinder. The glass door lock is available in DIN left and DIN right versions and in stainless steel and black versions. The door lock is suitable for glass doors with a thickness of 8 - 12 mm.

Included:

  • locking plate
  • strike plate insert
  • reducing rings for door handles
  • cover rings
  • masking strips
  • Profile cylinder screw
  • assembly aid
  • allen key

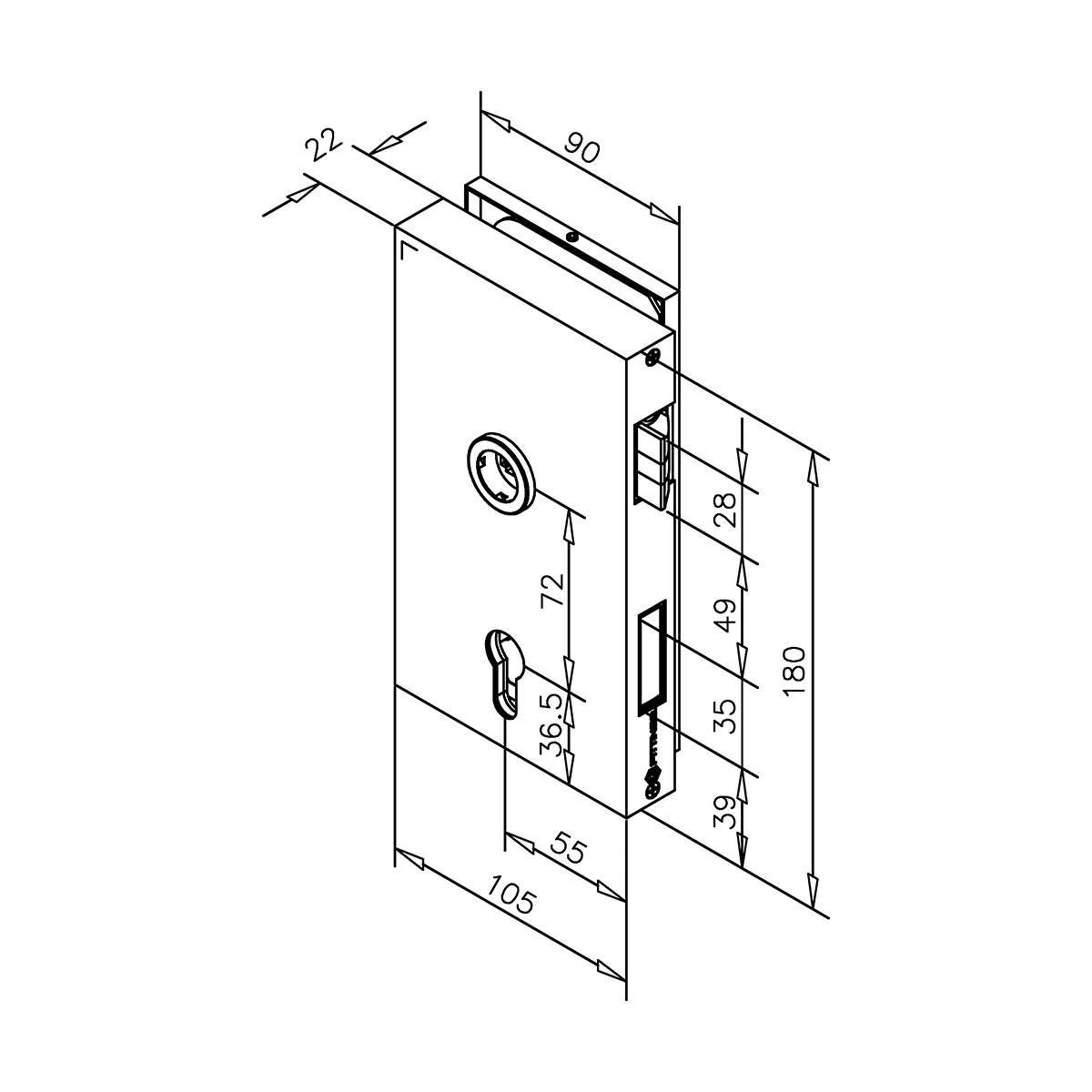

Properties
Diameter Ø Glass hole: 50 mm
Door handle included: no
Finish: Stainless steel design
Glasstärke: 8 - 12 mm
Height in mm: 180 mm
Lockable: yes
Look: Office
Material: Stainless steel 304 (V2A)
Opening direction: DIN left , DIN left
Profile cylinder included: no
Shape: square
Strike plate included: yes
Through-bore: yes
Whisper Trap: yes
Width in mm: 90 mm
Downloads
Datasheet
Datasheet
77-45-2930-001-xx.dxf
dxf - 6.78 MB
CAD file
77-45-29xx-00x_manual_G-FITTINGS.pdf Datasheet 1.32 MB pdf
77-45-2930-001_datasheet_G-FITTINGS.pdf Datasheet 347.15 KB pdf
77-45-2930-001-xx.dxf CAD file 6.78 MB dxf
