Post Estelie
Product information "Post Estelie"

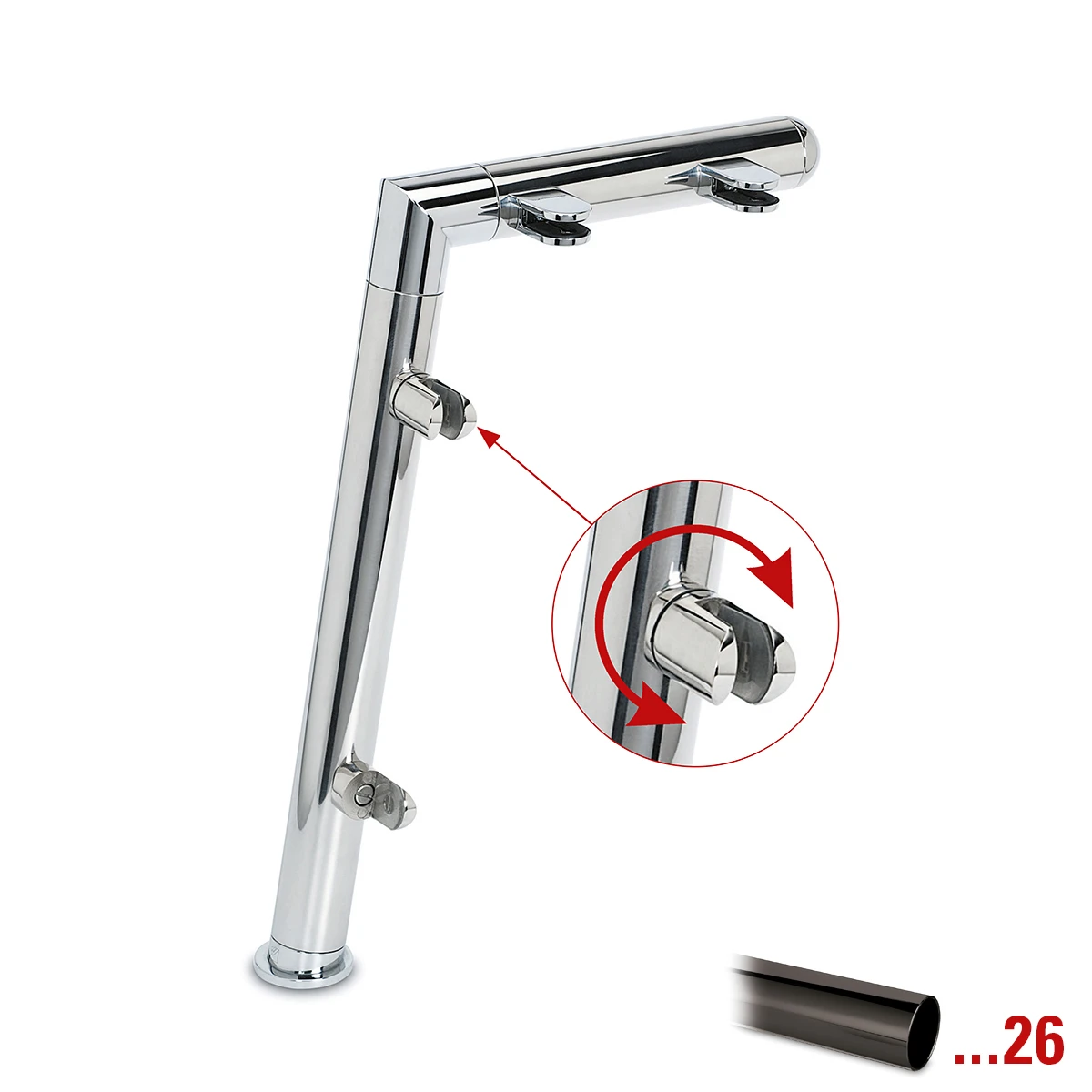

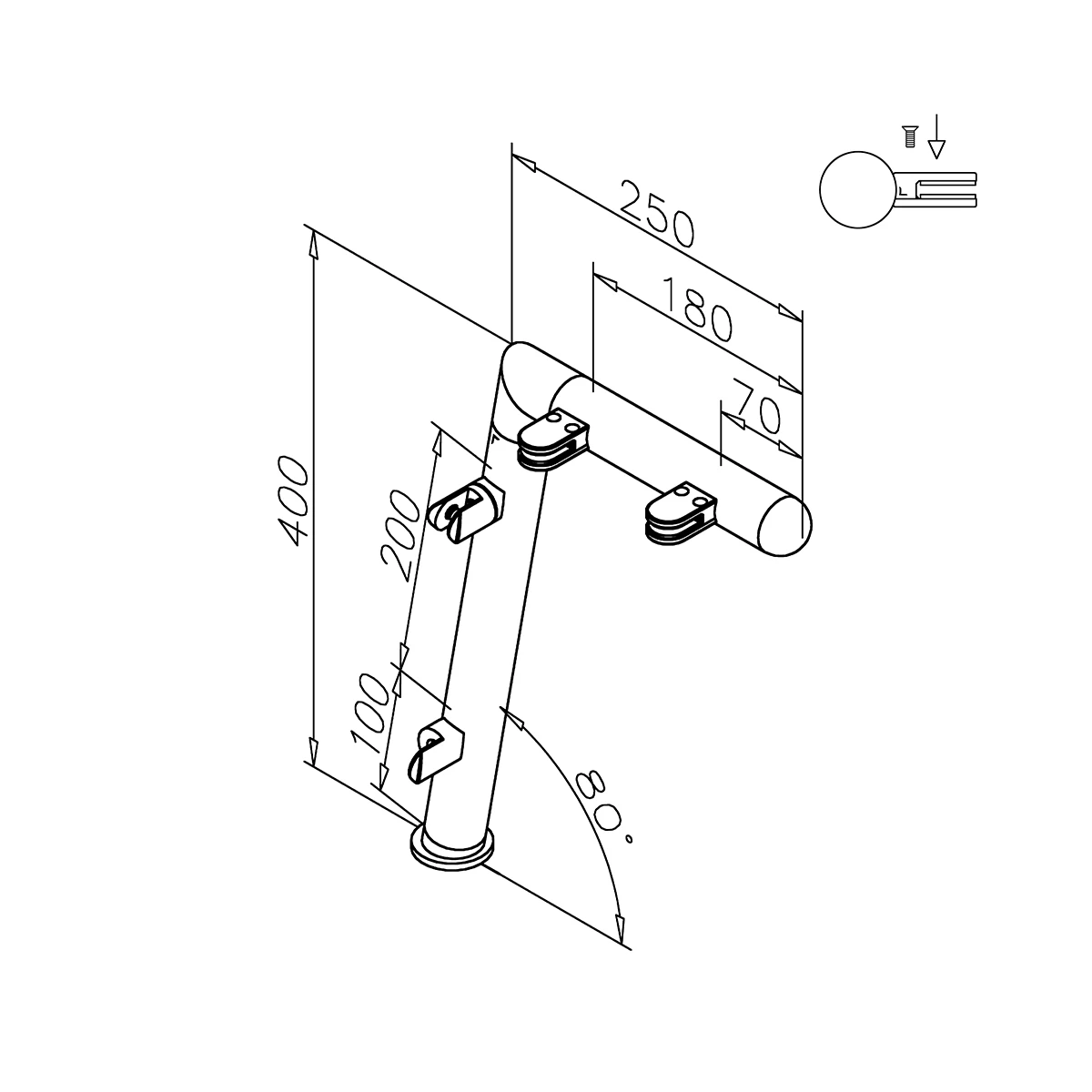

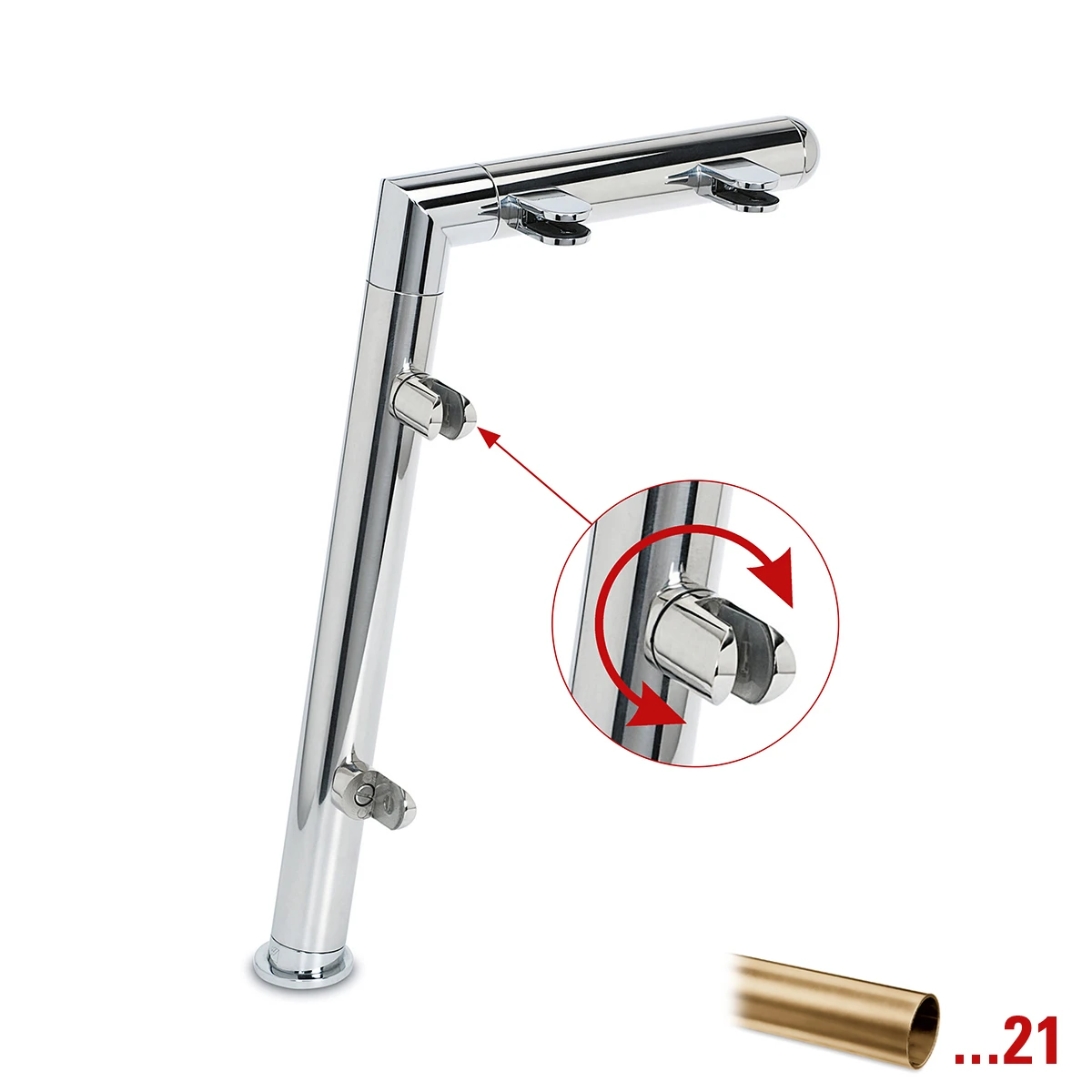

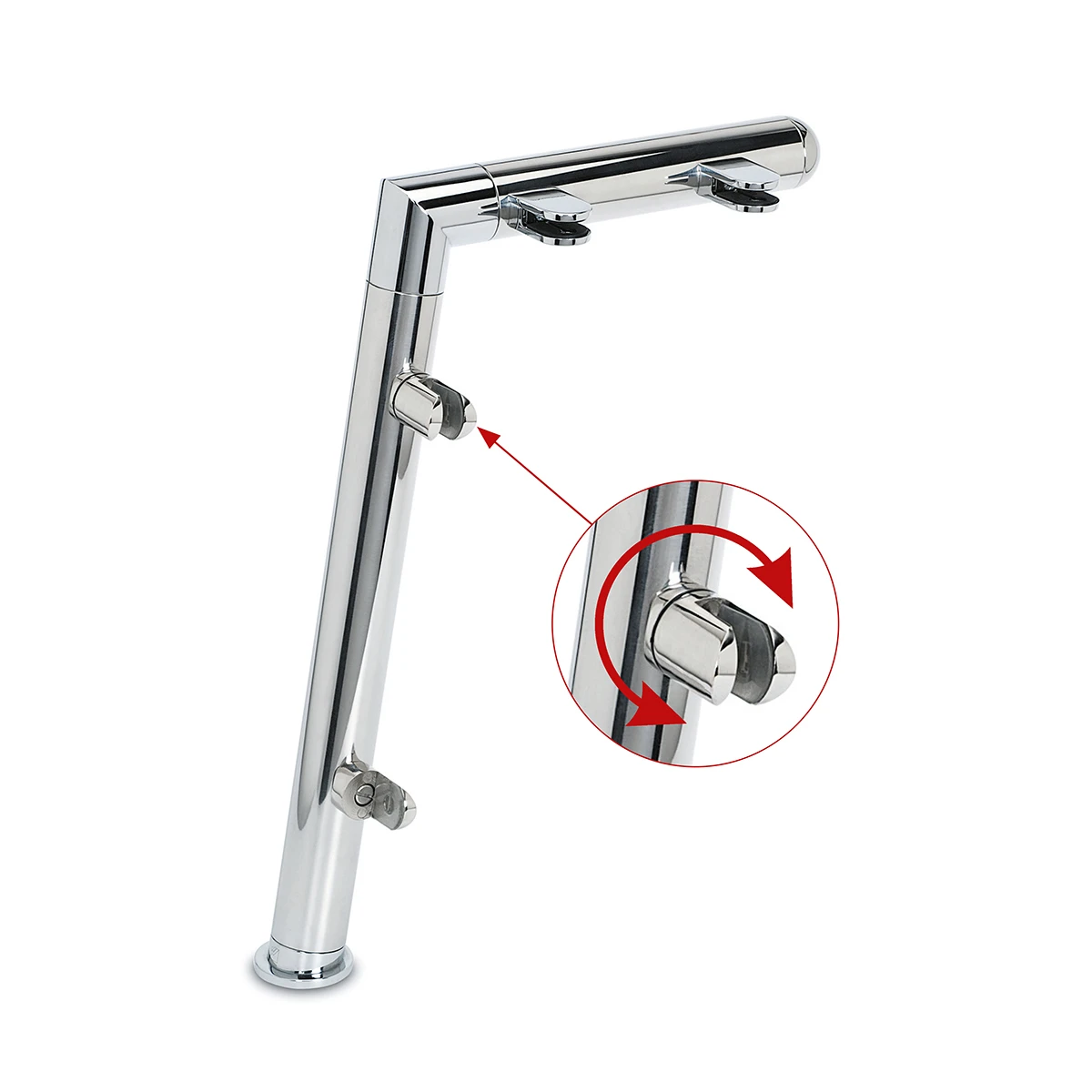

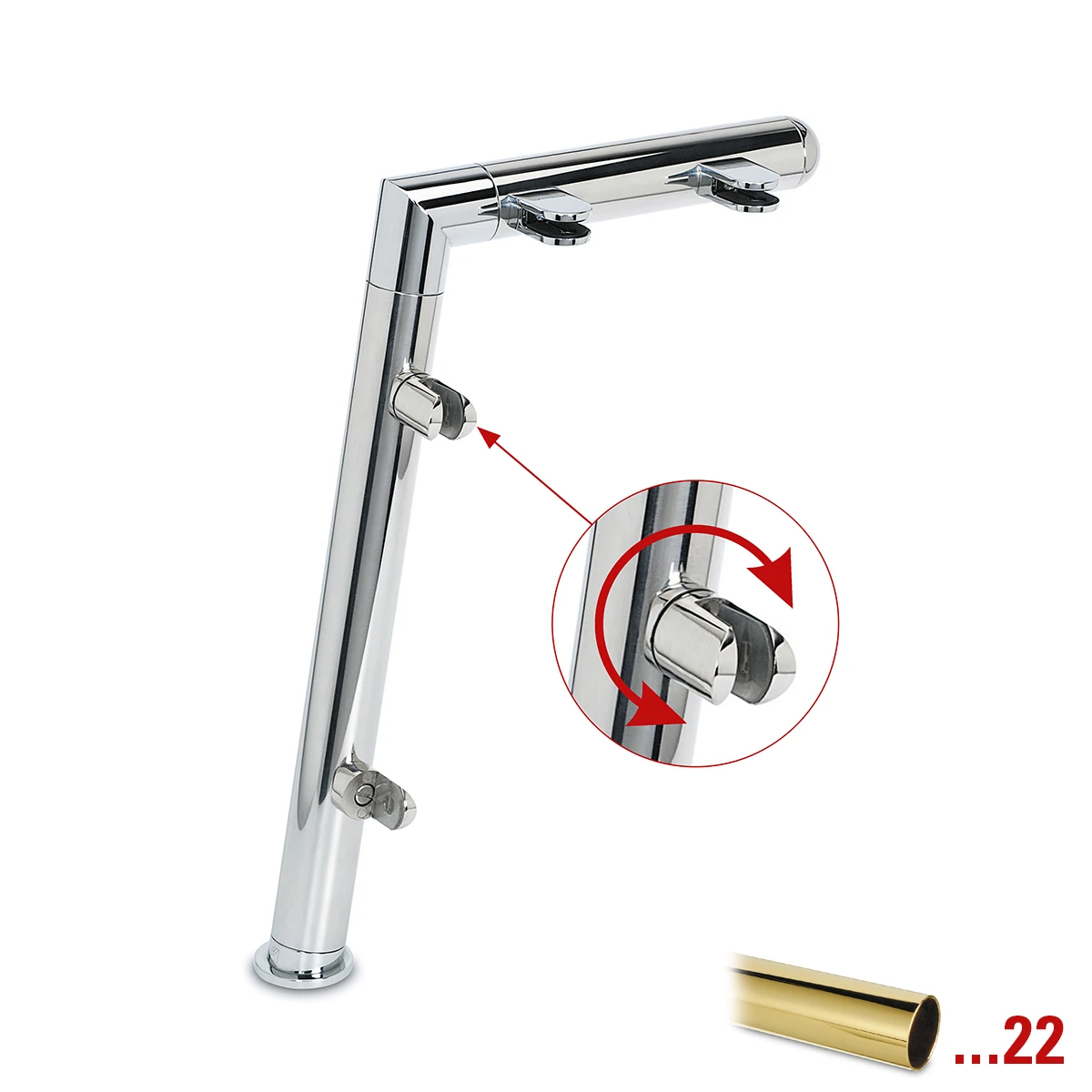

The glass post ESTELIE makes a contemporary statement in the design of railings with its striking 80° angle. It is available as an end post on the left, right and center post, suitable for various requirements.
Choose your preferred diameter between 25.4 mm and 38.1 mm to achieve the desired appearance. The combinable glass thickness of 4 to 8.76 mm opens up creative design options for a wide variety of glass designs.
With a height of 400 mm, the mullion offers the ideal balance between security and visual aesthetics. The precise workmanship and robust material guarantee long-lasting stability.
Calculate glass: | W - 49 mm |
---|---|
Diameter Ø: | 25,4 mm (1") |
Different dimensions possible: | yes |
Execution: | Endpost left |
Height in mm: | 400 mm |
Product type: | VMP (Pre-mounted product) |
Quantity glass holder: | 4 |
Tube type: | Round tube |
File | Category | Size | Filetype | Prio |
---|---|---|---|---|
77-20-1211-025.dxf | CAD file | 16.16 MB | dxf |
