PREMIUM Sliding door with lift protection Bertie
Don't see prices yet or want information about delivery?
Simply login with your G-Fittings account and you will see all the important information.
- Exclusive B2B Prices
- Fast & Easy Ordering Process
- Real-Time Availability & Stock Levels
- Purchase on Account for Business Customers
Do you need assembly instructions, CAD drawings, certificates or similar? You will find everything you need here on our website.

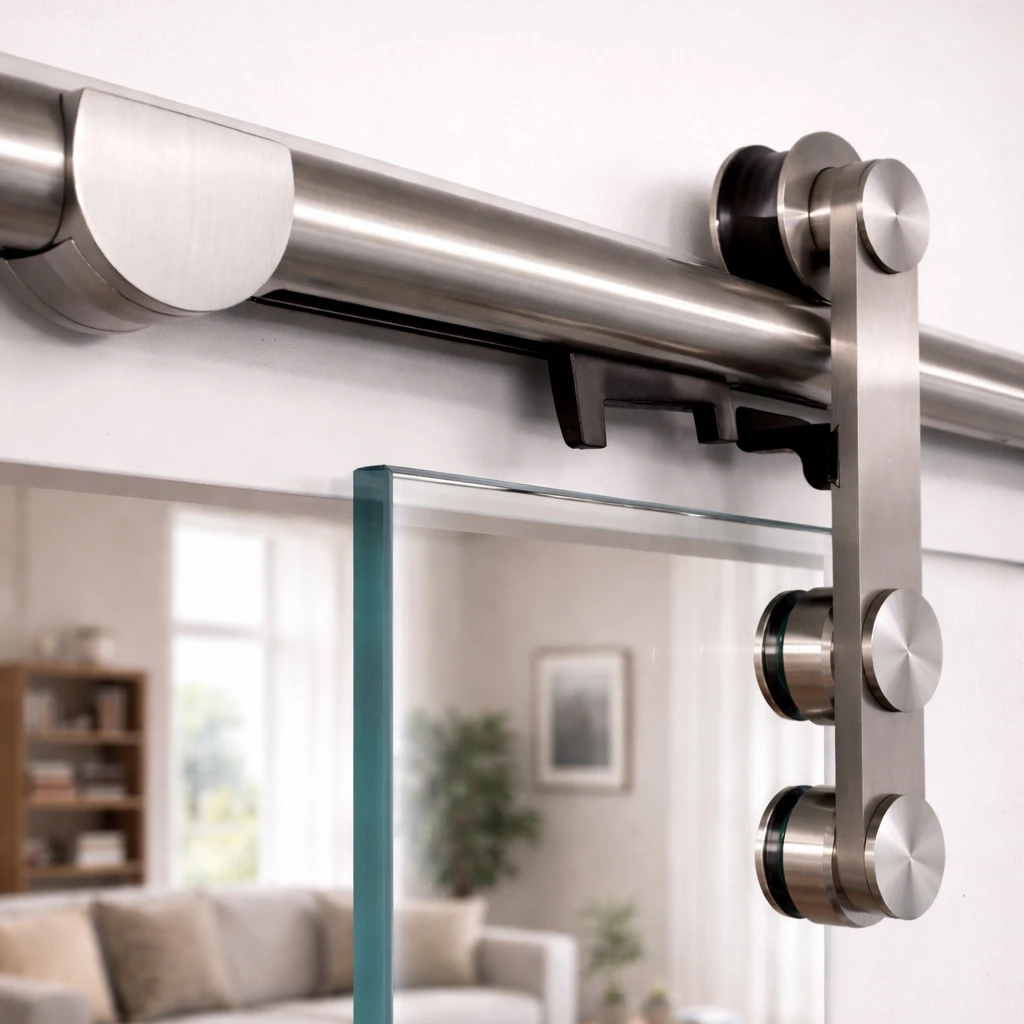

The BERTIE sliding door system is a stainless steel sliding door fitting designed for installation on the wall or on fixed glass side panels. The integrated sliding door with Softclose ensures that the door leaf is intercepted before the end position and gently retracted. This prevents the glass from hitting hard and protects the fittings. Safety and smooth running are the key features of this model. The carriage is equipped with an anti-lift device that is inserted directly into the carriage. The system is designed to be barrier-free, as no floor track is required. Only a small floor guide keeps the glass on track.
- NEW: with soft-close mechanism on both sides
- Sliding door fitting and components made of high-quality stainless steel
- Anti-lift device for sliding into the carriage

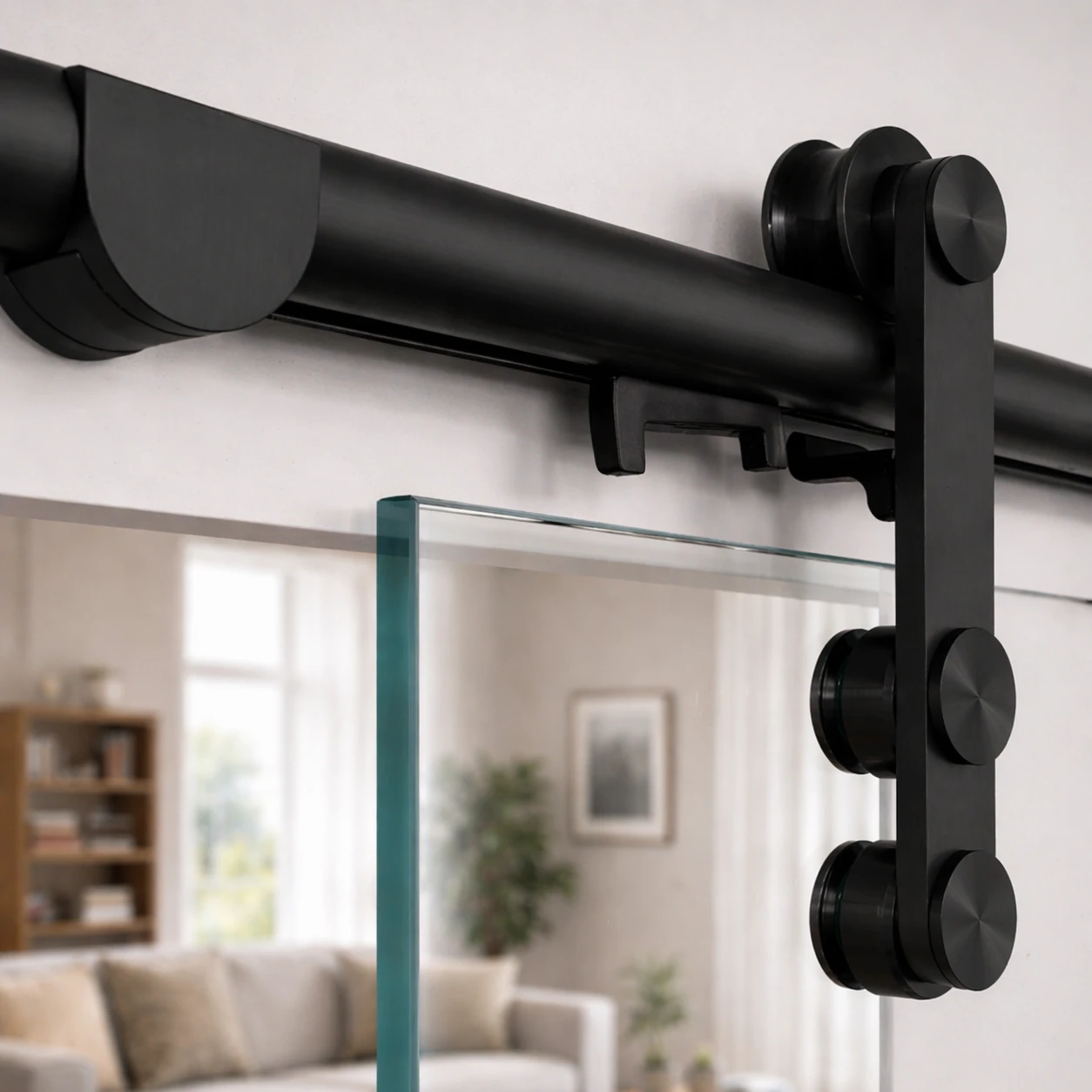

- Matt stainless steel or black surface finish
- Height-adjustable (± 4 mm)
- Point fixings with concealed screws
- Suitable for glass thicknesses from 8 mm to 12.76 mm
- Barrier-free without floor rail
- Made of V2A stainless steel
- Extremely smooth-running and quiet
- Easy to install
- incl. mounting material and floor guide
| Barrier-free: | yes |
|---|---|
| Diameter Ø Glass hole: | 26 mm |
| Distance between fixed and mobile glass: | 13 mm |
| End caps: | yes |
| Finish: | Anthracite black design , Stainless steel design |
| Floor guide: | yes |
| Glass cut outs: | yes |
| Glasstärke: | 8 - 12,76 mm |
| Height adjustment: | ± 4 mm |
| Integrated / concealed carriage: | no |
| Length: | 2500 mm |
| Material: | Stainless steel 304 (V2A) |
| Mounting type: | All-glass wall , Glass / Wall , Wall |
| Number of rails: | 1 |
| Recessed grip: | yes |
| Soft-close: | optional |
| Through-bore: | yes |
| max. Number of panels: | 1 |
| 77-29-5131-xxx_datasheet_G-FITTINGS.pdf | Datasheet | 1.95 MB |
|---|
