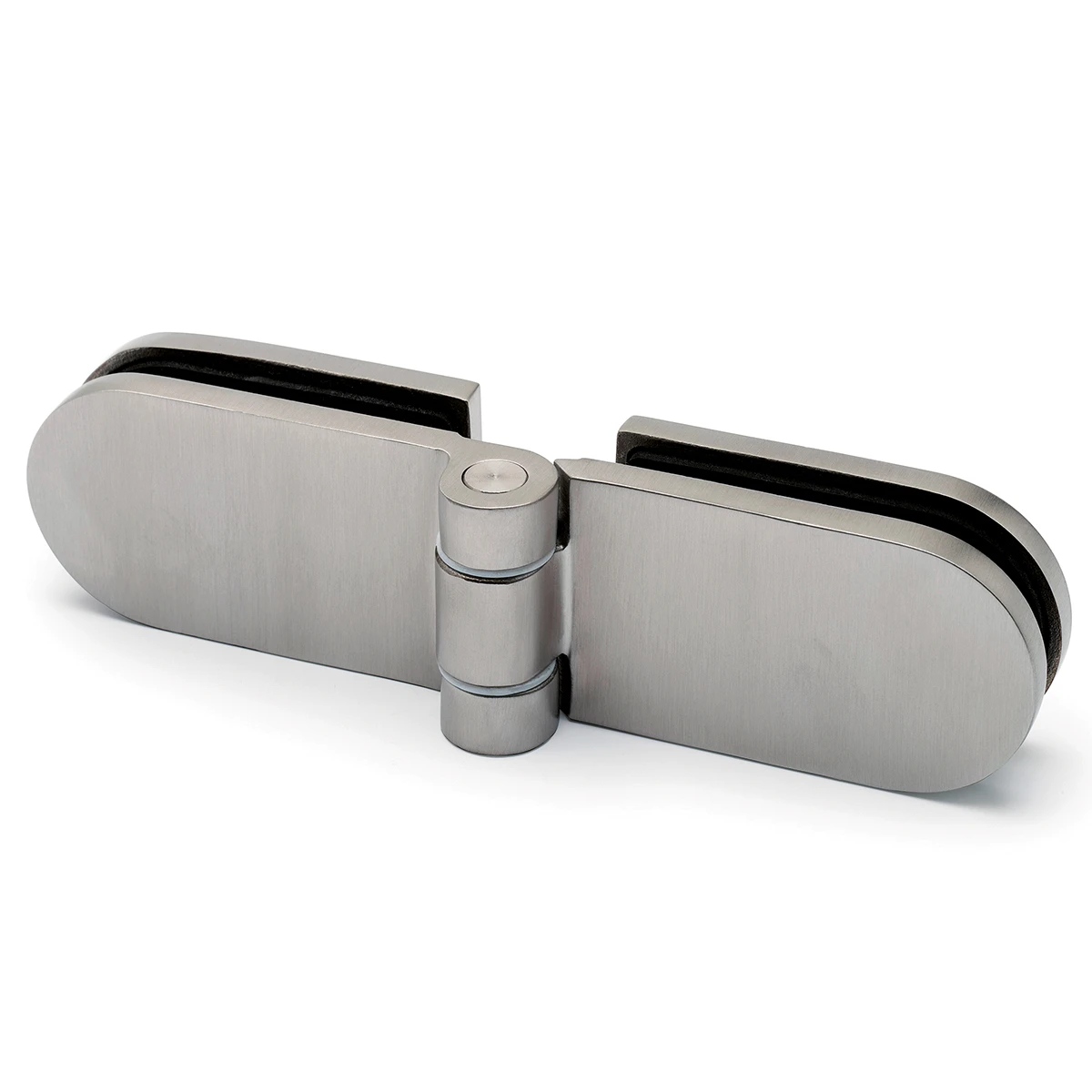

Glass door hinge Kirstin

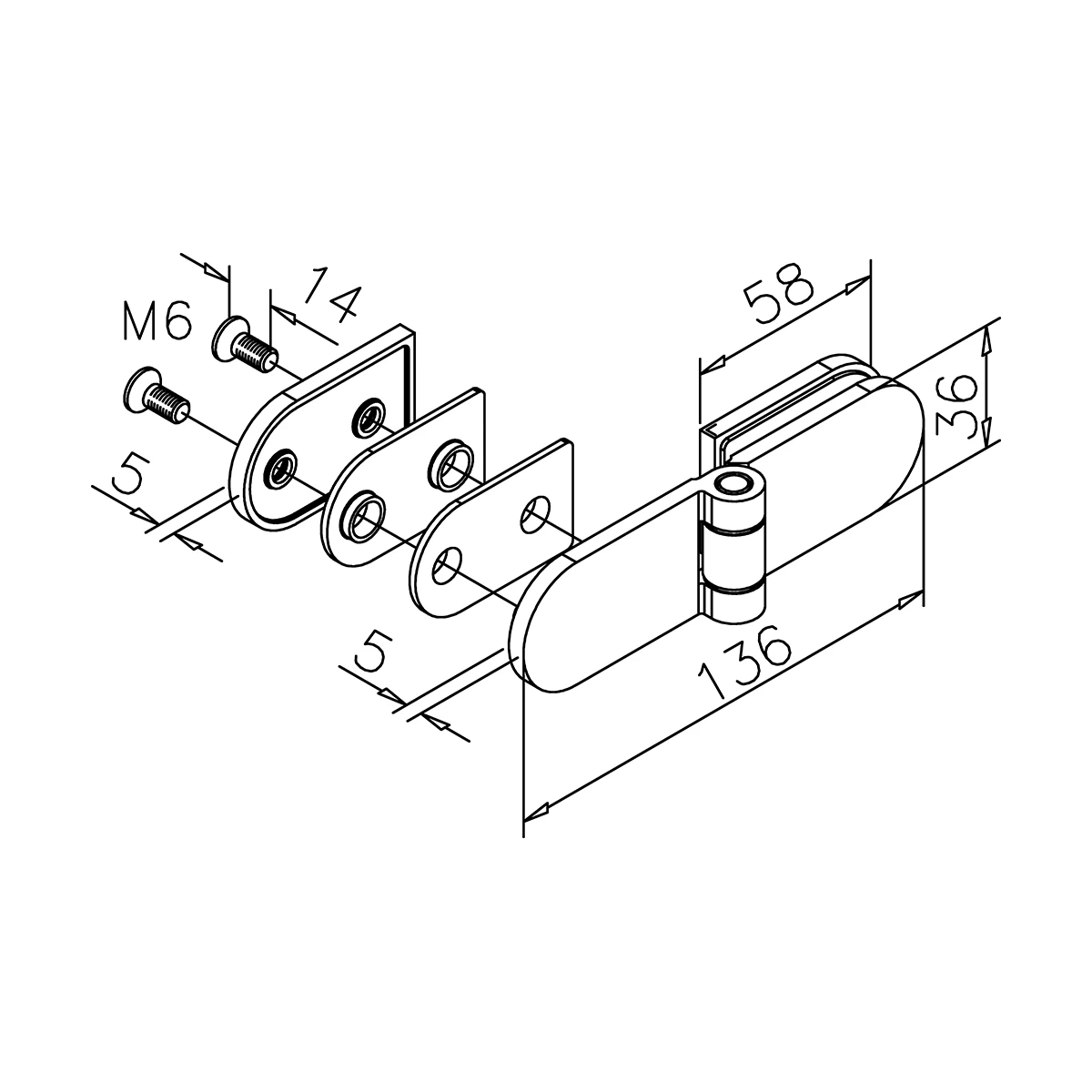

  • 41.0405.000.12
    • Stainless steel design
    • 36 mm
    • 136 mm
    • 29 mm
    Product information "Glass door hinge Kirstin"
    Djustable zero position: no
    Opening direction: DIN left / DIN right
    Flush mounted: no
    Hydraulic: no
    max. door width: 800 mm
    max. door weight: 45 kg
    Glass cut outs: yes
    Glass thickness: 6 - 10 mm
    Material: Stainless steel 304 (V2A)
    Mounting type: All-glass wall
    Finish: Stainless steel design
    Self-closing: no
    Diameter Ø Glass hole: 13 mm
    Show more Variants

    Order number Picture Variant
    41.0405.000.10
    Glass door hinge Kirstin
    Mounting type: Glass / Glass
    Surface: Chrome design

    Ready to ship today, Delivery time appr. 3-5 workdays

    41.0405.000.12
    Glass door hinge Kirstin
    Mounting type: Glass / Glass
    Surface: Stainless steel design

    Ready to ship today, Delivery time appr. 3-5 workdays

    41.0405.000.26
    Glass door hinge Kirstin
    Mounting type: Glass / Glass
    Surface: Anthracite black design

    Ready to ship today, Delivery time appr. 3-5 workdays

    41.0406.000.10
    Glass door hinge Kirstin
    Mounting type: Glass / Wall
    Surface: Chrome design

    Ready to ship today, Delivery time appr. 3-5 workdays

    41.0406.000.12
    Glass door hinge Kirstin
    Mounting type: Glass / Wall
    Surface: Stainless steel design

    Ready to ship today, Delivery time appr. 3-5 workdays

    41.0406.000.26
    Glass door hinge Kirstin
    Mounting type: Glass / Wall
    Surface: Anthracite black design

    Ready to ship today, Delivery time appr. 3-5 workdays
