Do you need assembly instructions, CAD drawings, certificates or similar? You will find everything you need here on our website.

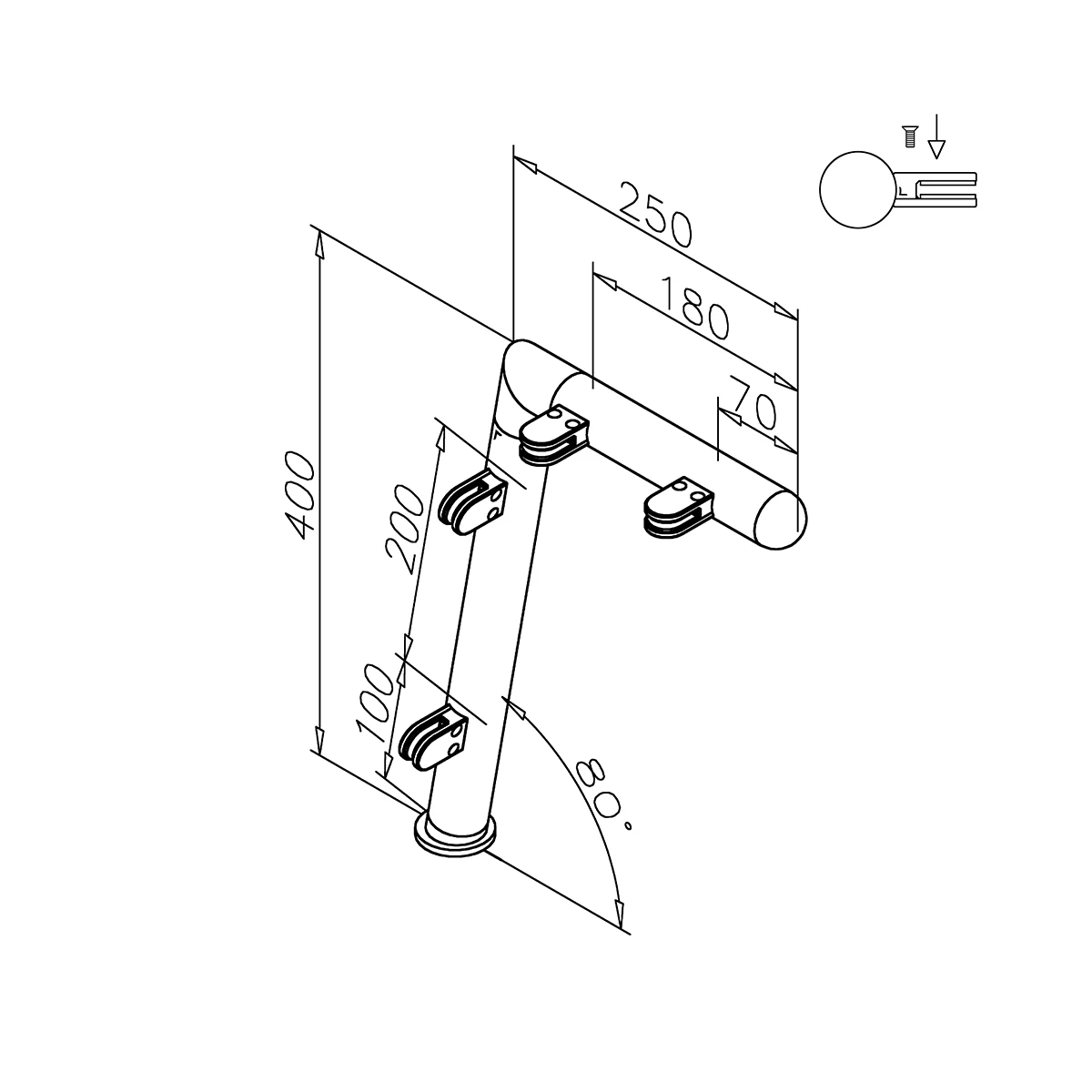

The BRENNA upright impresses with its contemporary design and high-quality finish in V2A stainless steel. With its striking 80° angle, it brings a modern, dynamic look to any hygiene system. It is available in left-hand end post, right-hand end post and center post versions and can therefore be flexibly adapted to different concepts. The stainless steel or black finish options enable harmonious integration into a wide range of styles.
With a choice of diameters of 25.4 mm or 38.1 mm, BRENNA offers the right solution for a wide range of design requirements. Equipped with four glass clamps (or eight for the center post version), the post ensures secure fastening and clear, elegant lines. The clamps are designed for 8 mm glass as standard, but can also accommodate glass thicknesses between 4 and 8.76 mm with the aid of rubber seals.
| Calculate glass: | W - 61 mm |
|---|---|
| Diameter Ø: | 38,1 mm (1,5") |
| Different dimensions possible: | yes |
| Execution: | Endpost left |
| Finish: | Stainless steel design |
| Height in mm: | 400 mm |
| Material: | Stainless steel 304 (V2A) |
| Product type: | VMP (Pre-mounted product) |
| Quantity glass holder: | 4 |
| Tube type: | Round tube |
| 77-20-1201-038.dxf | CAD file | 4.58 MB | dxf |
|---|
