Recessed grip for glass door Alieonor
Product number:
77470103060-12
Description

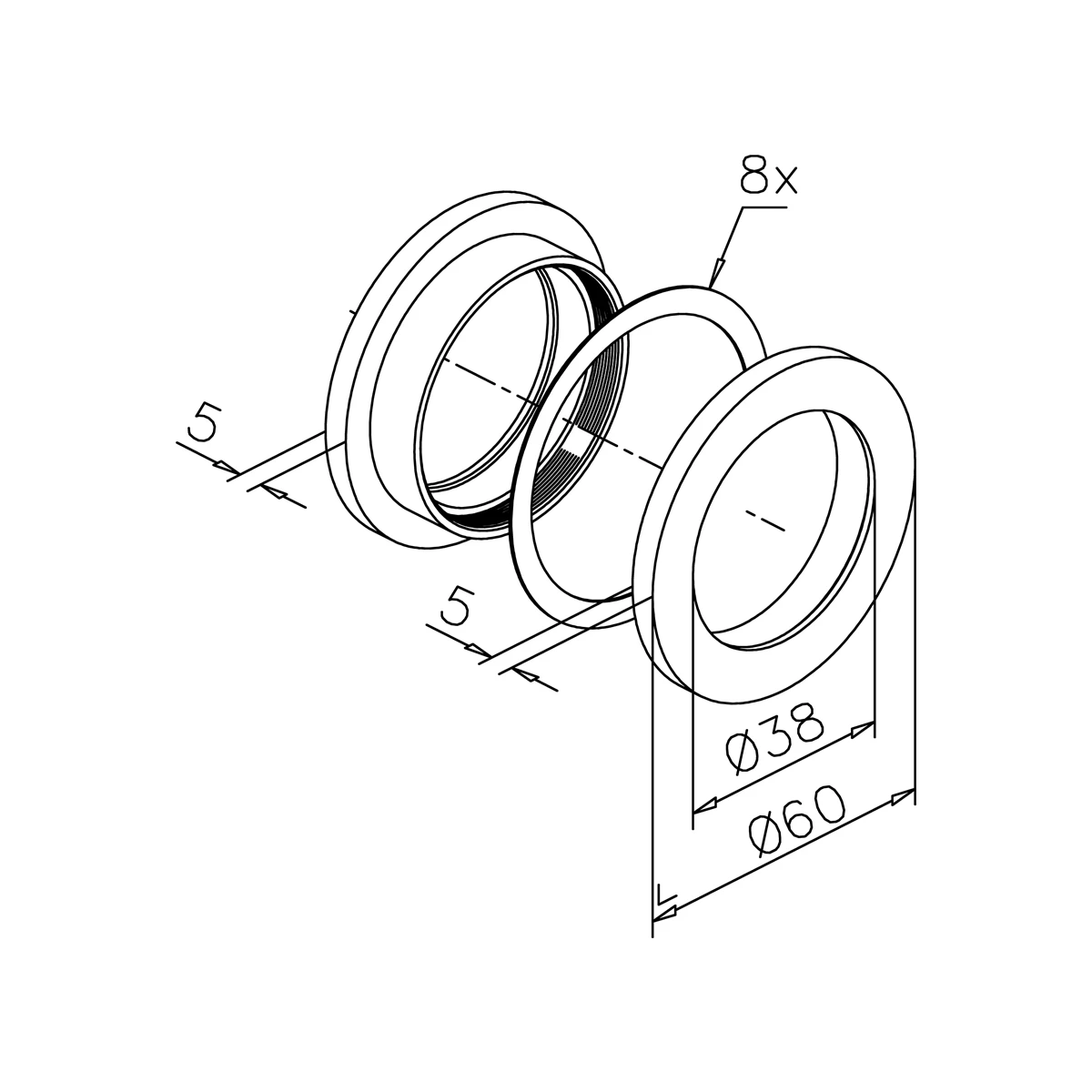

The ALIEONOR handle shell made of stainless steel is an elegant handle for all types of glass doors. The inner diameter of 38 mm and the outer diameter of 60 mm allow a good grip when opening and closing the door, Assembly is easy without tools. To do this, the glass door requires a pilot hole and the recessed handle is screwed in. This ensures that the shell grip is held securely.

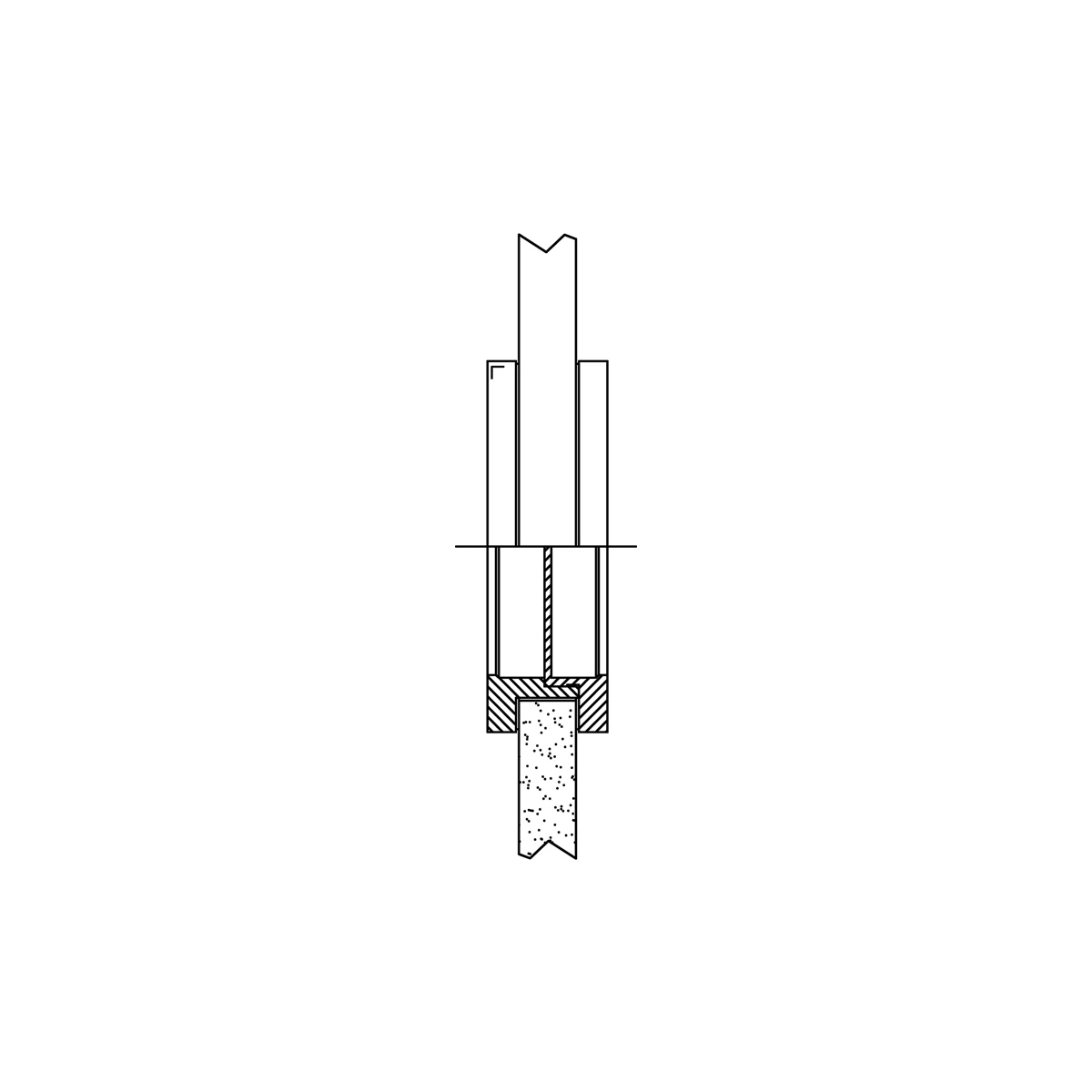

The shell handle is suitable for a glass thickness of 8 - 12 mm.
Properties
| Bore in mm: | 50 mm |
|---|---|
| Depth in mm: | 5 mm |
| Door thickness in mm: | 8 - 12 mm |
| Finish: | Stainless steel design |

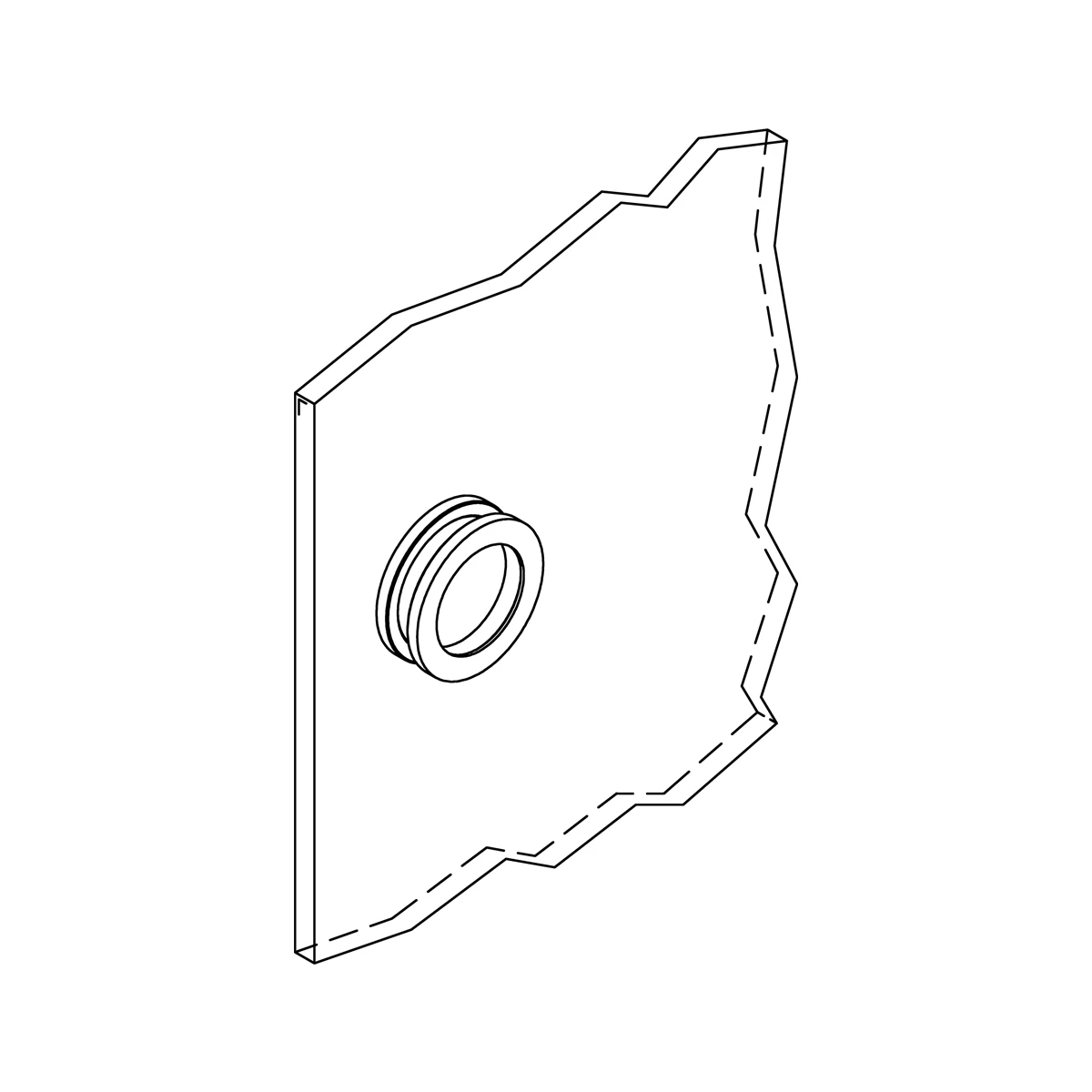

| Mounting on: | Glass |
Downloads
| 77-47-0103-060_datasheet_G-FITTINGS.pdf | Datasheet | 210.49 KB | |||
|---|---|---|---|---|---|
| 47-0103-060-xx.dxf | CAD file | 733.46 KB | dxf |
3 variants available
