Rectangular glass door lock, lockable Sitan
Product number:
77452260902-12
Description
The SITAN glass door lock is the ideal choice for sophisticated interiors that value quality and design. The lock case of this glass door lock is made of high-quality stainless steel AISI 304 (V2A) and is available in stainless steel, black and silver matt anodized finishes. This choice of material and finish not only ensures durability and corrosion resistance, but also stylish integration into various interior design styles.
The compatibility of the lock case with glass doors of different thicknesses is particularly noteworthy. The SITAN lock case is suitable for glass doors with a thickness of 8 to 10 mm and supports glass processing up to a thickness of 10 mm. This flexibility makes it the perfect solution for a wide range of door installations.
Another important aspect is the opening direction, which is suitable for both DIN left and DIN right, which expands the possible applications. The lock case comes without a lever handle and profile cylinder, giving you the option of selecting these components individually according to your requirements.

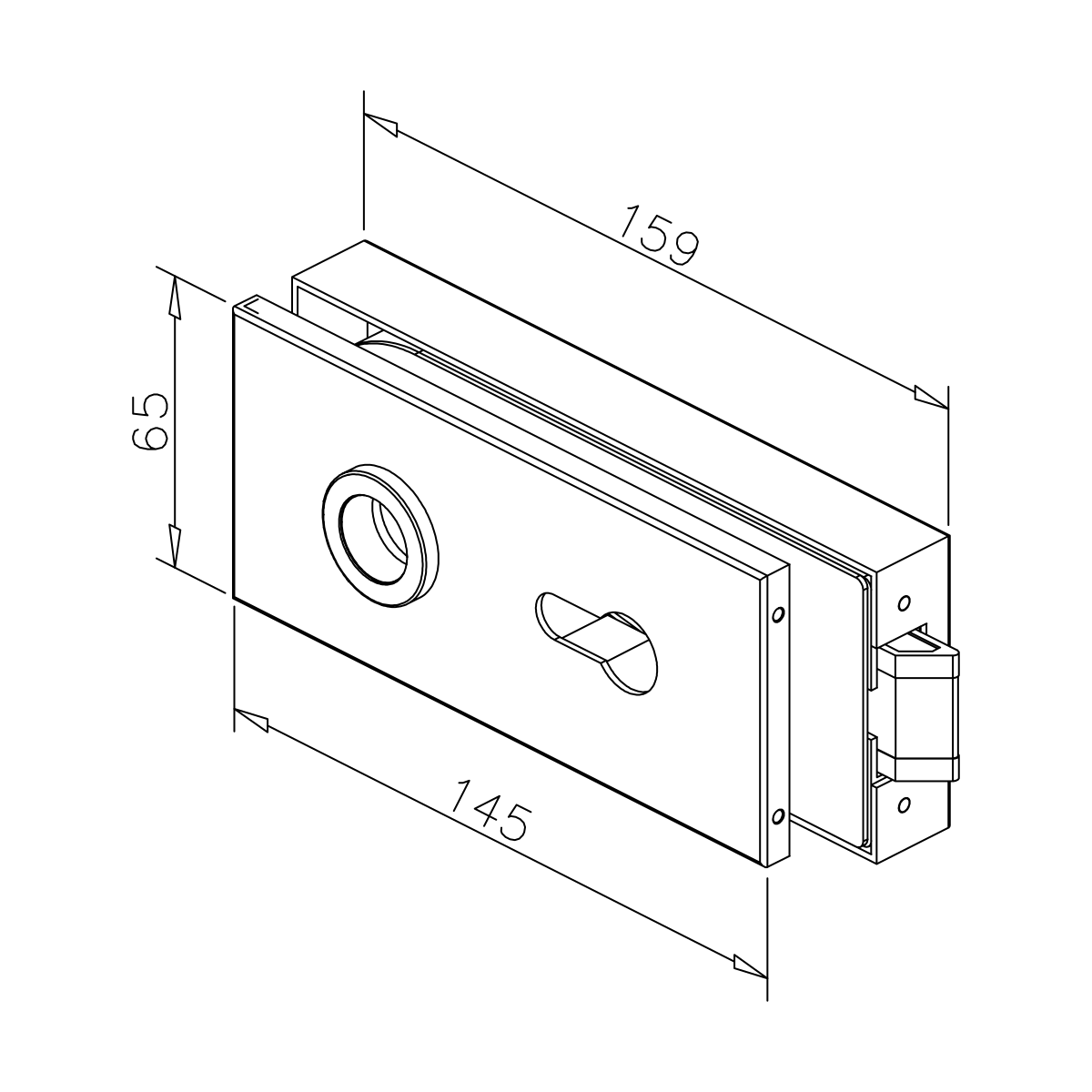

The quiet and reliable function is supported by the integrated whisper latch. The maximum door width and the maximum door weight that this glass door lock can handle are further indicators of its robustness and versatility. With a depth of 36 mm, a width of 158 mm and a height of 65 mm, the lock case is compact yet functional. The locking mechanism is based on a magnetic hook latch, which provides additional security.
Highlights:
- High-quality stainless steel AISI 304 (V2A)
- Available in stainless steel, black and silver matt anodized
- For glass door thicknesses from 8 to 10 mm
- Flexible for DIN left and DIN right
- Glass through-hole Ø 45 mm
- Integrated whisper latch
- Magnetic hook latch for additional security
Properties
| Depth in mm: | 45 mm |
|---|---|
| Diameter Ø Glass hole: | 45 mm |
| Door handle included: | no |
| Finish: | Stainless steel design |
| Glass cut outs: | yes |
| Glasstärke: | 8 - 10 mm |
| Height in mm: | 65 mm |
| Hook trap: | no |
| Lockable: | yes |
| Look: | Studio |
| Magnetic: | no |
| Material: | Stainless steel 304 (V2A) |
| Opening direction: | DIN left / DIN right |
| Shape: | square |
| Strike plate included: | no |
| Through-bore: | yes |
| Whisper Trap: | yes |
| Width in mm: | 159 mm |
Downloads
| 77-45-2260-902_datasheet_G-FITTINGS.pdf | Datasheet | 309.14 KB | |||
|---|---|---|---|---|---|
| 77-45-2260-902-xx.dxf | CAD file | 2.50 MB | dxf |
