Rectangular glass door lock, non-locking Sissi

Product number: 77452260901-12
Description

The rectangular, non-locking glass door lock SISSI impresses with its high quality and modern design. Made from robust AISI 304 (V2A) stainless steel, it offers a durable and stylish solution for glass doors. The SISSI lock case is available in stainless steel, black and silver matt anodized finishes, allowing it to blend harmoniously into any environment.

Suitable for glass doors with a thickness of 8 to 10 mm, the SISSI glass door lock ensures a secure hold and easy handling. Thanks to the integrated whisper latch and the optional hook latch, it ensures quiet operation and a high level of security.

The door lock for glass doors is suitable for both DIN left and DIN right opening doors, allowing flexible installation. The SISSI lock case comes without a profile cylinder and lever handle, but offers the option of individual customization.

Properties

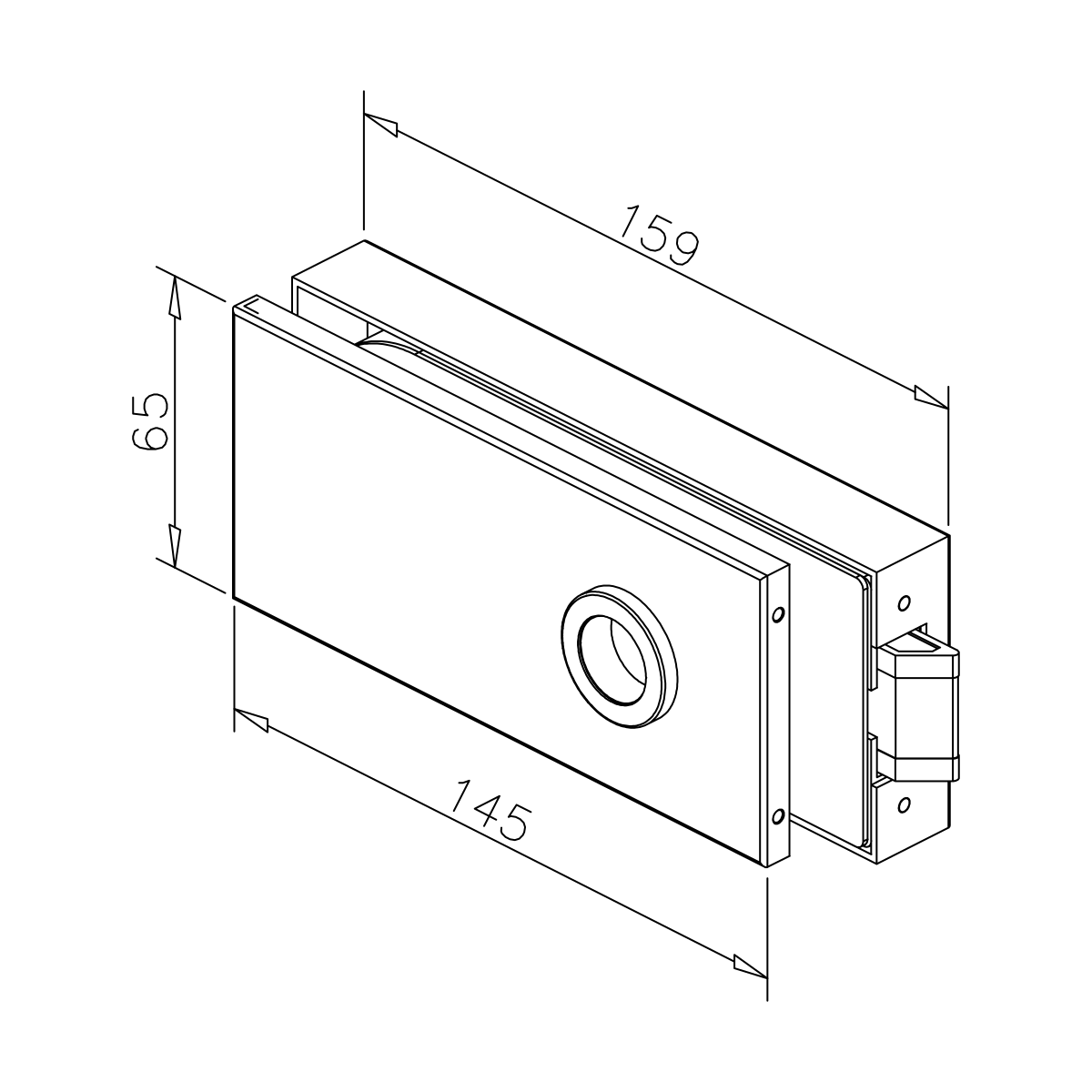

Depth in mm: 45 mm
Diameter Ø Glass hole: 45 mm
Door handle included: no
Finish: Stainless steel design
Glass cut outs: yes
Glasstärke: 8 - 10 mm
Height in mm: 65 mm
Hook trap: no
Lockable: no
Look: Studio
Magnetic: no
Material: Stainless steel 304 (V2A)
Opening direction: DIN left / DIN right
Profile cylinder included: no
Shape: square
Strike plate included: yes
Through-bore: yes
Whisper Trap: yes
Width in mm: 159 mm
Downloads
Datasheet
77-45-2260-901-xx.dxf
dxf - 2.41 MB
CAD file
77-45-2260-901_datasheet_G-FITTINGS.pdf Datasheet 275.19 KB pdf
77-45-2260-901-xx.dxf CAD file 2.41 MB dxf
