Product information "Shower door fitting Emily"
The EMILY shower door fitting with narrow wall connection profile lifts the door comfortably when it is opened. The fitting is suitable for 6 mm glass and is available in different surfaces.
- Glass thickness 6 mm toughened safety glass
- with lifting/lowering mechanism for easy opening and closing (± 4 mm)
- Fixed on both sides at 90°
- Variable profiles compensate for uneven walls (± 8 mm)
- 180° swing doors
- Profile length 2000 mm
- different surfaces
- High quality fittings
- Plastic seals for wall and floor (optionally available)

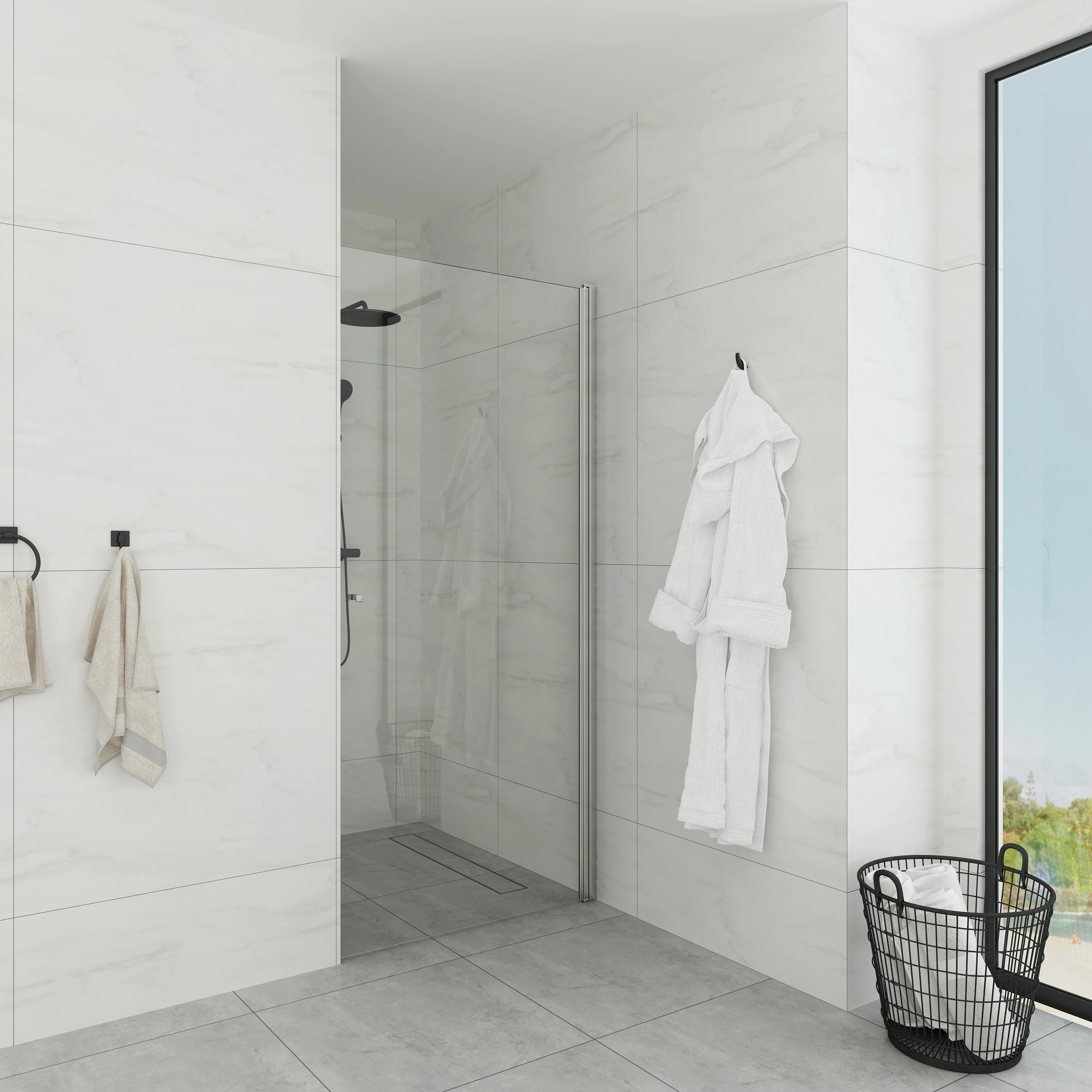

- Use as a corner shower, shower cubicle next to a bathtub, walk-in shower, alcove shower and U-shape shower
Scope of delivery
- 1 x wall profile
- 1 x intermediate profile
- 1 x glass profile
- 2 x end caps
- 1 x Ø 3 mm metal drill bit
- 1 x 5mm Allen Wrench
- 1 x 2.5mm Allen Wrench
- mounting screws and dowels
Different dimensions possible: | no |
---|---|
Djustable zero position: | no |
Door type: | Swinging |
Finish: | silver matt anodized |
Flush mounted: | no |
Glasstärke: | 6 mm |
Hidden wall mounting: | yes |
Hold-Open: | 90° |
Lift height: | ± 4 mm |
Material: | Aluminium |
Mounting type: | Wall |
Opening direction: | DIN left / DIN right |
Rise and fall mechanism: | yes |
Self-closing: | yes |
Soft-close: | no |
max. door height: | 1976 mm |
max. door weight: | 25 kg |
max. door width: | 900 mm |
File | Category | Size | Filetype | Prio |
---|---|---|---|---|
77-41-0902-200-xx.dxf | CAD file | 8.00 MB | dxf | |
77-41-0901-200_datasheet_G-FITTINGS.pdf | Datasheet | 408.75 KB | ||
41-0901-200-xx.dxf | CAD file | 17.29 MB | dxf |
