Synchro Sliding door incl. softclose and floorguide Almodis
Synchro sliding door ALMONIS is an elegant and functional solution for use in living rooms, offices and other areas where space is to be saved. The door consists of a sturdy aluminum frame and two glass elements. The sliding door is available in wall-mount, ceiling-mount and all-glass mounting options.
The Almodis synchro sliding door features a soft-close function thanks to the damper retraction system installed as standard. The damper retraction allows the sliding door to open and close quietly and smoothly. It increases the ease of use and prolongs the life of the door.

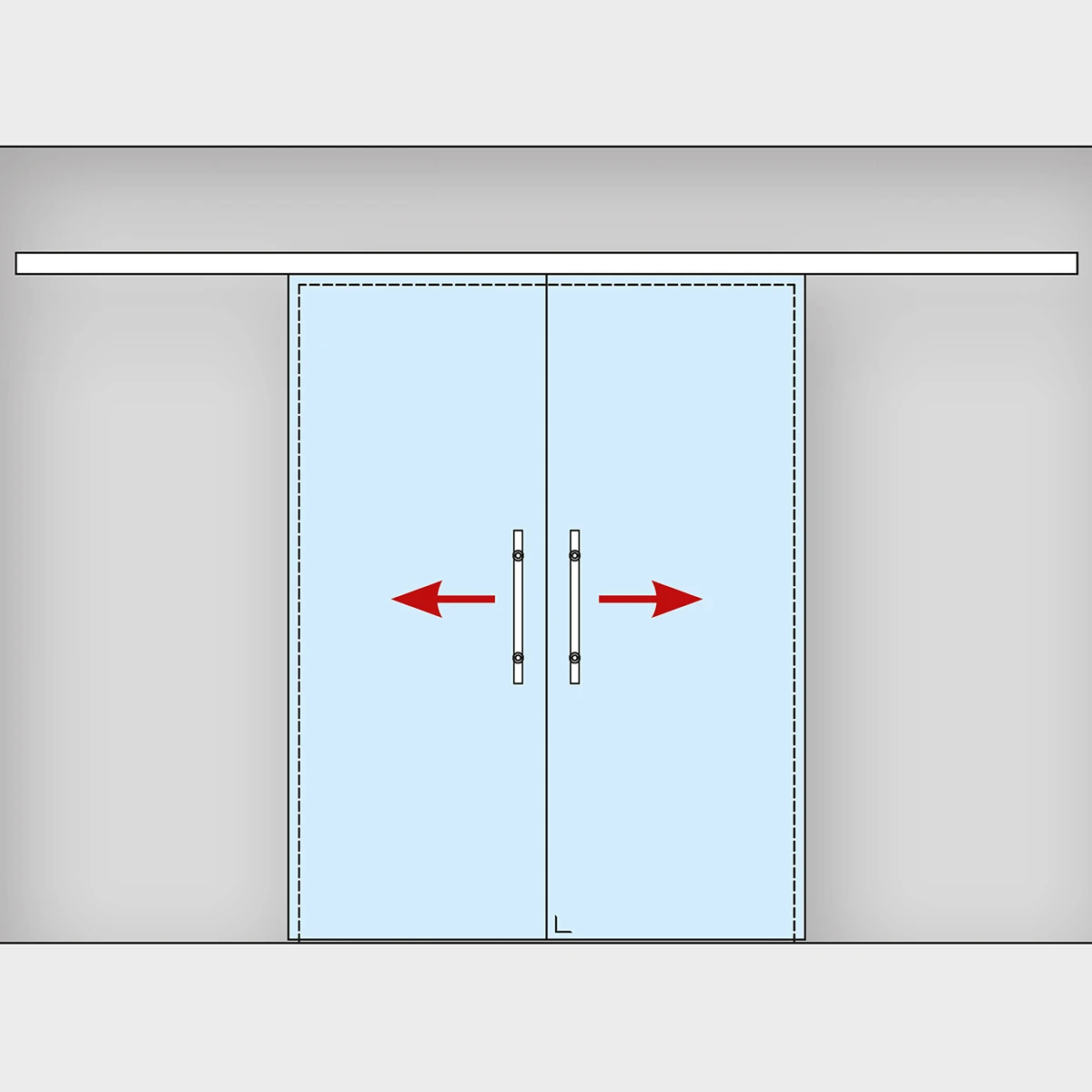

The synchro function of the sliding door causes the two glass doors to open and close synchronously. This is particularly convenient in small rooms, as it increases the passage width. The synchro function is achieved by a special hardware system that connects the two doors. The hardware system is designed so that the doors open and close evenly and synchronously, regardless of how hard they are opened. This ensures that the doors run smoothly and evenly.
Advantages:
- Saving space
- Elegant design
- Smooth running
- Quiet
- Safe
- Long-lasting
- Synchronous opening and closing of doors
Application areas:
- Living rooms
- Offices
- Businesses
- Exhibition spaces
- Restaurants
- Hotels
Technical specifications:
- Mounting options: Wall mounting, ceiling mounting, all-glass mounting
- Glass thickness: 8 - 12.76 mm
- Maximum door height: 2700 mm
- Maximum door weight: 100 kg
- No glass drilling is required for installation
- Surface: stainless steel, black or silver matt anodized
Scope of delivery:
- 2x drive set
- 5 m running track
- 5 m deck profile
- 4x damper retract
- 2x floor guide
- 1x Synchro Set
| Finish: | silver matt anodized |
|---|---|
| Glass cut outs: | no |
| Glasstärke: | 8 - 12,76 mm |
| Mounting type: | Wall |
| Normen: | EN 1527 |
| Soft-close: | yes |
| max. door height: | 2700 mm |
| max. door weight: | 100 kg |
| 77-29-5071-xxx-xx_manual_G-FITTINGS.pdf | Datasheet | 2.05 MB |
|---|
