Telescopic sliding door, 3 rails Madina
Product number:
7729130302046
Description

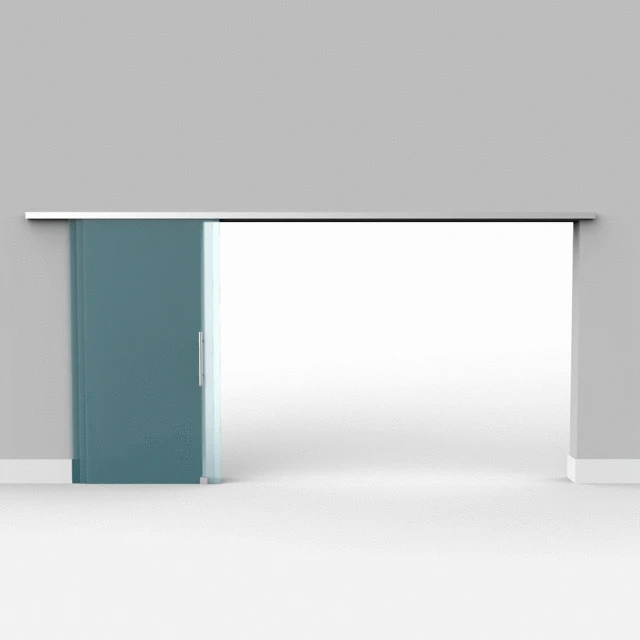

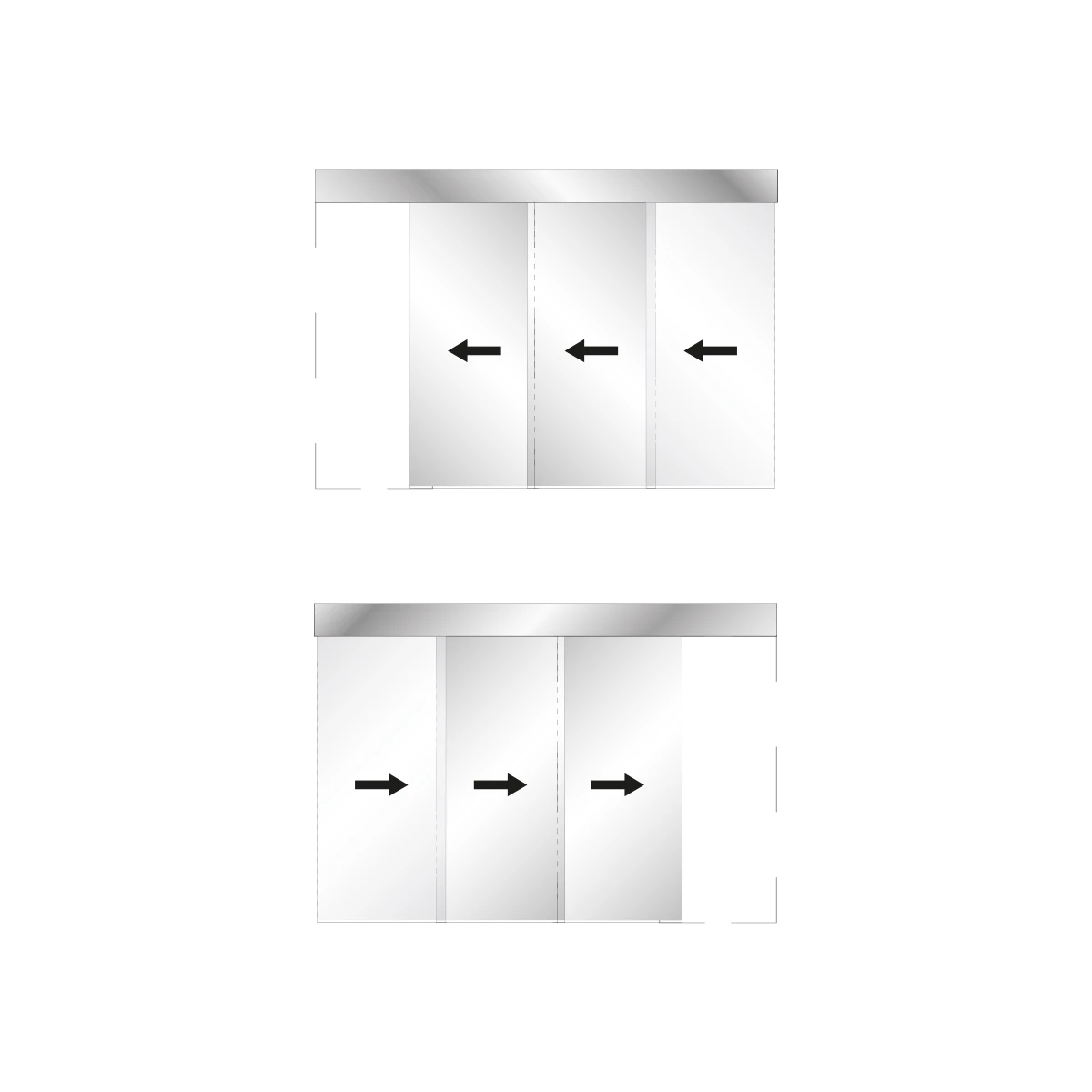

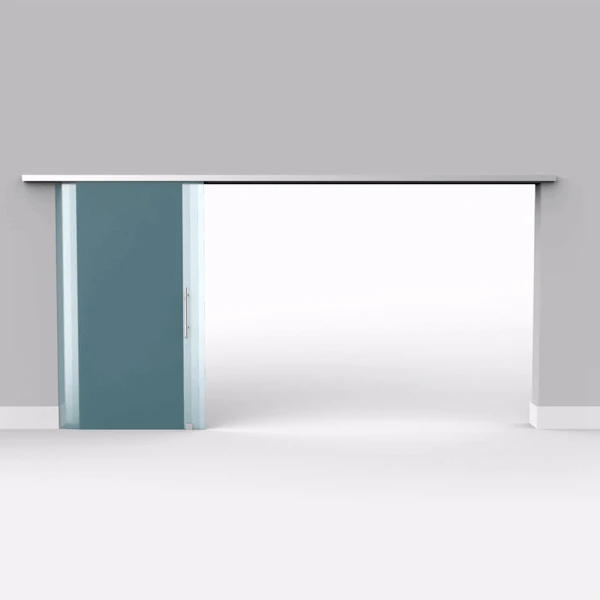

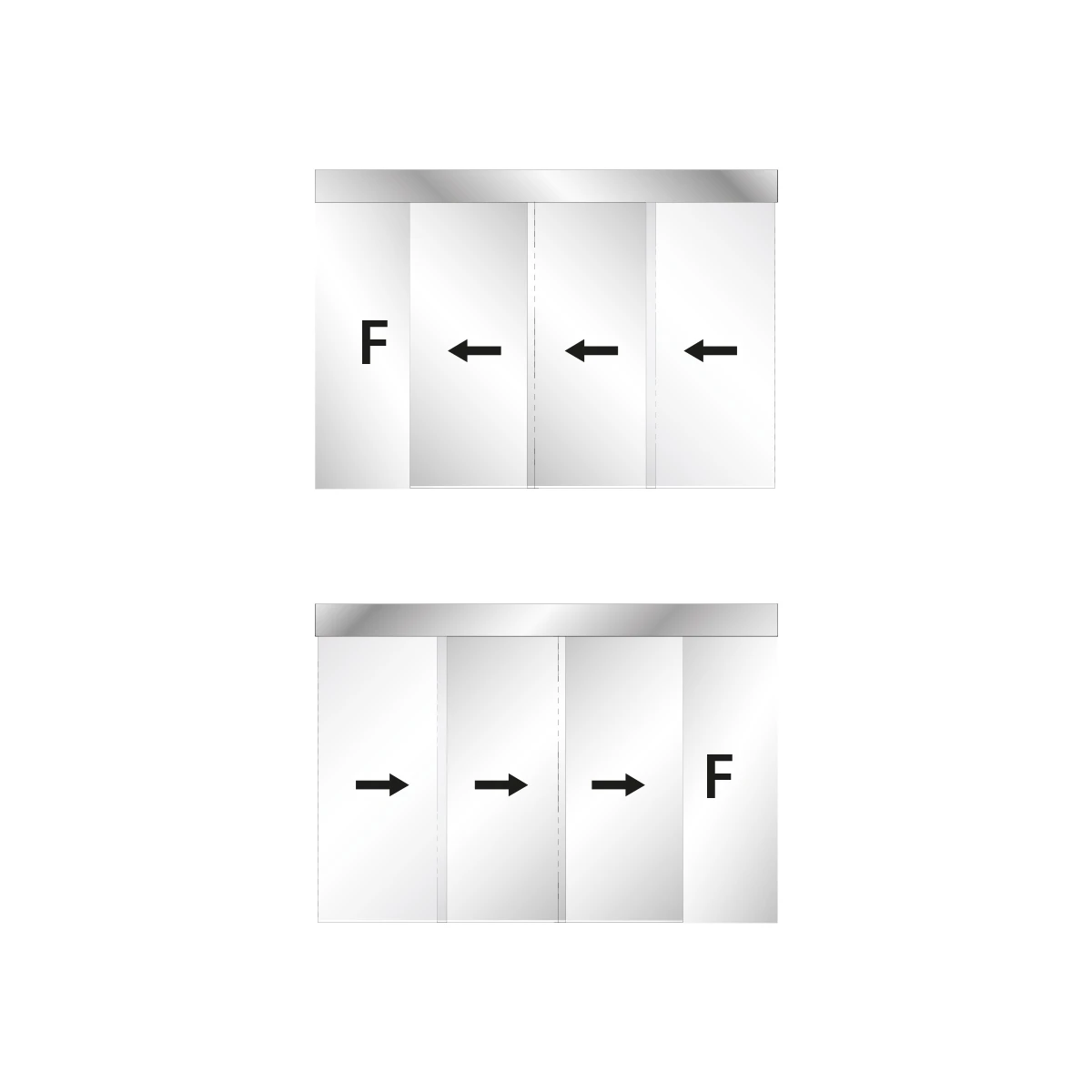

The MADINA telescopic sliding door system from G-Fittings enables two wings to be opened telescopically with just one movement. The running rail has 3 tracks and is suitable for invisible wall and ceiling mounting. The clamping technology makes glass processing superfluous. The variable carriages hold glass thicknesses between 8 and 10 mm as standard. After the glass has been installed, a height adjustment of +/-3 mm is possible. The system is ideal for a plasterboard construction where only 28 mm of the track is visible. Fixed glass is also an option for ceiling mounting.
Properties
| End caps: | no |
|---|---|
| Finish: | silver matt anodized |
| Floor guide: | yes |
| Glass cut outs: | no |
| Glasstärke: | 8 - 10 mm |
| Height adjustment: | ± 3 mm |

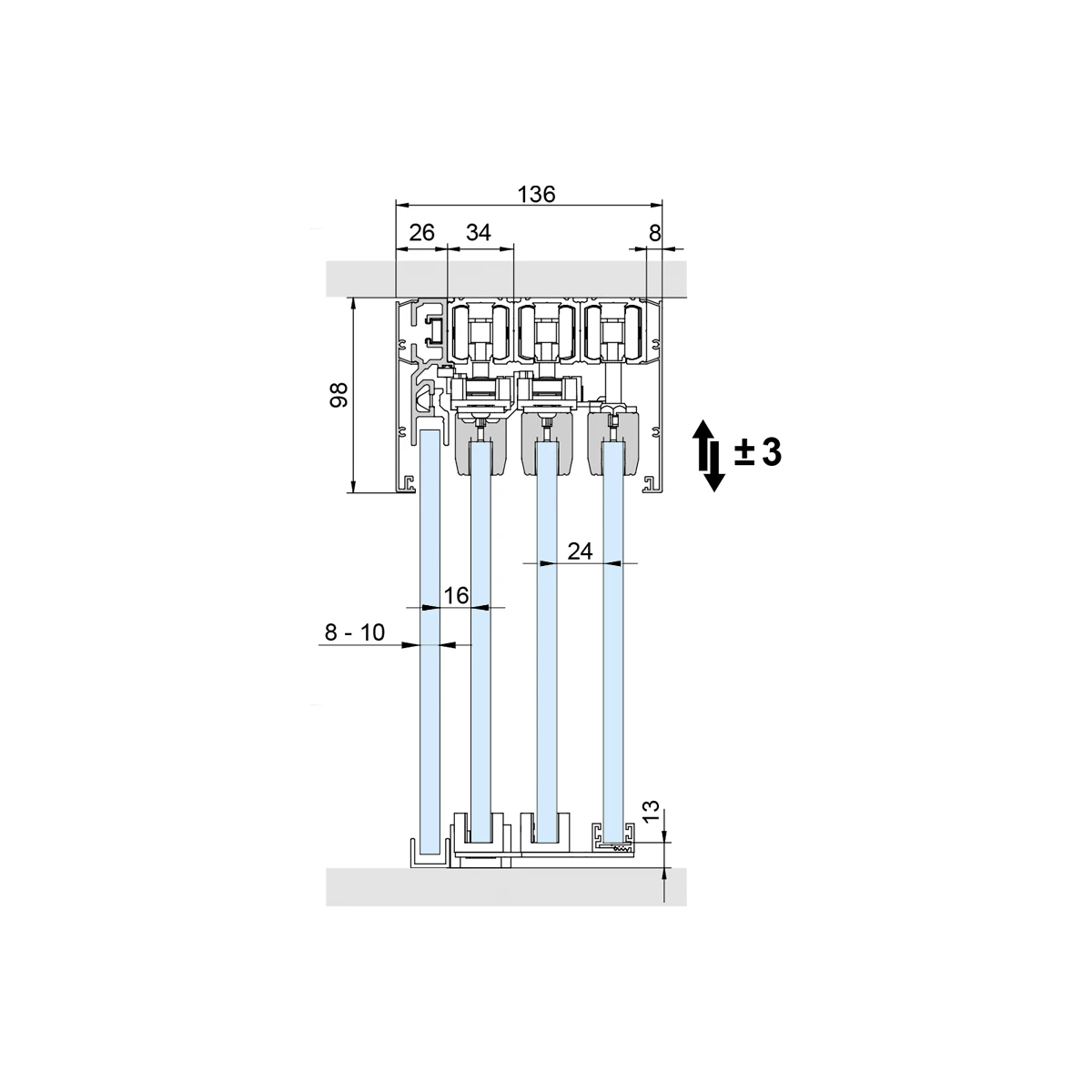

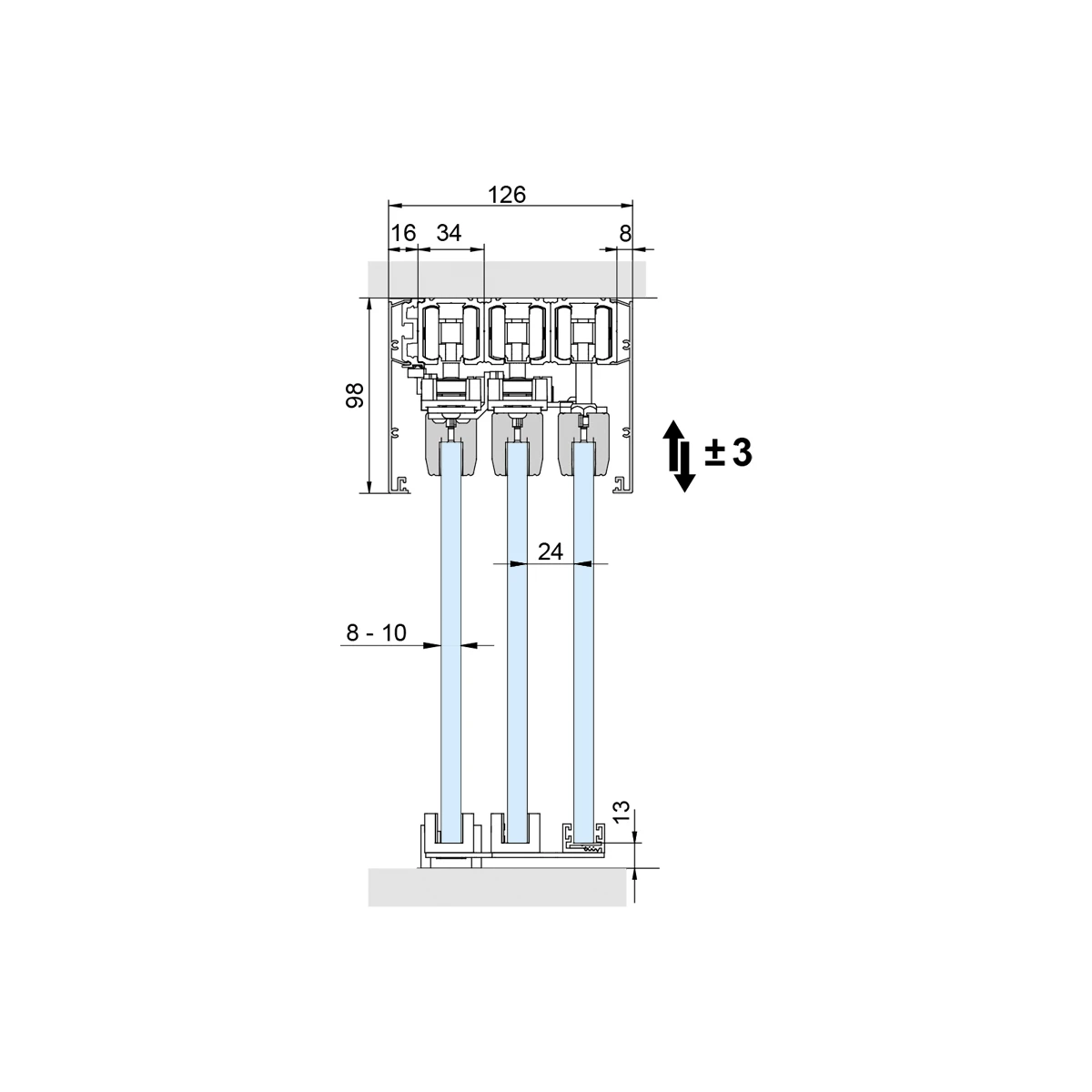

| Height profile: | 98 mm |
| Integrated / concealed carriage: | yes |
| Length: | 3000 mm |
| Material: | Aluminium |
| Mounting type: | Wall |
| Number of rails: | 3 |
| Recessed grip: | no |
| Soft-close: | optional |
| Through-bore: | no |
| max. door weight: | 120 kg |
| min. Door width: | 500 mm |
Downloads
| 29-13x3-0x0-46_technic_G-FITTINGS_5f1945632dd877-04429722.pdf | Datasheet | 2.84 MB |
|---|
6 variants available
