Terrace sliding glass wall CTO Agape
Product number:
77990066
Description
MODERN DESIGN AND FLEXIBILITY WITH THE AGAPE TERRACE GLASS SLIDING WALL CONFIGURATOR
The patio sliding glass wall configurator for Agape opens up limitless possibilities for you to design your outdoor areas exactly as you want them. Thanks to the intuitive configuration process, you can design your patio or balcony glazing entirely according to your needs, combining modern design with flexibility.
The configurator guides you step by step through the customization of your sliding glass wall:
- Opening direction: Choose from the options left, right or a sliding wall that opens to both the left and right to determine your preference.

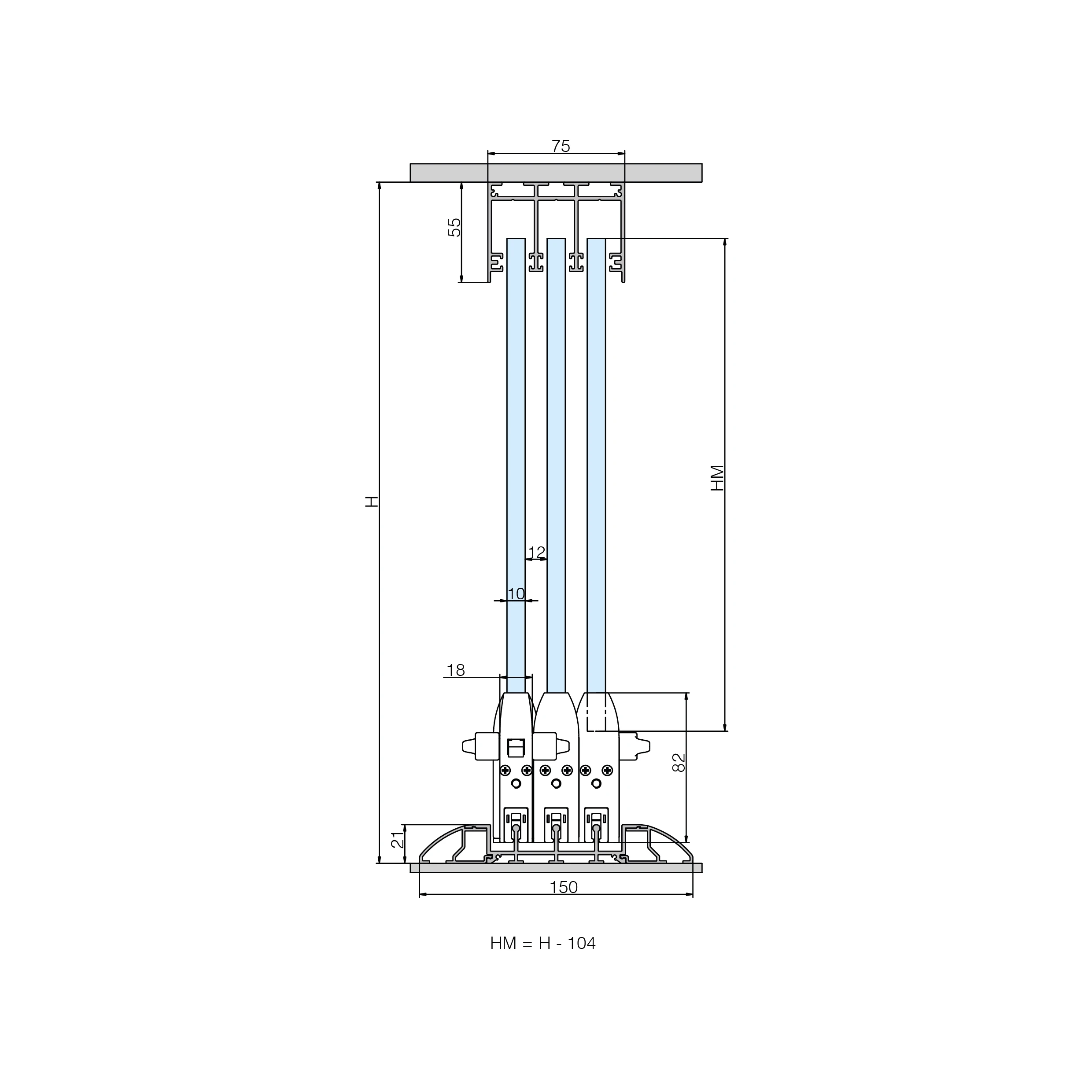

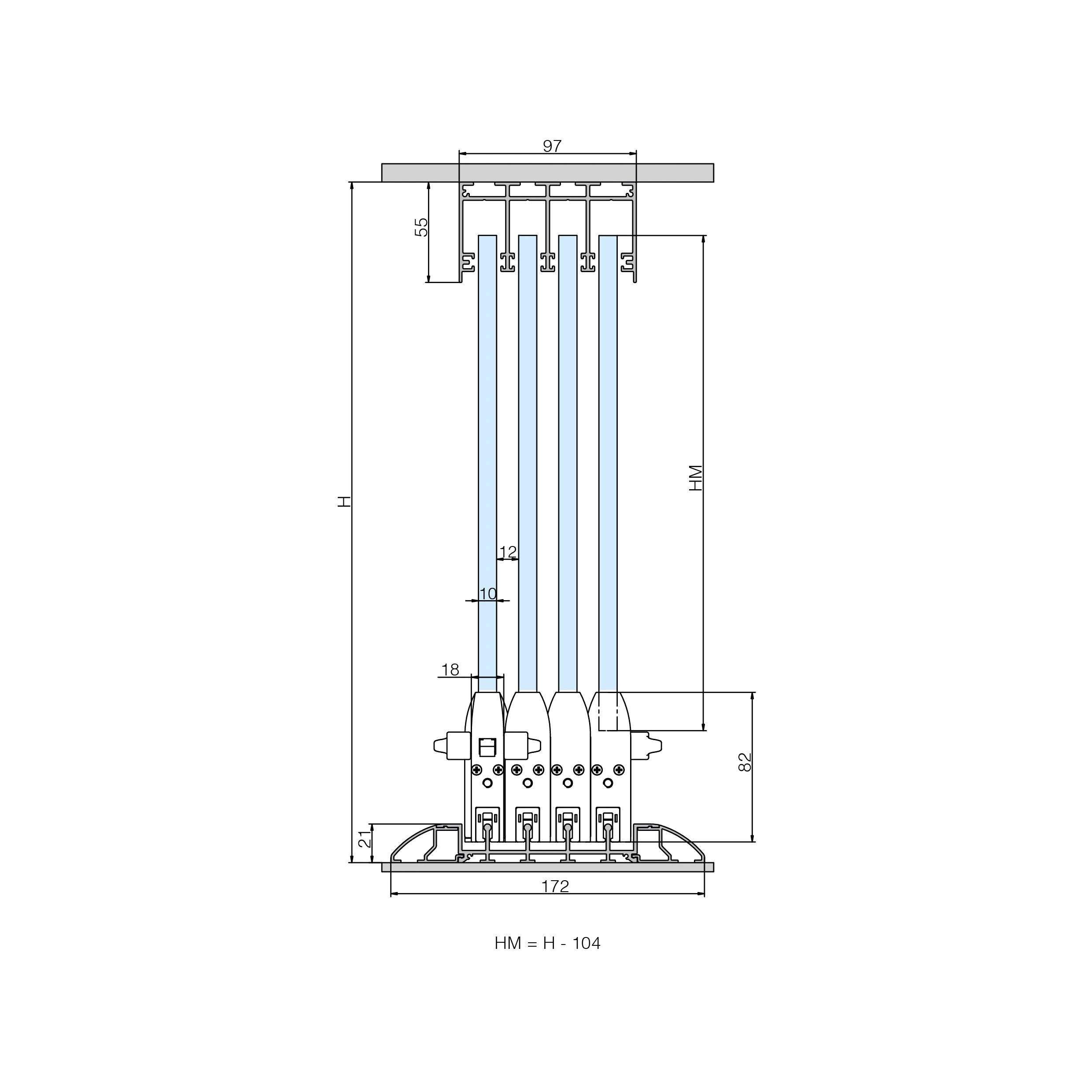

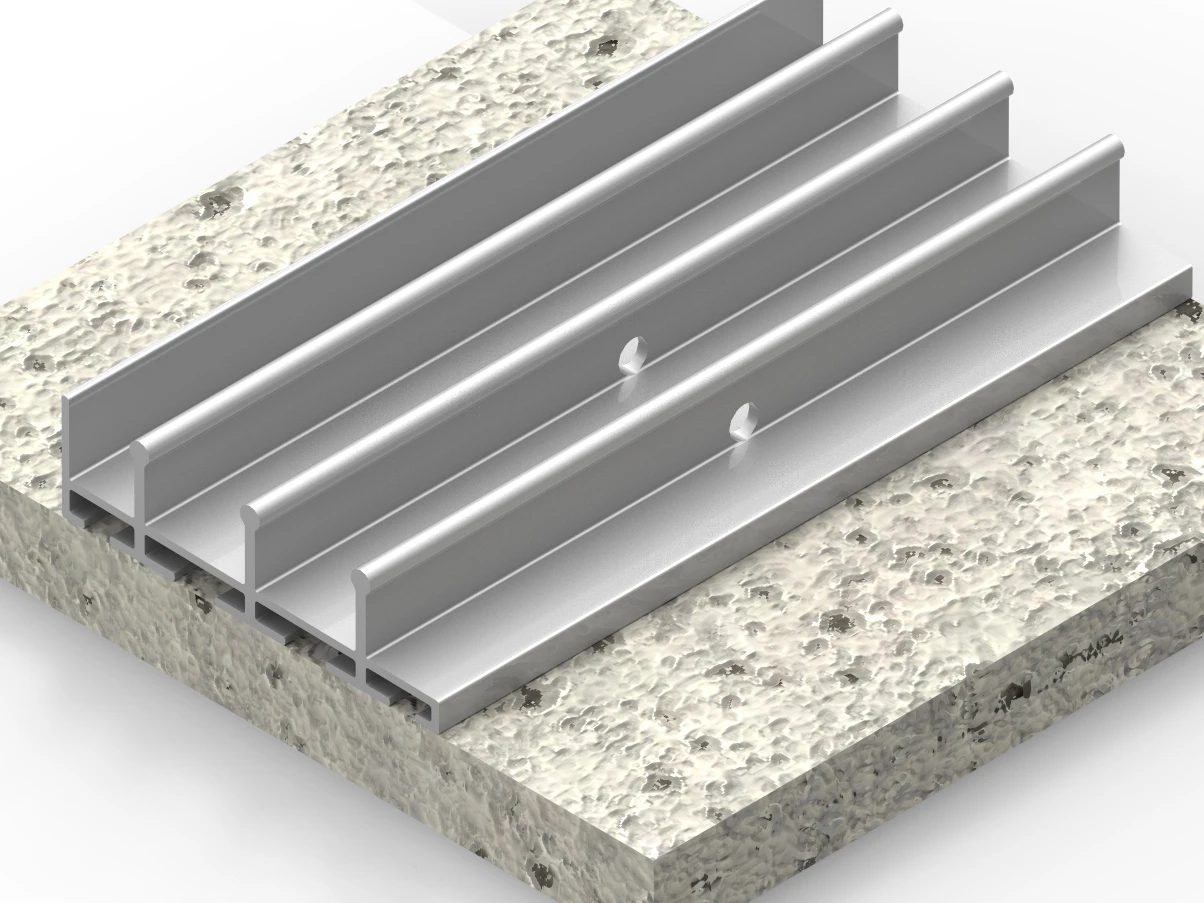

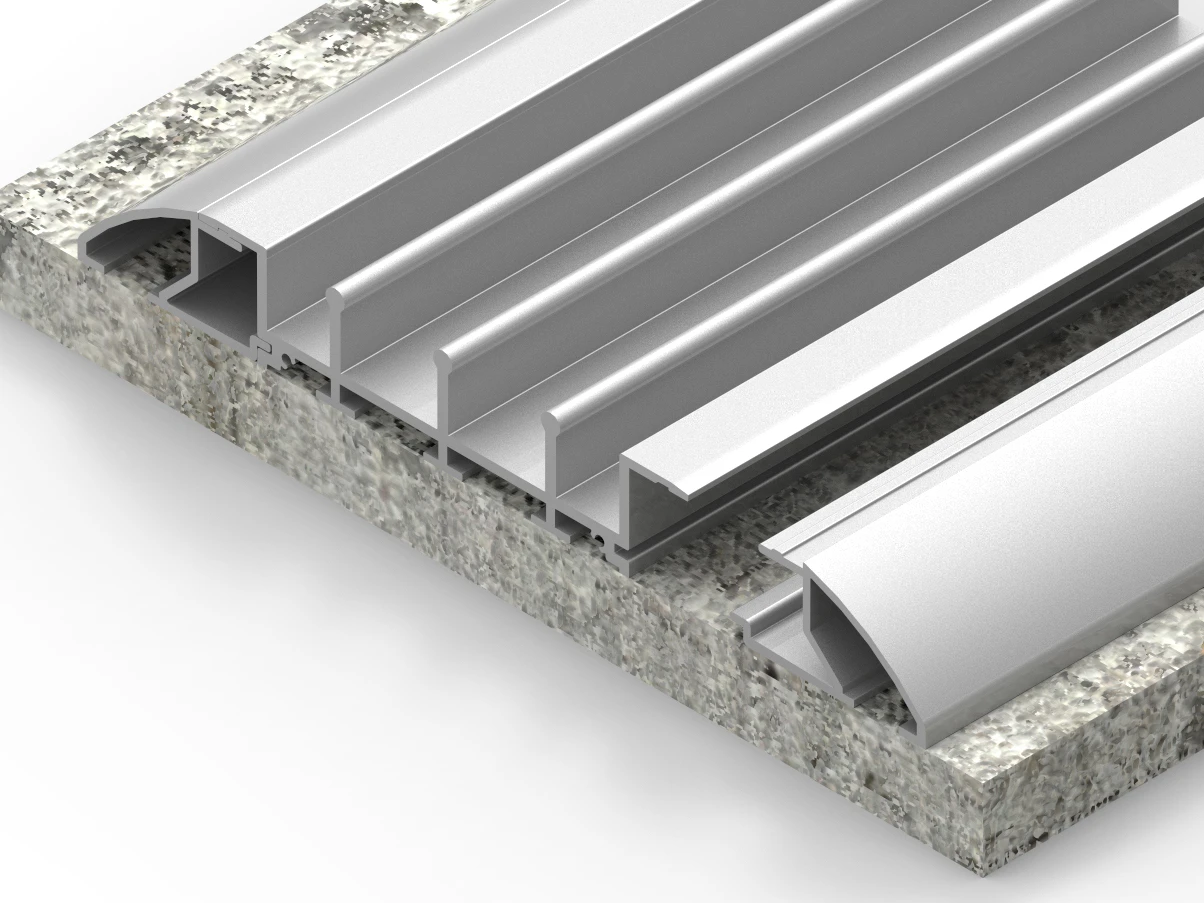

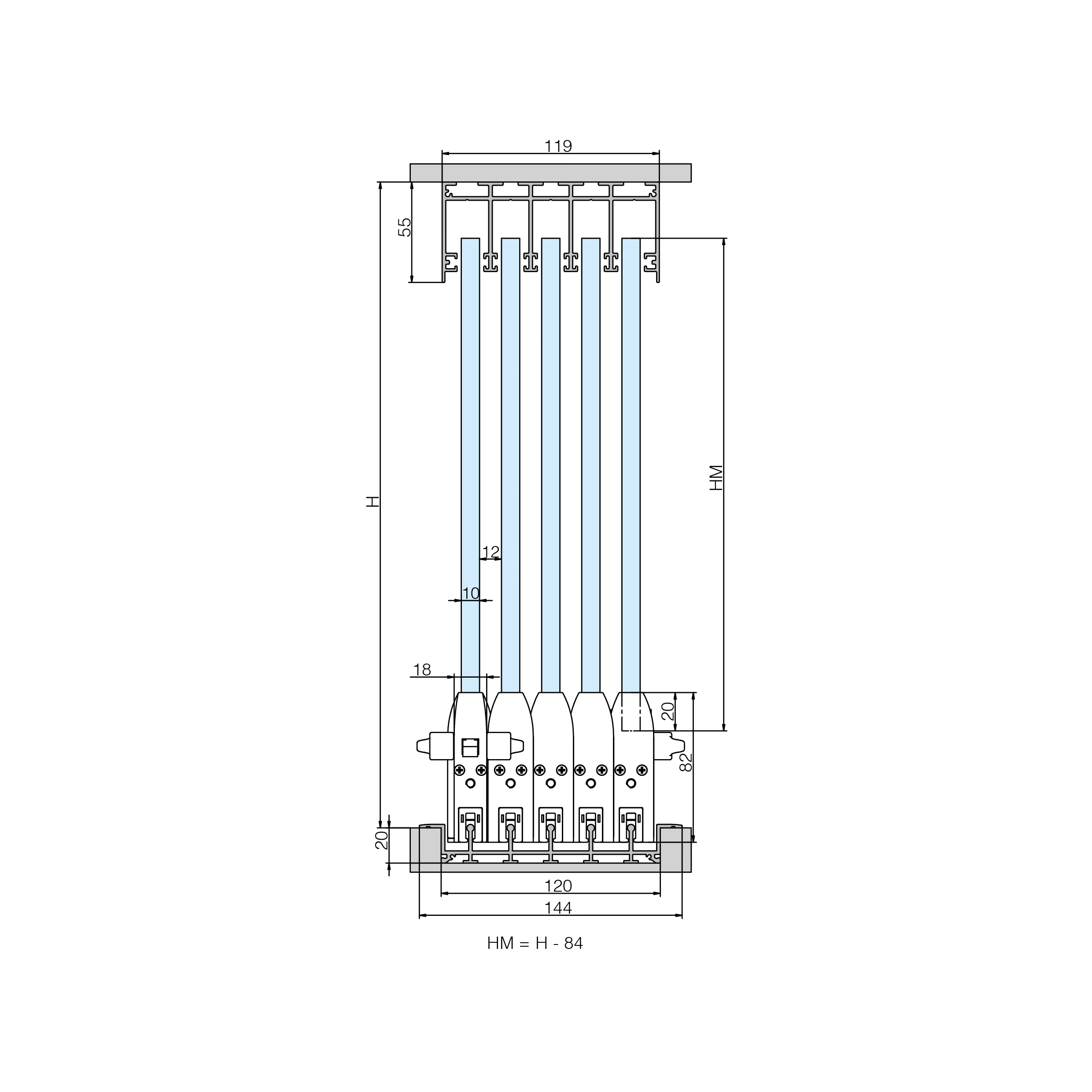

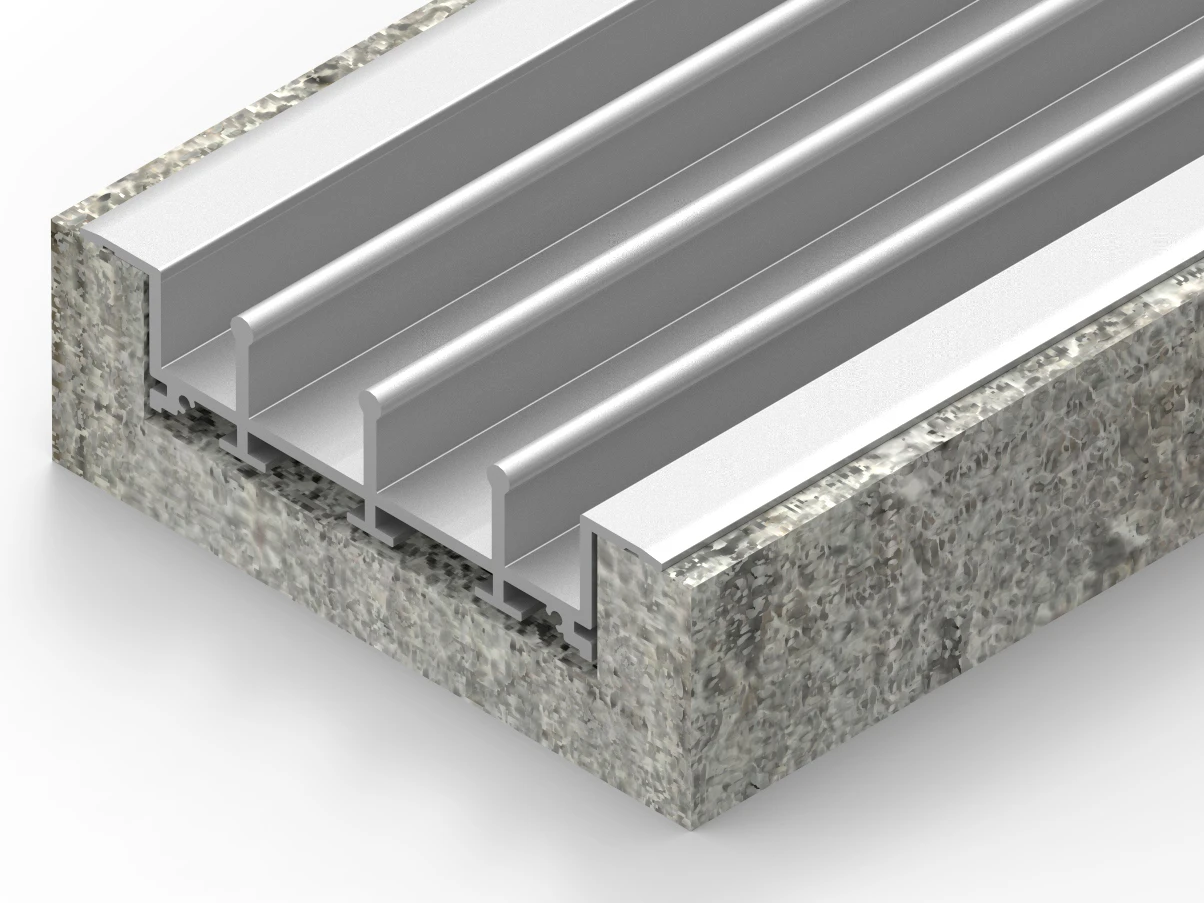

- Floor rail: Opt for a surface-mounted floor rail for a modern look, a recessed floor rail for seamless integration or a semi-circular floor rail for an elegant solution.
- Surface: Choose from different surface options to perfectly match the sliding glass wall to your aesthetic preferences

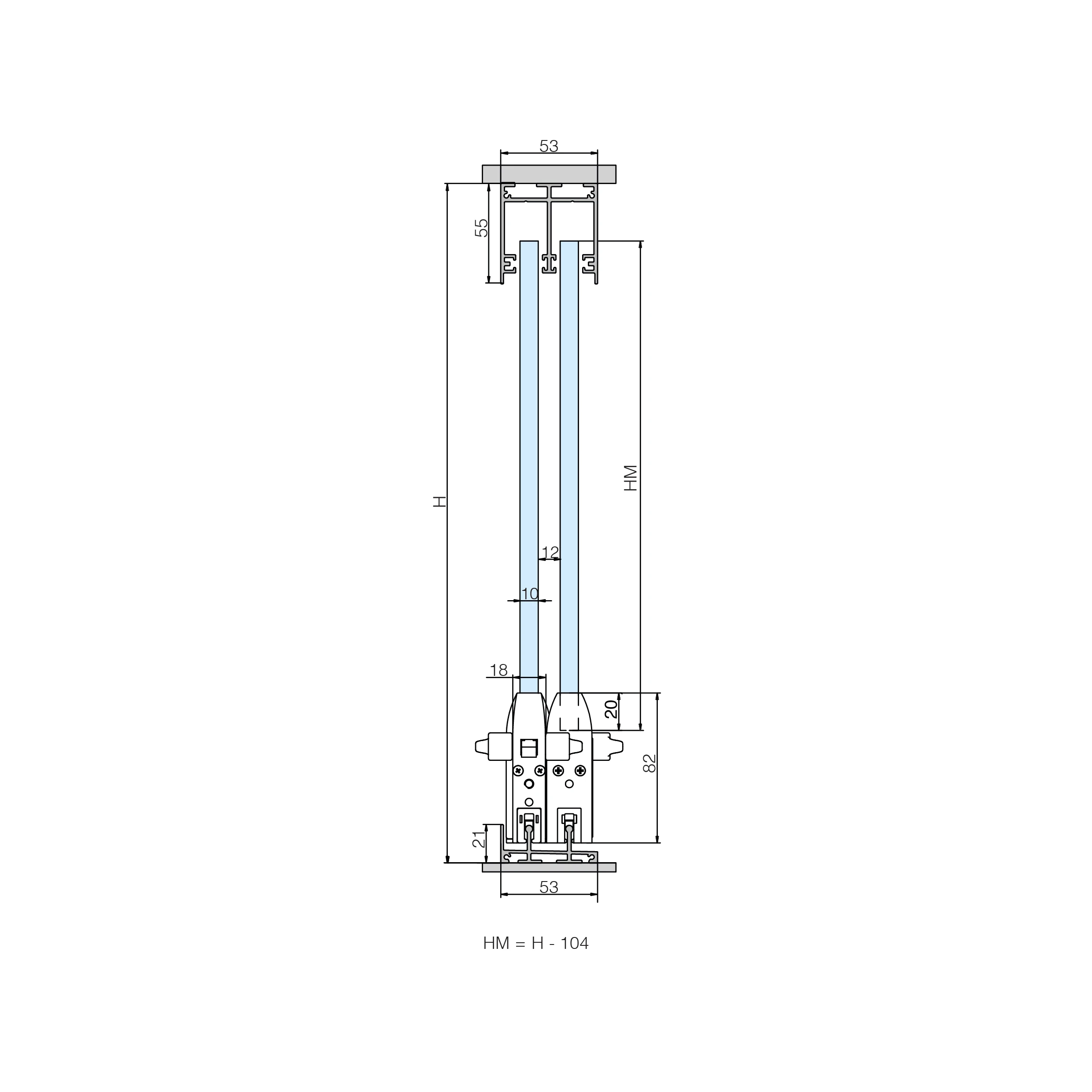

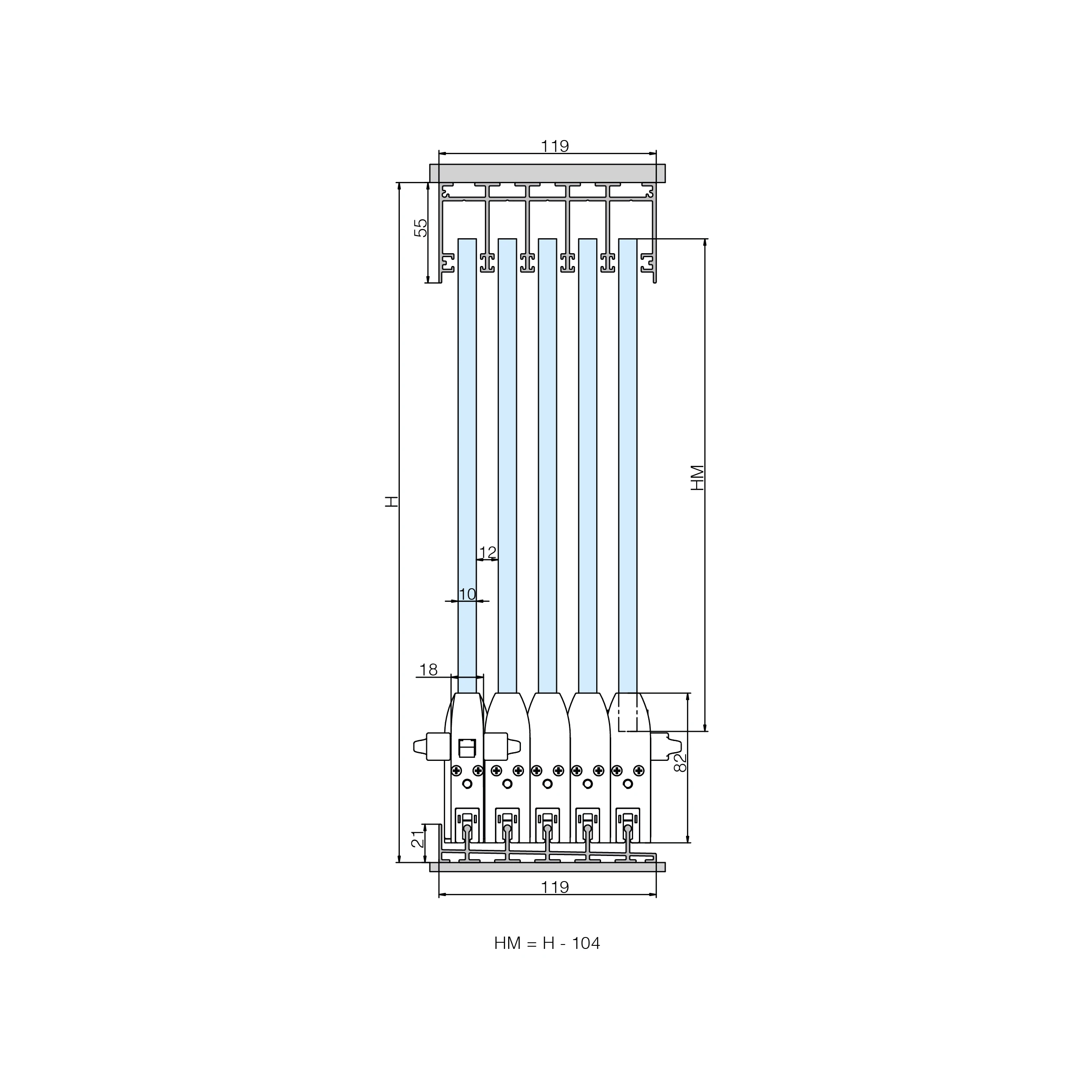

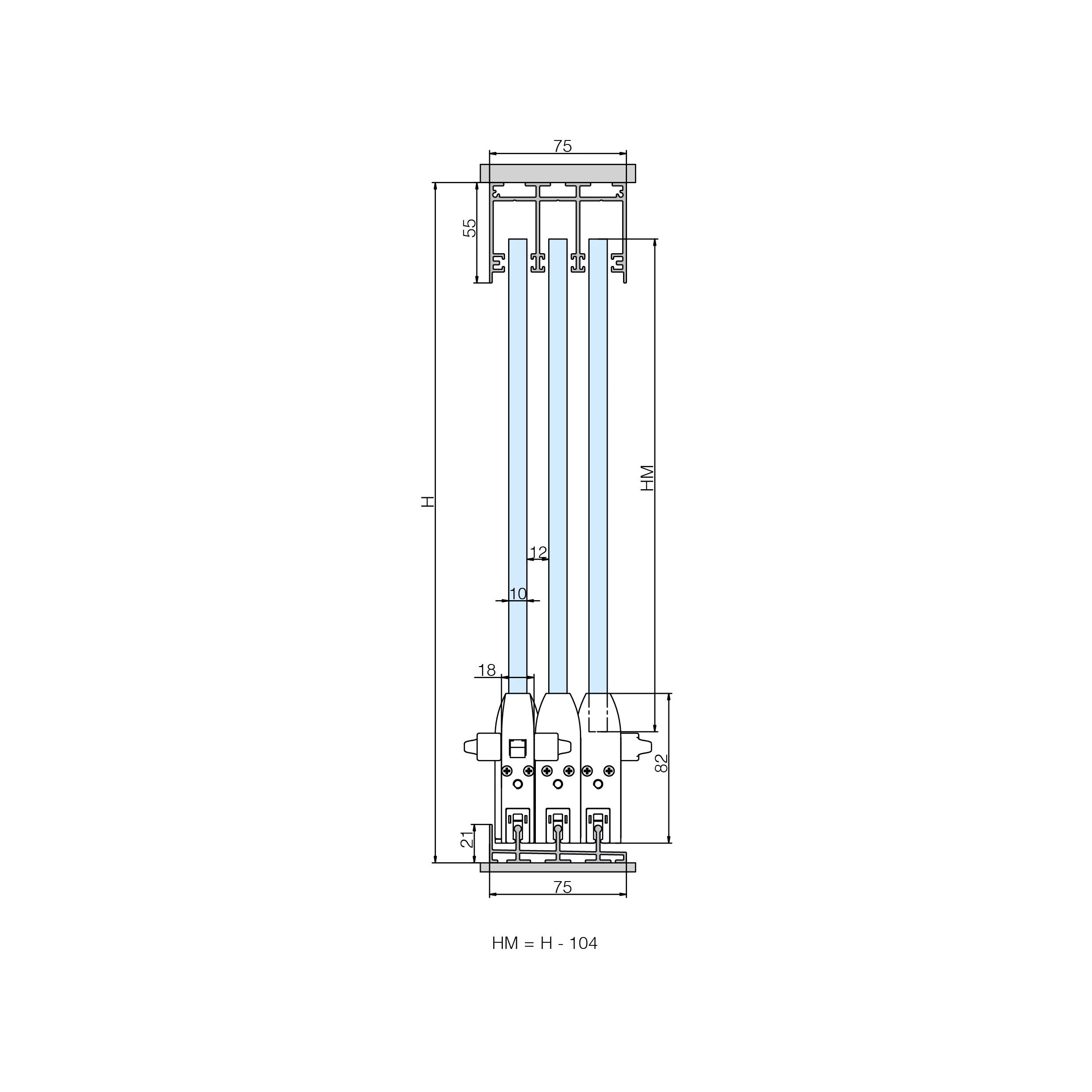

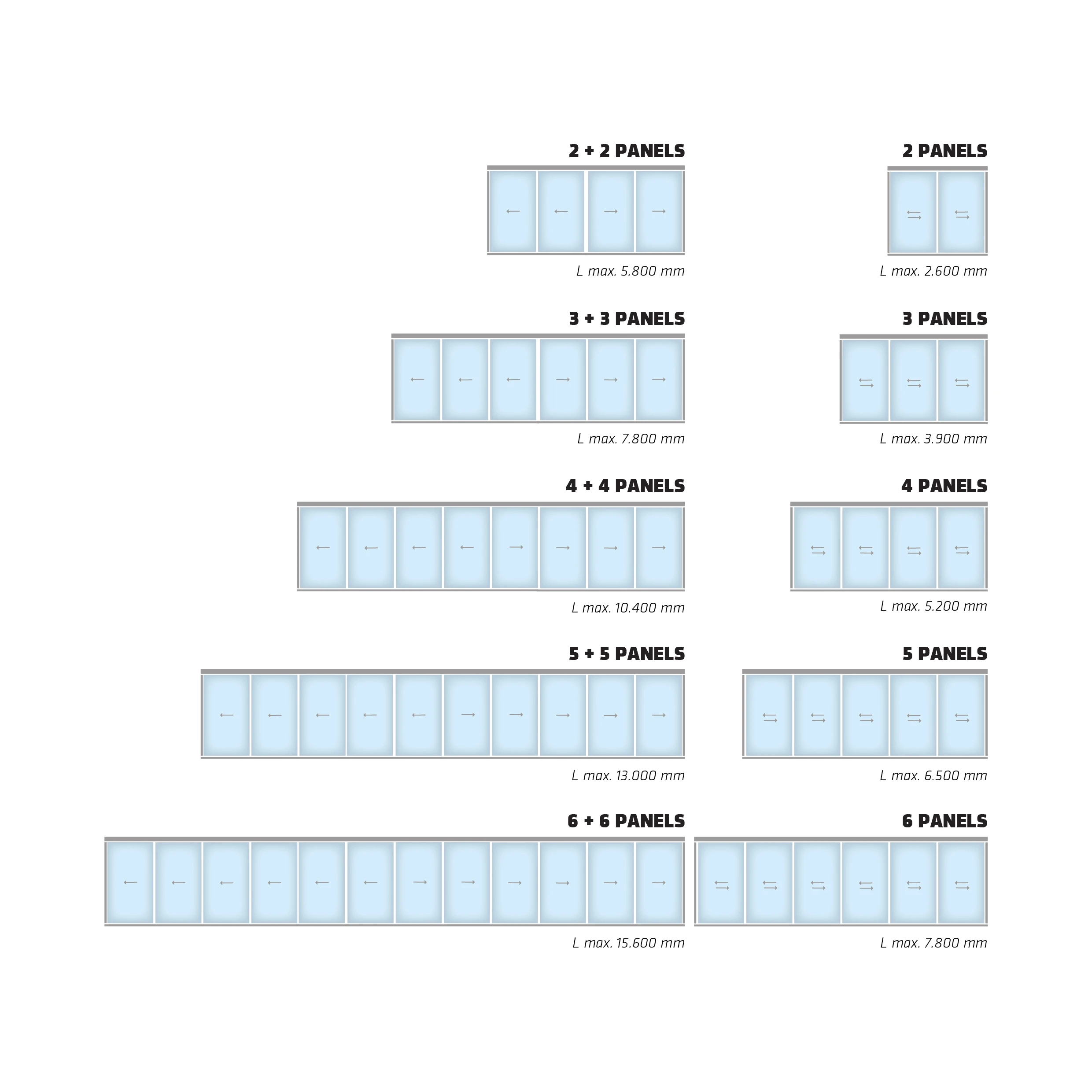

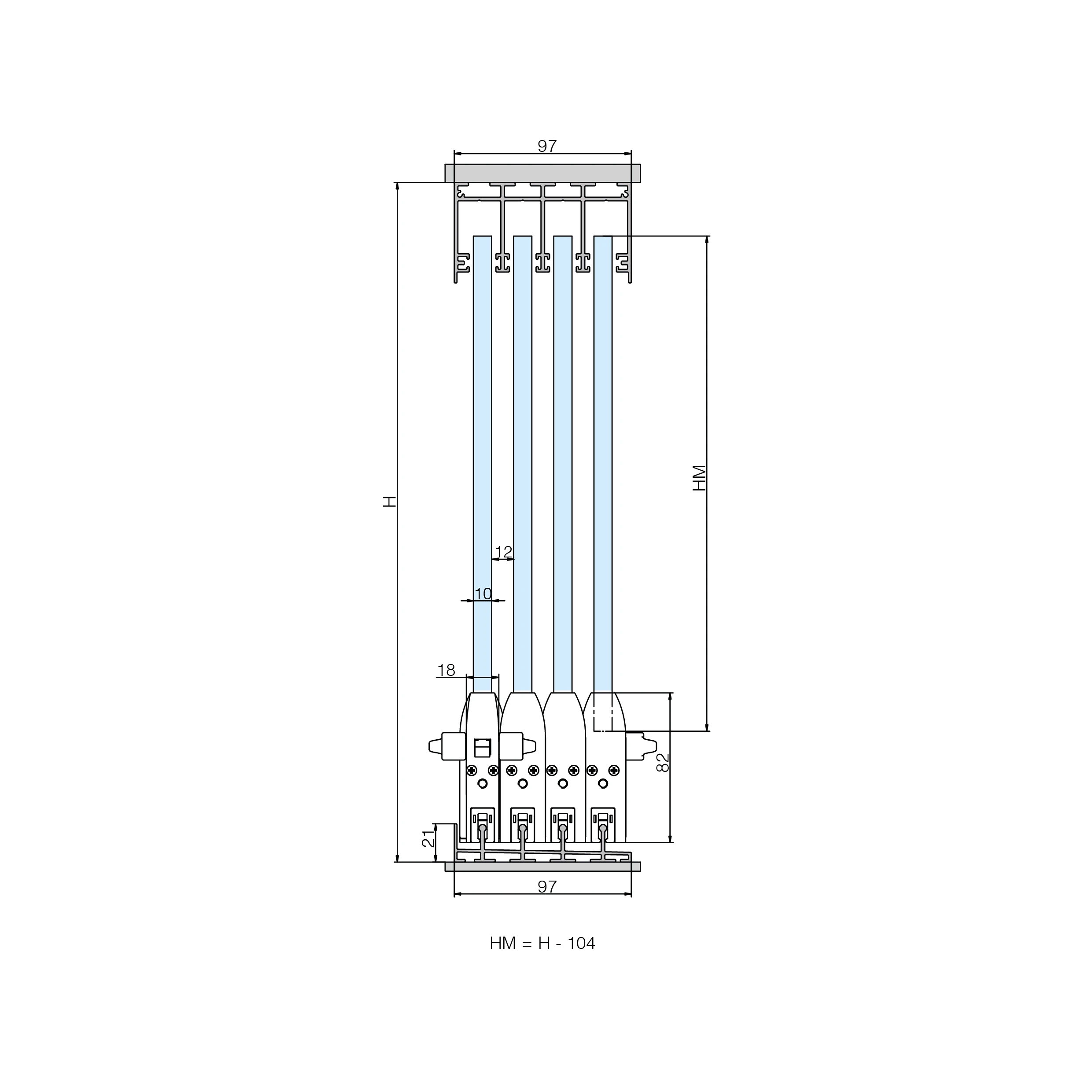

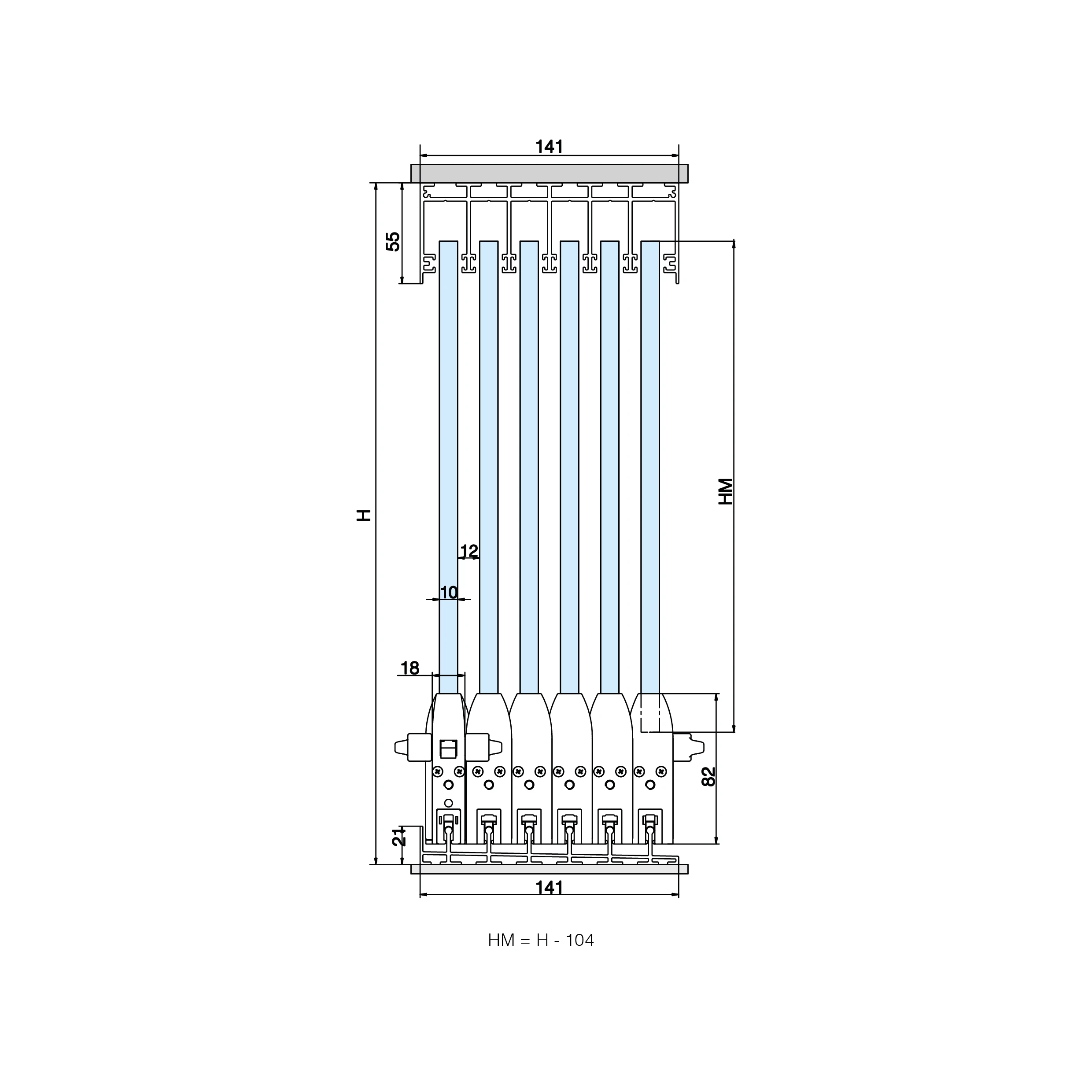

- Number of panels: Determine the number of panels in your sliding wall, from 2 to 5 panels, to create the desired opening space
- Dimensions: Specify the exact length and height dimensions to ensure the sliding glass wall fits perfectly in your room and provides optimum coverage.
- Locking: Choose between different locking options to customize the security of your sliding glass wall
- Corners: Decide whether you want corners in your construction and choose between 0 and 4 corners for the desired design.
- Door handle: Choose from a variety of door handle options to complete the overall look of your sliding glass wall and give it a personal touch.
With the terrace sliding glass wall configurator for Agape, customizing your outdoor areas has never been easier. Let your creativity run wild and design your dream terrace or balcony entirely according to your ideas and needs.
The advantages of the AGAPE sliding glass wall for patio at a glance:

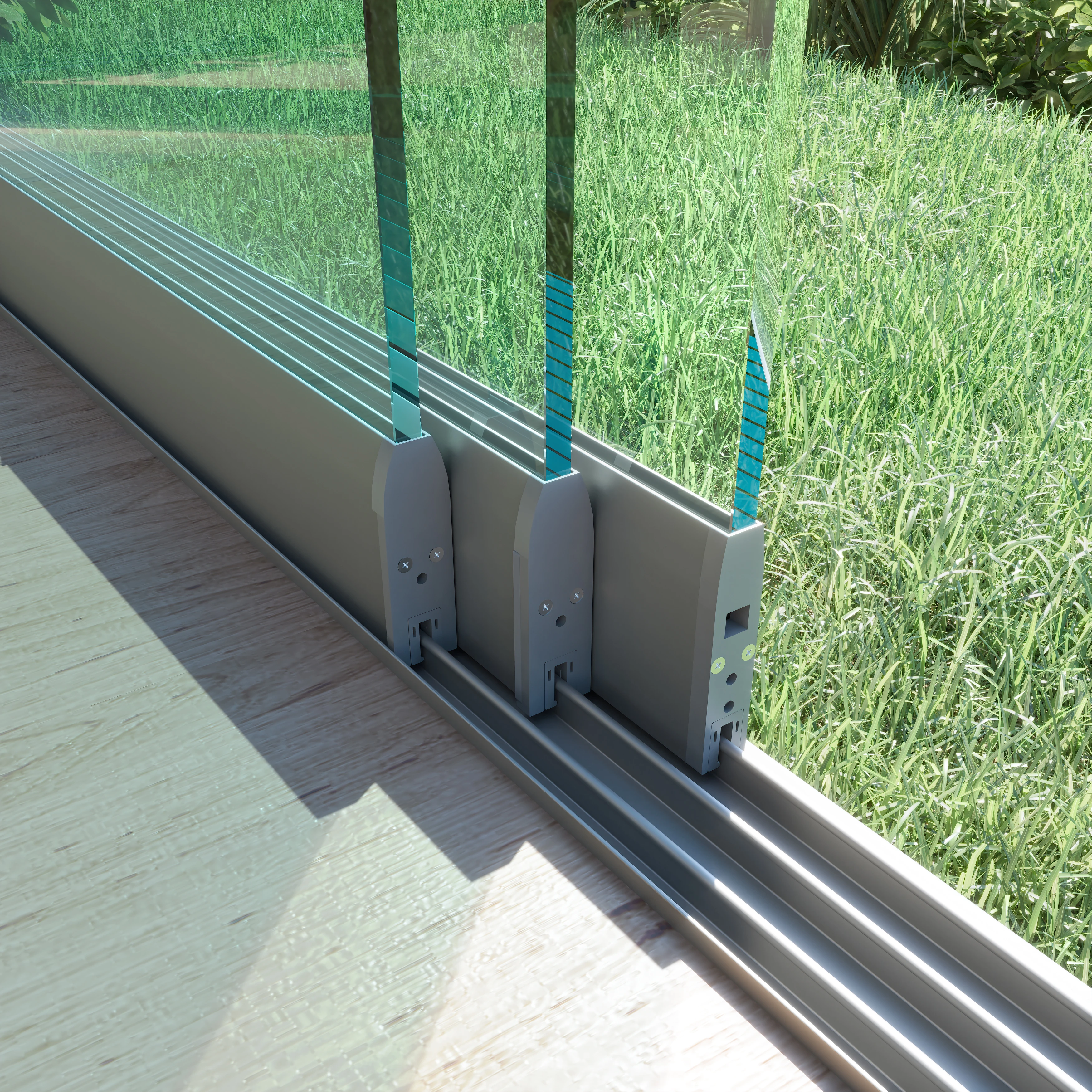

- Extremely low floor rail (21 mm) for effortless entry and exit
- 3 installation types: recessed, semi-recessed and flush-mounted
- No glass processing required
- max. sash height: 3000 mm
- max. sash width 1300 mm
- Both hands with door locking and side locking
- Outer leaves can be locked
- Flat bottom rail for easy cleaning
- Subsequent height adjustment ± 4 mm
- Customized production: only 12 mm overlap between the glass panes
- High load capacity up to 130 kg
- 6 standard colors
- Tested according to UNI EN 1932:2013 class 6

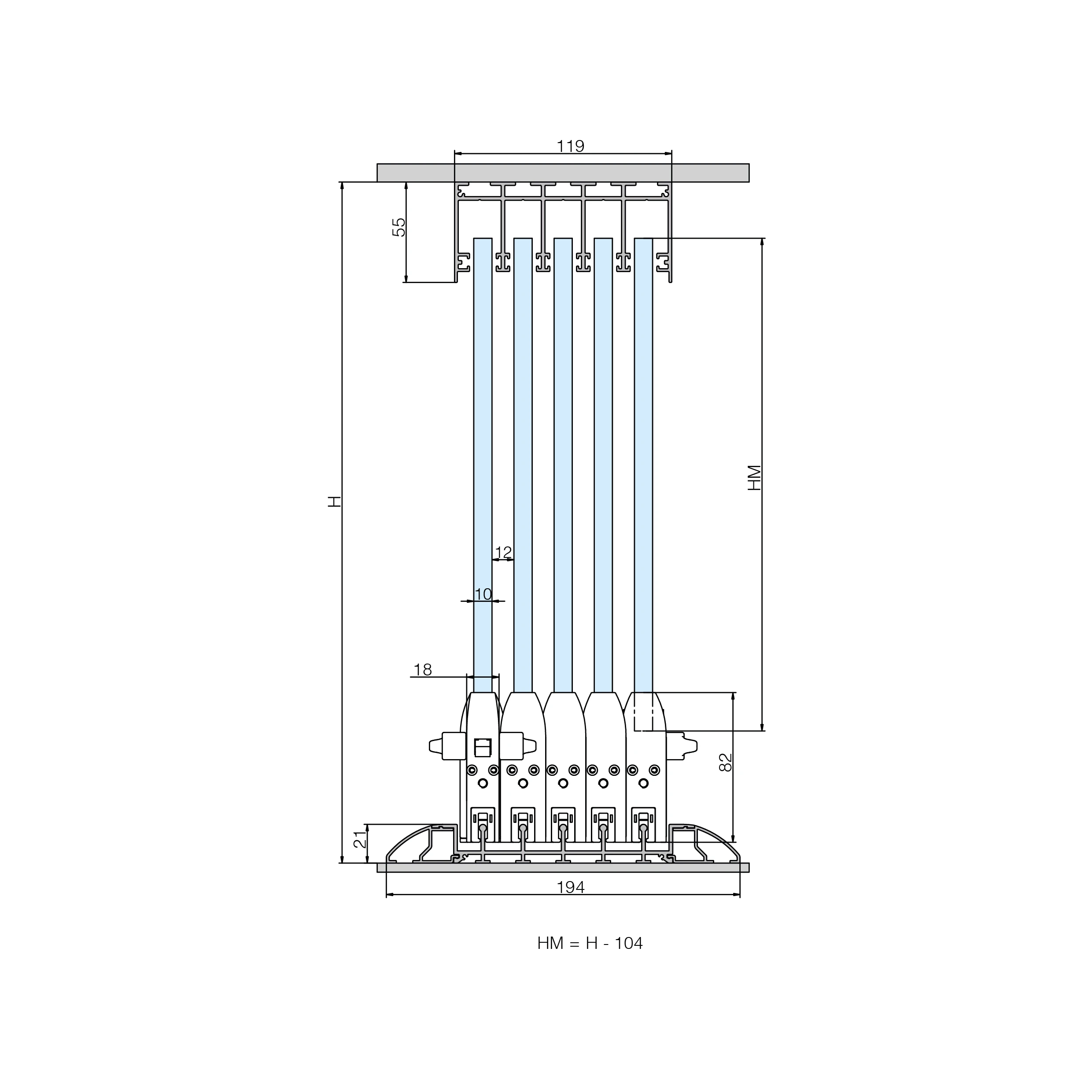

- Quarter circle profile as an option
Key Features
Intuitive configuration process
No glass processing necessary
Made to measure
Modern design
Tested according to UNI EN 1932:2013 Class 6
Downloads
| Sliding-glass-wall_AGAPE-2_manual_G-FITTINGS.pdf | Datasheet | 1.44 MB |
|---|
