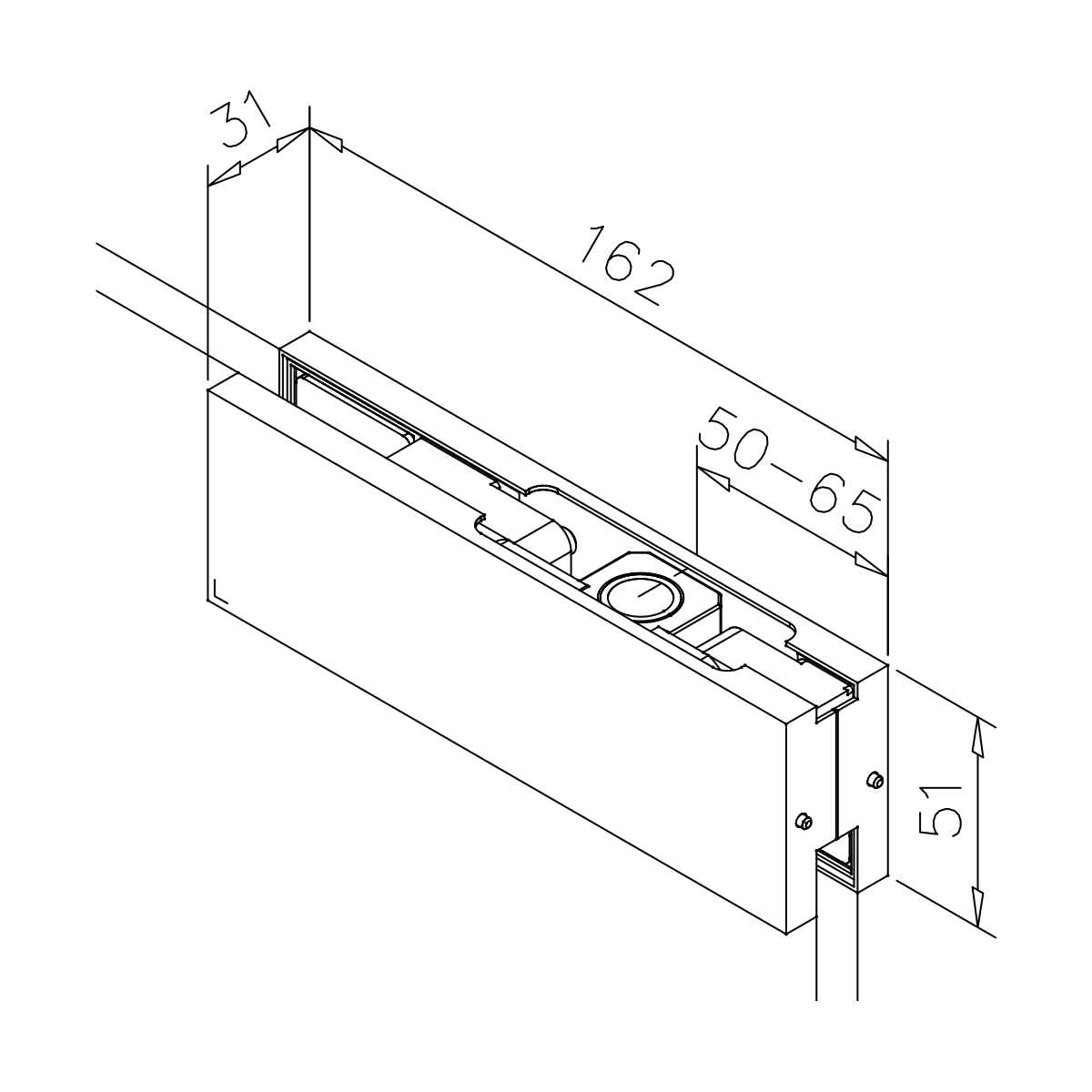

Top patch fitting Dara
Product number:
77452150000-12
See Prices
Don't see prices yet or want information about delivery?
Simply login with your G-Fittings account and you will see all the important information.
- Exclusive B2B Prices
- Fast & Easy Ordering Process
- Real-Time Availability & Stock Levels
- Purchase on Account for Business Customers
Do you need assembly instructions, CAD drawings, certificates or similar? You will find everything you need here on our website.
Description
The top pivot fitting for all-glass systems DARA offers a reliable solution for glass doors with a glass thickness of 10-12 mm. Its stainless steel design gives it a modern aesthetic and high resistance. With a maximum door width of 1100 mm and a maximum door weight of 100 kg, it is versatile in use. The flexible opening direction allows easy installation for doors with DIN left or DIN right.
Properties
| Finish: | Stainless steel design |
|---|---|
| Glass thickness: | 10 - 12 mm |
| Opening direction: | DIN left / DIN right |
| max. door weight: | 100 kg |
| max. door width: | 1100 mm |
Downloads
| 77-45-215x-000-xx_glasscutout_G-FITTINGS.pdf | Datasheet | 563.78 KB | |||
|---|---|---|---|---|---|
| 77-45-2150-000---Dara.dxf | CAD file | 4.41 MB | dxf |
1 variants available
