Door handle, double-sided Amaryllis
The AMARYLLIS double-sided door handle impresses with its modern design and the highest security standards. Its innovative bolt that closes into the floor ensures reliable door security. When locking, a bolt lowers into the floor sleeve, ensuring that the door is reliably secured.

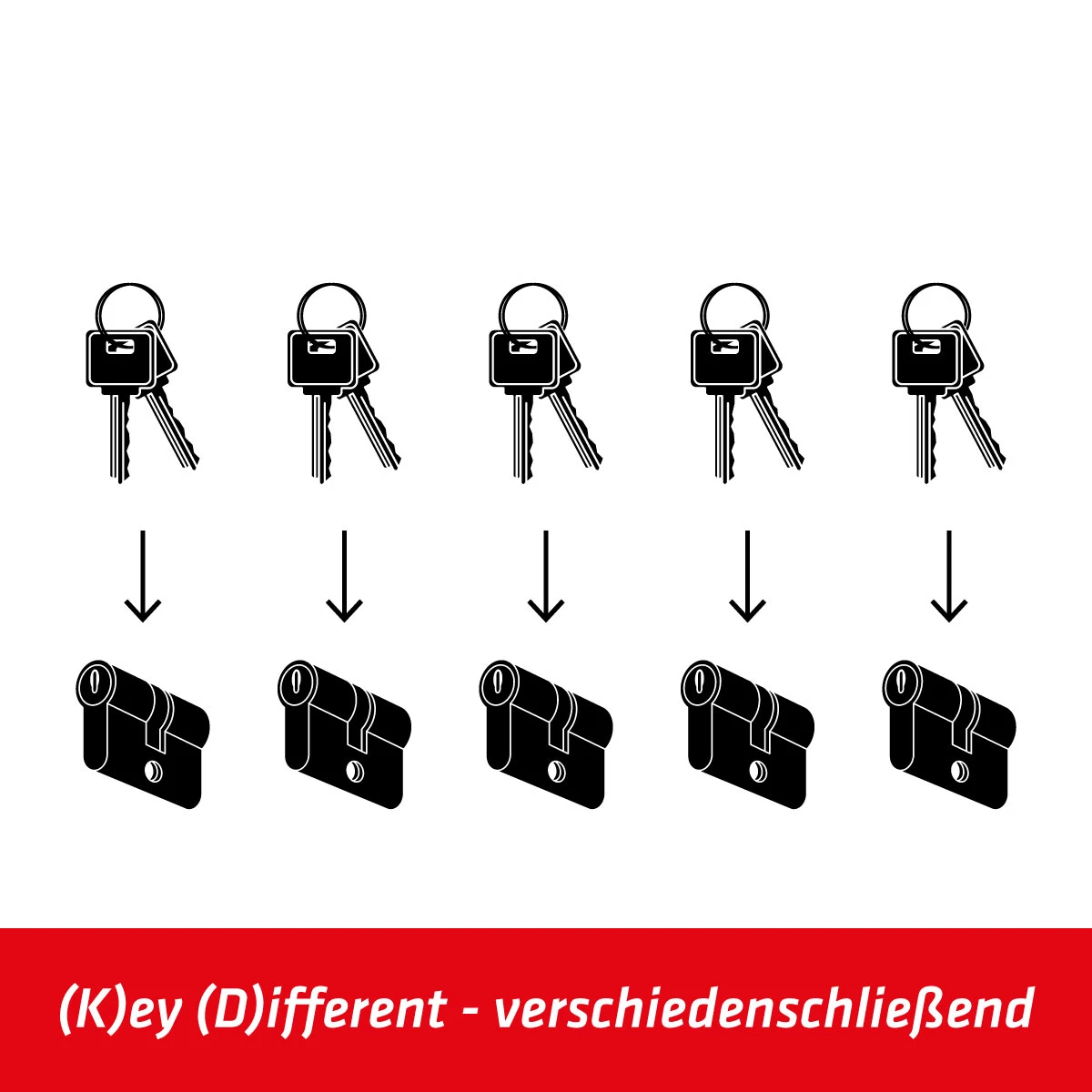

The door handle is equipped with a profile cylinder, which allows the door to be locked with either keyed alike or keyed differently. This offers you maximum flexibility and security according to your individual needs.

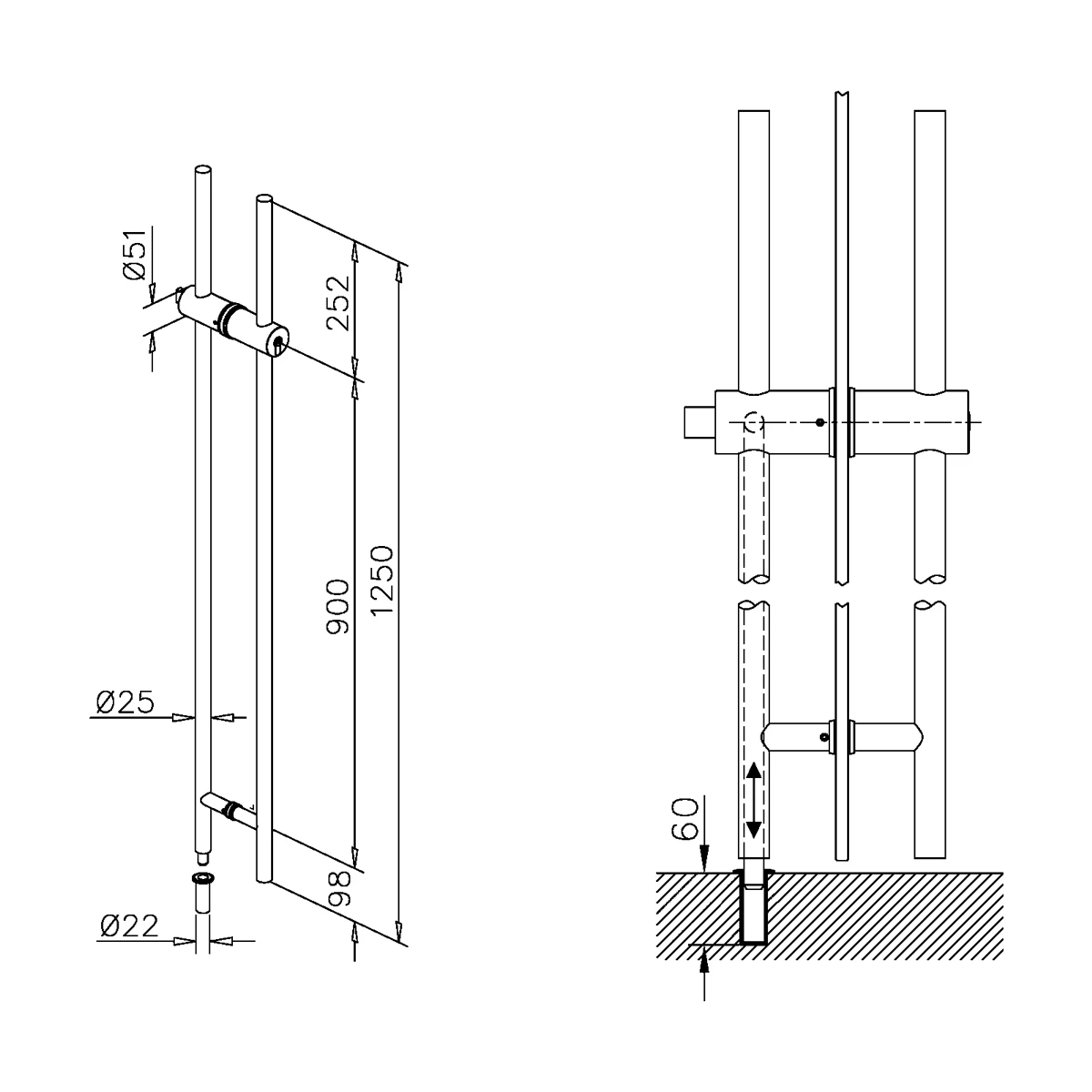

Available in an elegant stainless steel design or modern black, the door handle blends harmoniously into any ambience. With an impressive overall length of 1250 mm and a diameter of 25 mm, it not only offers an attractive appearance, but also convenient handling.
The AMARYLLIS door handle is specially designed for glass thicknesses of 8 - 10 mm and impresses with its flat end caps at the top and bottom. Made from high-quality V2A stainless steel, it is robust and durable, ideal for mounting on glass doors.
Main features:
- Door handle with bolt that locks into the floor
- Profile cylinder for keyed alike or keyed different locks
- Available in stainless steel design or black design
- Total length: 1250 mm, diameter: 25 mm
- Suitable for glass thicknesses from 8 - 10 mm
- Made from high-quality V2A stainless steel
| Bor distance in mm: | 900 |
|---|---|
| Bore in mm: | Ø26 / Ø14 |
| Depth in mm: | 230 |
| Diameter Ø: | 25,4 mm (1") |
| Door thickness in mm: | 8-10 |
| Endcap: | flat |
| Finish: | Stainless steel design |
| Length in mm: | 1250 |
| Material: | Stainless steel 304 (V2A) |
| Mounting on: | Glass |
| 77-47-0203-025-xx_datasheet_G-FITTINGS.pdf | Datasheet | 202.31 KB |
|---|
