Glass door hinge Akasha
Don't see prices yet or want information about delivery?
Simply login with your G-Fittings account and you will see all the important information.
- Exclusive B2B Prices
- Fast & Easy Ordering Process
- Real-Time Availability & Stock Levels
- Purchase on Account for Business Customers
Do you need assembly instructions, CAD drawings, certificates or similar? You will find everything you need here on our website.

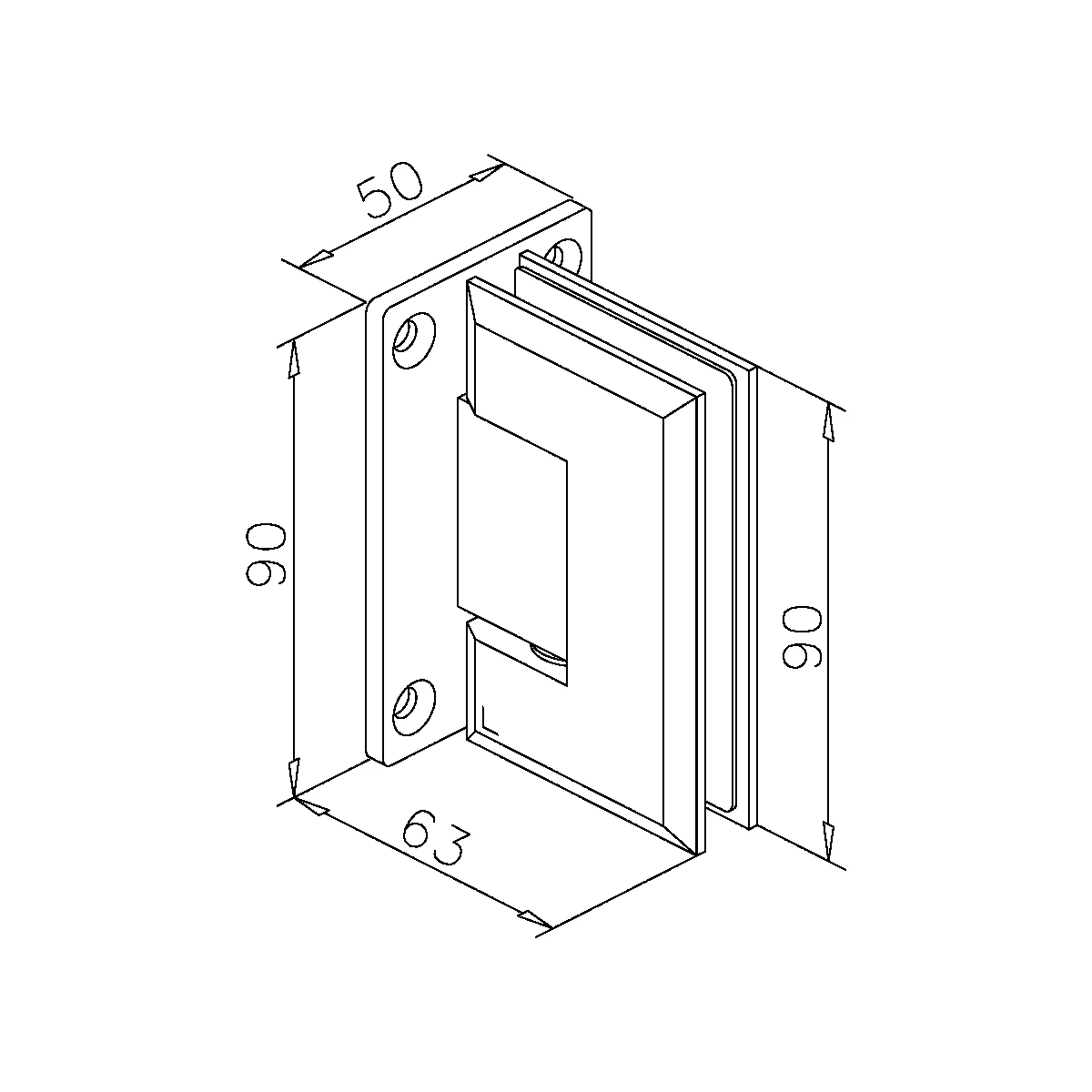

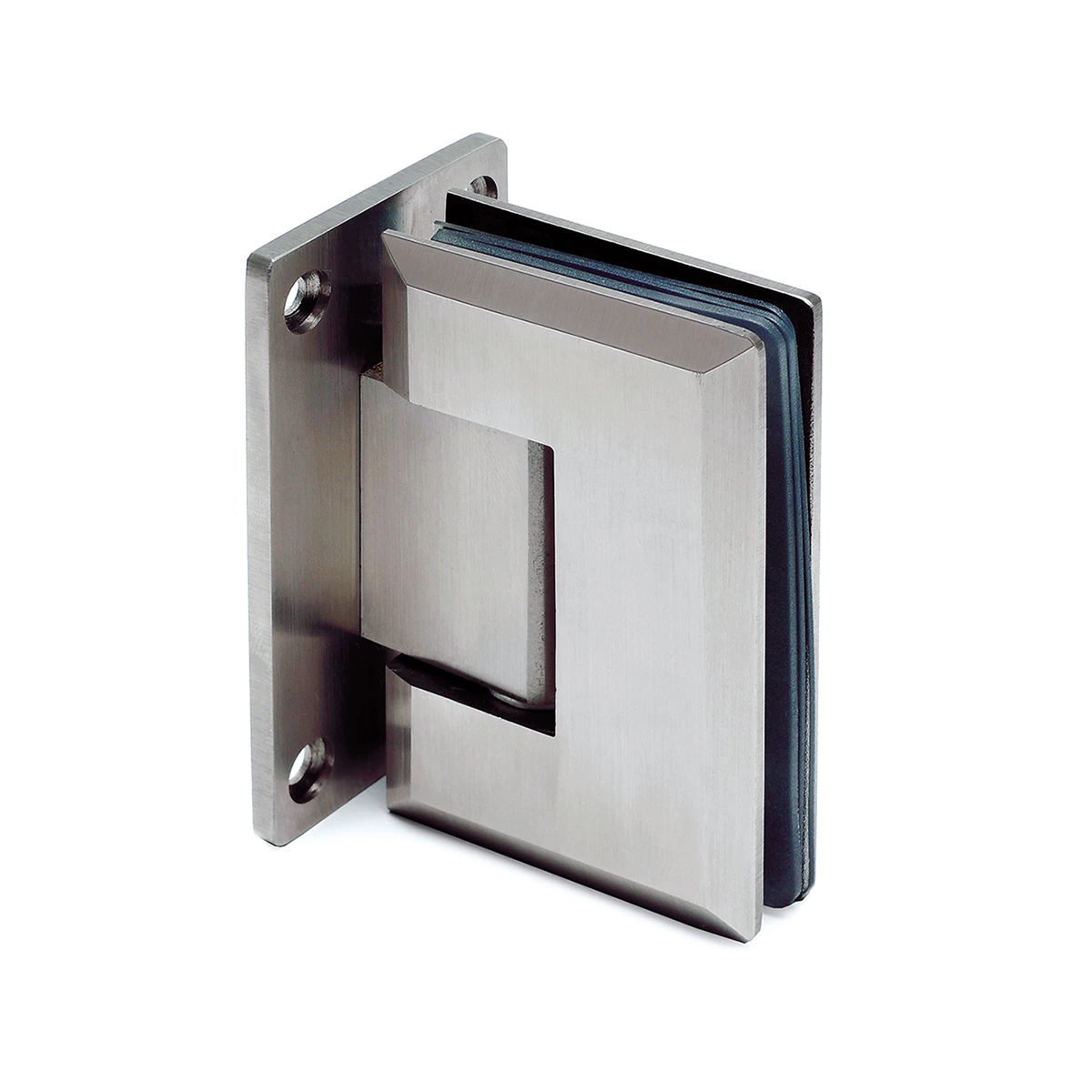

The AKASHA glass door hinge impresses with its high-quality workmanship and versatility. It enables an opening of up to 180° and can be tilted inwards and outwards by 90° on both sides - ideal for swing doors, shower cubicles or glass systems with a sophisticated design. The hinge is suitable for both all-glass and glass/wall installations and can therefore be adapted to a wide range of structural conditions. With its clear shape and elegant surfaces in stainless steel, chrome, matt brass or black, it blends harmoniously into any environment.

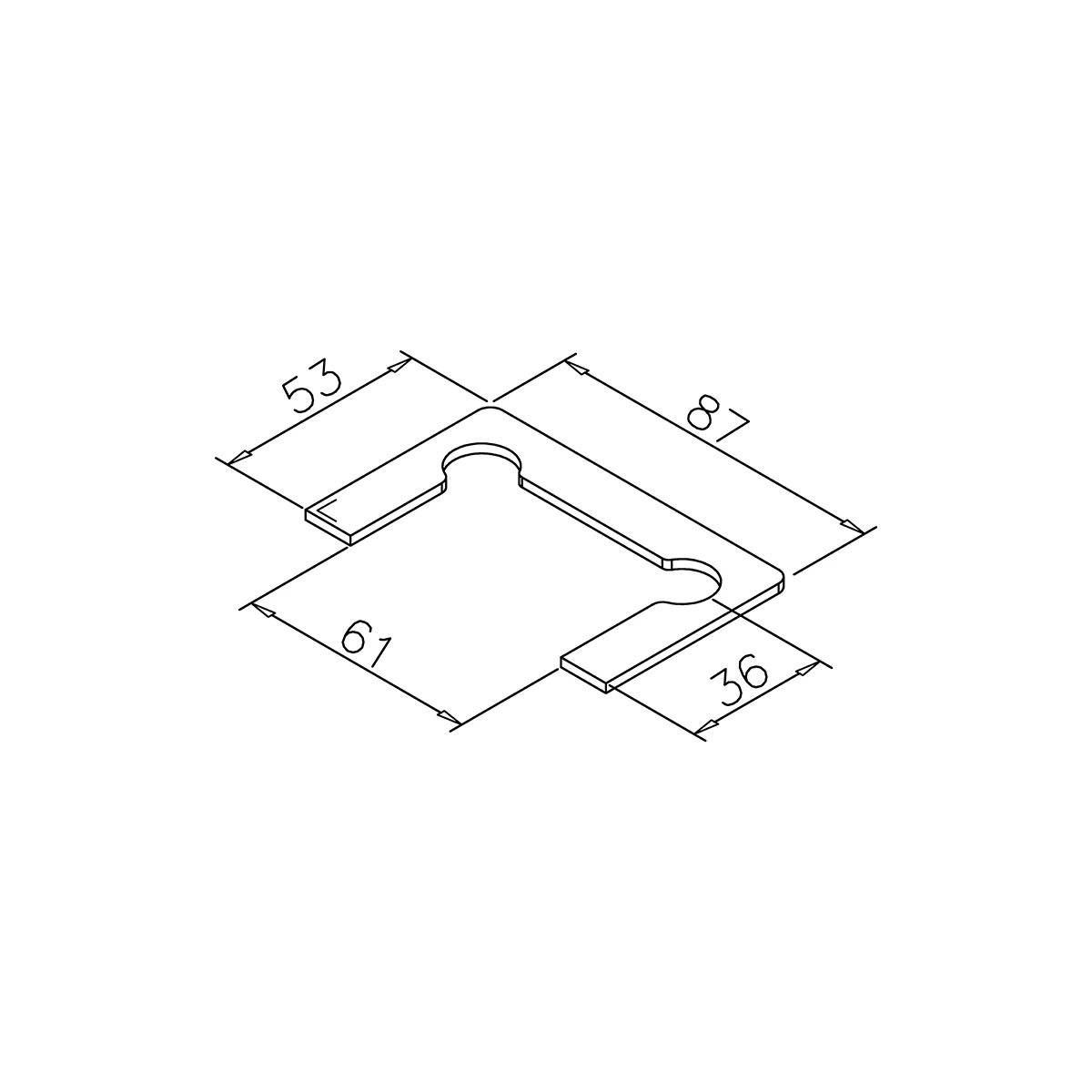

A set of EPDM rubber inserts is included in the scope of delivery and reliably protects the glass from damage. A set of SBR rubber inserts is recommended for use in saunas - this is available separately as an accessory.
| Djustable zero position: | yes |
|---|---|
| Door leaf material: | Glass |
| Door type: | Swinging |
| Finish: | Stainless steel design |
| Flush mounted: | no |
| Glasabzug links: | 9 mm |
| Glasabzug oben: | 6 mm |
| Glasabzug rechts: | 4,5 mm |
| Glasabzug unten: | 7 mm |
| Glasausschnitt: | Micky Maus |
| Glass cut outs: | yes |
| Glasstärke: | 8-12 mm |
| Hydraulic: | no |
| Material: | Stainless steel 304 (V2A) |
| Mounting type: | Glass / Wall |
| Opening direction: | DIN left / DIN right |
| Powder coating possible: | yes |
| Quantity of glass cut-outs: | 1 |
| Self-closing: | yes |
| Shape: | rectangular |
| max. door weight: | 45 kg |
| max. door width: | 900 mm |
| 77-41-3012-090_datasheet_G-FITTINGS.pdf | Datasheet | 411.62 KB | |||
|---|---|---|---|---|---|
| 41-3012-090-21.dxf | CAD file | 4.39 MB | dxf |
- 90° angle for glass wall mounting
- Suitable for 8 -12 mm GLas
- Concealed screw connection with cover caps
- Stainless steel, brass, chrome and black design
- Suitable for AKASHA, JELSE and TATUM
- Protection from pressure points & friction
- EPDM for indoor & wet areas
- SBR for saunas & warm and humid rooms
- Durable, elastic & easy to clean
- Stable glass to glass connection
- High-quality V2A stainless steel
- For 8 -12 mm glass
- Various surface designs
- Durable & easy to clean
- 90° connection of 2 glass plates
- Made of V2A stainless steel
- For glass thicknesses 8 - 12mm
- Various surface designs
- Precise 180° angle
- Integrated cover cap
- High-quality V2A stainless steel
- Versatile designs
- For glass thicknesses 8 - 12 mm
- 90° and 180° T connection
- High-quality V2A stainless steel
- For glass thicknesses from 8 - 12 mm
- Various surfaces
- Fixation with M6 screw connection
