Handrail bracket Hanne

Filter
Preview Product number Surface Ø Diameter
Product information "Handrail bracket Hanne"

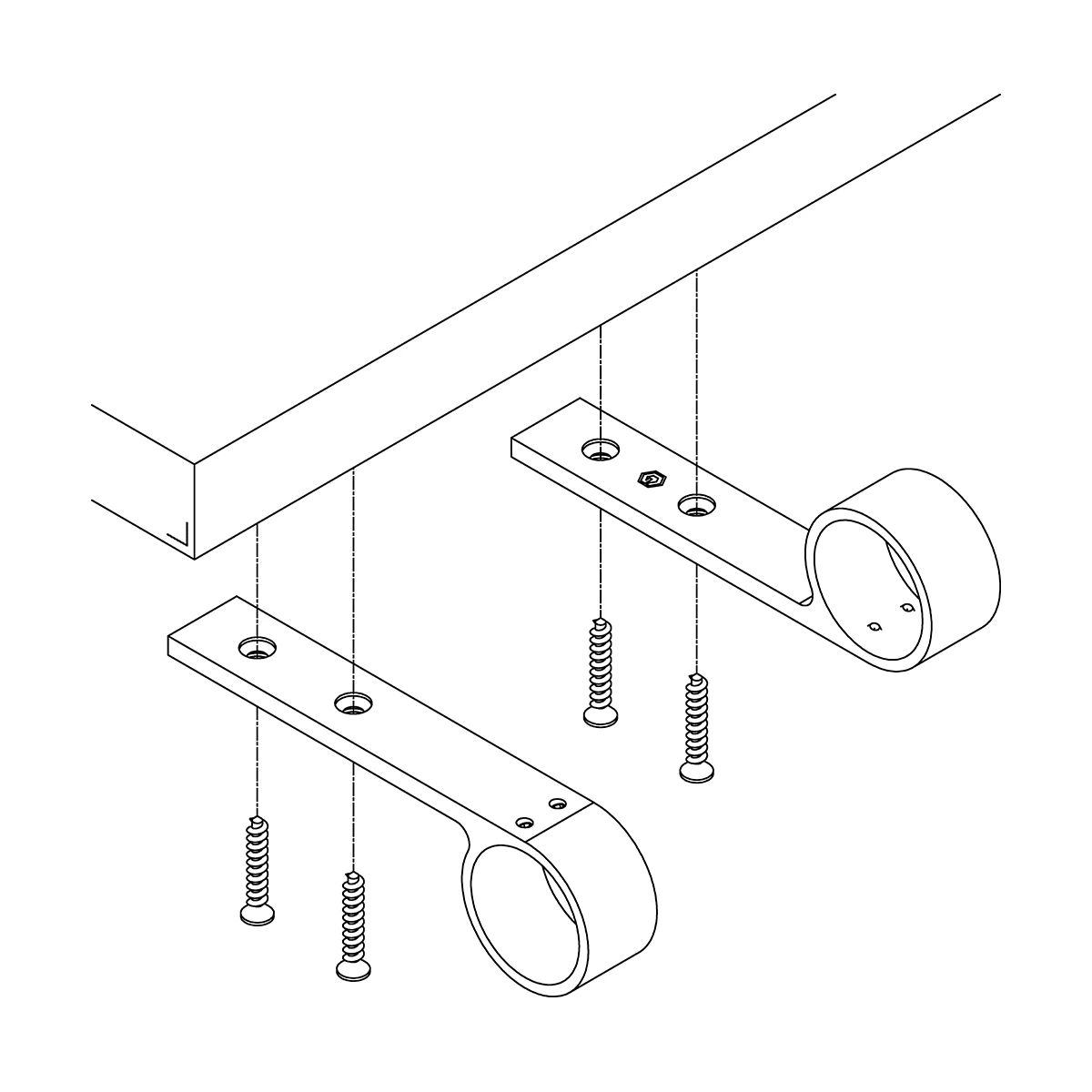

The handrail support Hanne can be mounted on or under the counter so that the handrail runs directly along the counter. By mounting under the counter, the mounting point can be well hidden and the handrail can fit snugly against the edge of the counter.

The direction of the tube holder can be freely selected to be upwards or downwards.

Properties "Handrail bracket Hanne"
Adjustable: no

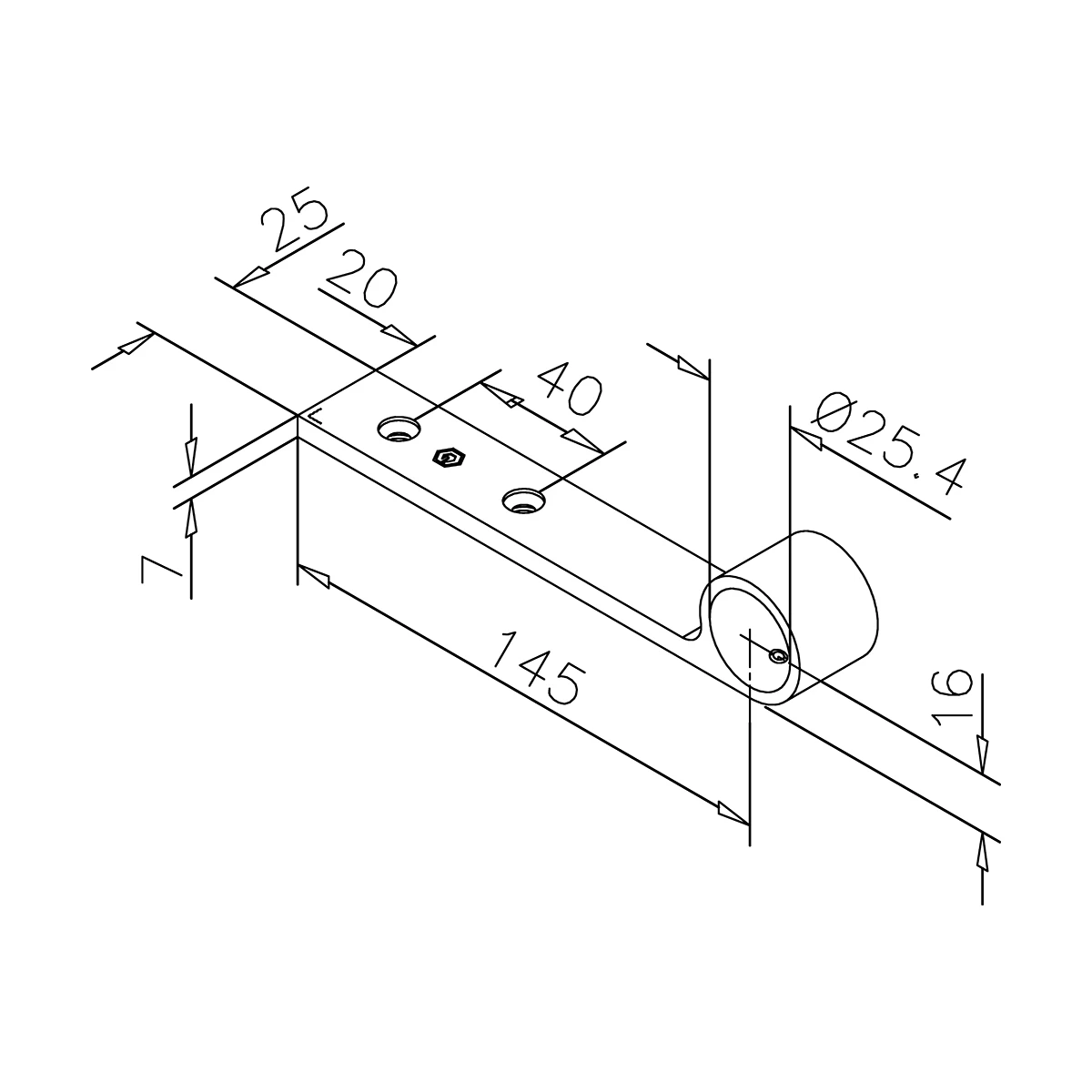

Depth in mm: 161 mm
Diameter Ø: 25,4 mm (1")
Finish: Stainless steel design
Height in mm: 32 mm
Material: Stainless steel 304 (V2A)
Mounting on: Counter
Product set: No, Yes
File Category Size Filetype
xx-0105-025-xx.dxf CAD file 746.96 KB dxf
